Planet GS-4210-24T2S User Manual

User’s Manual of GS-4210-16T2S_24T2S_16P2S_24P2S_48T4S
174
4.7 Multicast
This section has the following items:
 Properties Configures multicast properties.
 IGMP Snooping Configures IGMP snooping settings.
 IGMP Snooping Statistics Display the IGMP snooping statistics.
 MLD Snooping Configures MLD snooping settings.
 MLD Snooping Statistics Display the MLD snooping statistics.

Multicast Throttling
Setting
Configures multicast throttling setting.
 Multicast Filter Configures multicast filter.
4.7.1 Properties
This page provides multicast properties related configuration.
The multicast Properties and Information screens in Figure 4-7-1 and Figure 4-7-2 appear.

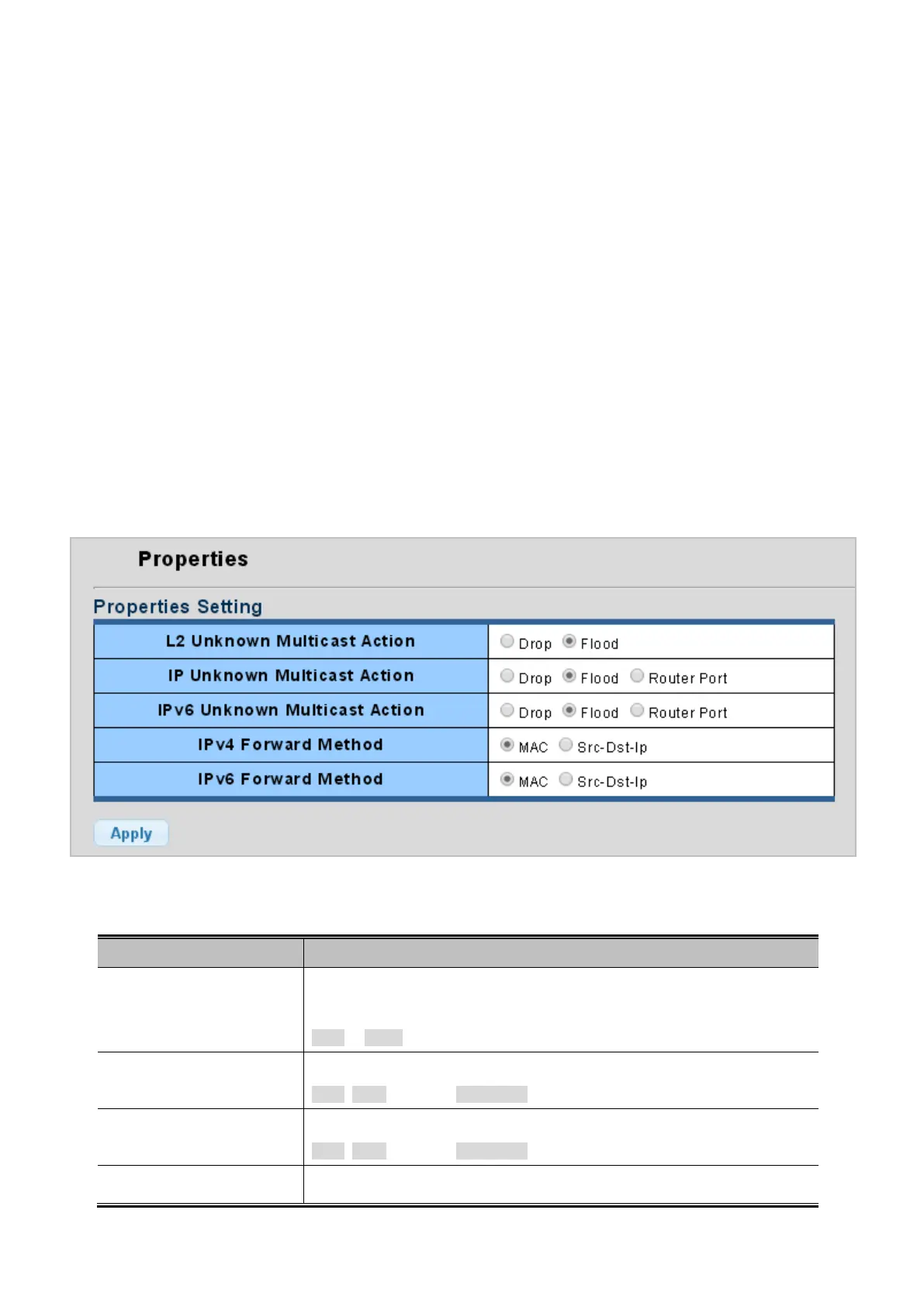

Figure 4-7-1: Properties Setting Page Screenshot
The page includes the following fields:
Object Description
• L2 Unknow Multicast
Action
Action for L2 unknown multicast traffic:
Options are:
Drop or flood.
• IP Unknown Multicast
Action
Action for IP unknown multicast traffic:
Drop, flood or send to router port.
• IPv6 Unknown Multicast
Action
Action for IP unknown IPv6 multicast traffic:
Drop, flood or send to router port.
• IPv4 Forward Method
Configure the IPv4 multicast fordward method.

Planet GS-4210-24T2S Specifications

General

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	24
10G support	No
Networking standards	IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Security algorithms	HTTPS, SNMP
Throughput	38.6 Mpps
Jumbo frames	9216
MAC address table	8000 entries
Supported network protocols	IPv4/IPv6 IP-based ACL / MAC-based ACL
Stackable	-
Form factor	1U
Certification	FCC Part 15 Class A, CE
Product color	Blue
LED indicators	Link, Power, System
Housing material	Metal
Input current	0.8 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	14 W
Heat dissipation	47 BTU/h
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	207 mm
Width	445 mm
Height	45 mm
Weight	2100 g
