Planet GS-4210-24T2S User Manual

User’s Manual of GS-4210-16T2S_24T2S_16P2S_24P2S_48T4S
311
Button
: Click to add MAC-Based ACE setting.

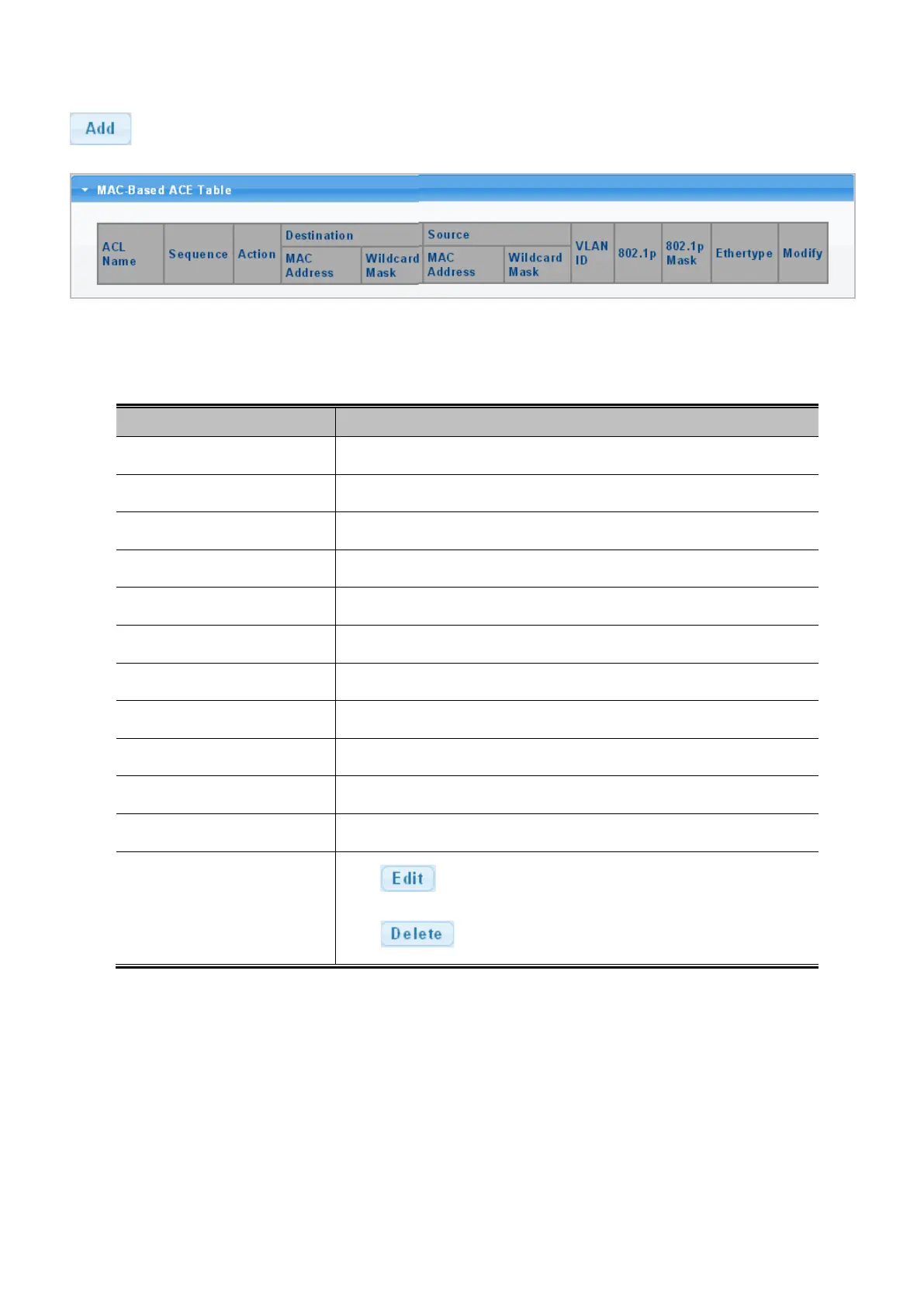

Figure 4-10-4: MAC-Based ACE Table Page Screenshot
The page includes the following fields:
Object Description
• ACL Name
Display the current ACL name.
• Sequence
Display the current sequence.
• Action
Display the current action.
• Destination MAC Address
Display the current destination MAC address.
• Destination Wildcard Mask
Display the current destination wildcard mask.
• Source MAC Address
Display the current source MAC address.
• Source Wildcard Mask
Display the current source wildcard mask.
• VLAN ID
Display the current VLAN ID.
• 802.1p
Display the current 802.1p value.
• 802.1p Mask
Display the current 802.1p mask value.
• Ethertype
Display the current Ethernet type.
• Modify
Click
to edit MAC-Based ACE parameter.
Click to delete MAC-Based ACE entry.

Planet GS-4210-24T2S Specifications

General

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	24
10G support	No
Networking standards	IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Security algorithms	HTTPS, SNMP
Throughput	38.6 Mpps
Jumbo frames	9216
MAC address table	8000 entries
Supported network protocols	IPv4/IPv6 IP-based ACL / MAC-based ACL
Stackable	-
Form factor	1U
Certification	FCC Part 15 Class A, CE
Product color	Blue
LED indicators	Link, Power, System
Housing material	Metal
Input current	0.8 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	14 W
Heat dissipation	47 BTU/h
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	207 mm
Width	445 mm
Height	45 mm
Weight	2100 g
