User’s Manual of MGSW-28240F
222
4.9.11 QoS Control List
This page shows the QoS Control List (QCL), which is made up of the QCEs. Each row describes a QCE that is defined. The
maximum number of QCEs is 256 on each switch.
Click on the lowest plus sign to add a new QCE to the list.
The QoS Control List screen in Figure 4-9-13 appears.

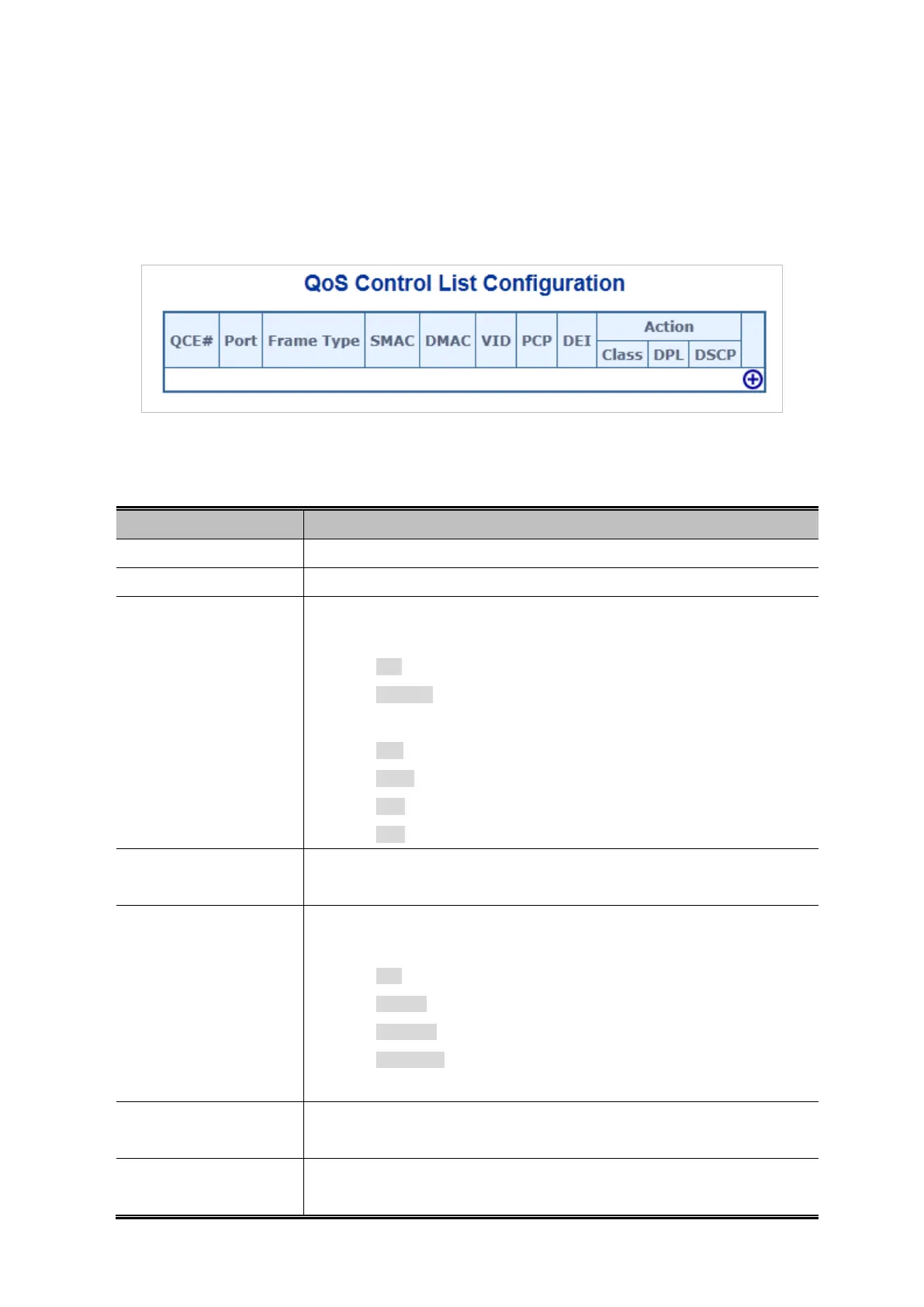

Figure 4-9-13: QoS Control List Configuration Page Screenshot
The page includes the following fields:
Object Description
• QCE#
Indicates the index of QCE.
• Port
Indicates the list of ports configured with the QCE.
• Frame Type
Indicates the type of frame to look for incomming frames. Possible frame types
are:
 Any: The QCE will match all frame type.
 Ethernet: Only Ethernet frames (with Ether Type 0x600-0xFFFF) are
allowed.
 LLC: Only (LLC) frames are allowed.
 SNAP: Only (SNAP) frames are allowed.
 IPv4: The QCE will match only IPV4 frames.
 IPv6: The QCE will match only IPV6 frames.
• SMAC
Displays the OUI field of Source MAC address, i.e. first three octet (byte) of MAC
address.
• DMAC
Specify the type of Destination MAC addresses for incoming frame. Possible
values are:
 Any: All types of Destination MAC addresses are allowed.
 Unicast: Only Unicast MAC addresses are allowed.
 Multicast: Only Multicast MAC addresses are allowed.
 Broadcast: Only Broadcast MAC addresses are allowedd.
The default value is 'Any'.
• VID
Indicates (VLAN ID), either a specific VID or range of VIDs. VID can be in the
range 1-4095 or 'Any'
• PCP
Priority Code Point: Valid value PCP are specific(0, 1, 2, 3, 4, 5, 6, 7) or
range(0-1, 2-3, 4-5, 6-7, 0-3, 4-7) or 'Any'.
