4.6.10.2 VLAN Trunking between two 802.1Q aware switch
The most cases are used for “Uplink” to other switches. VLANs are separated at different switches, but they need to access

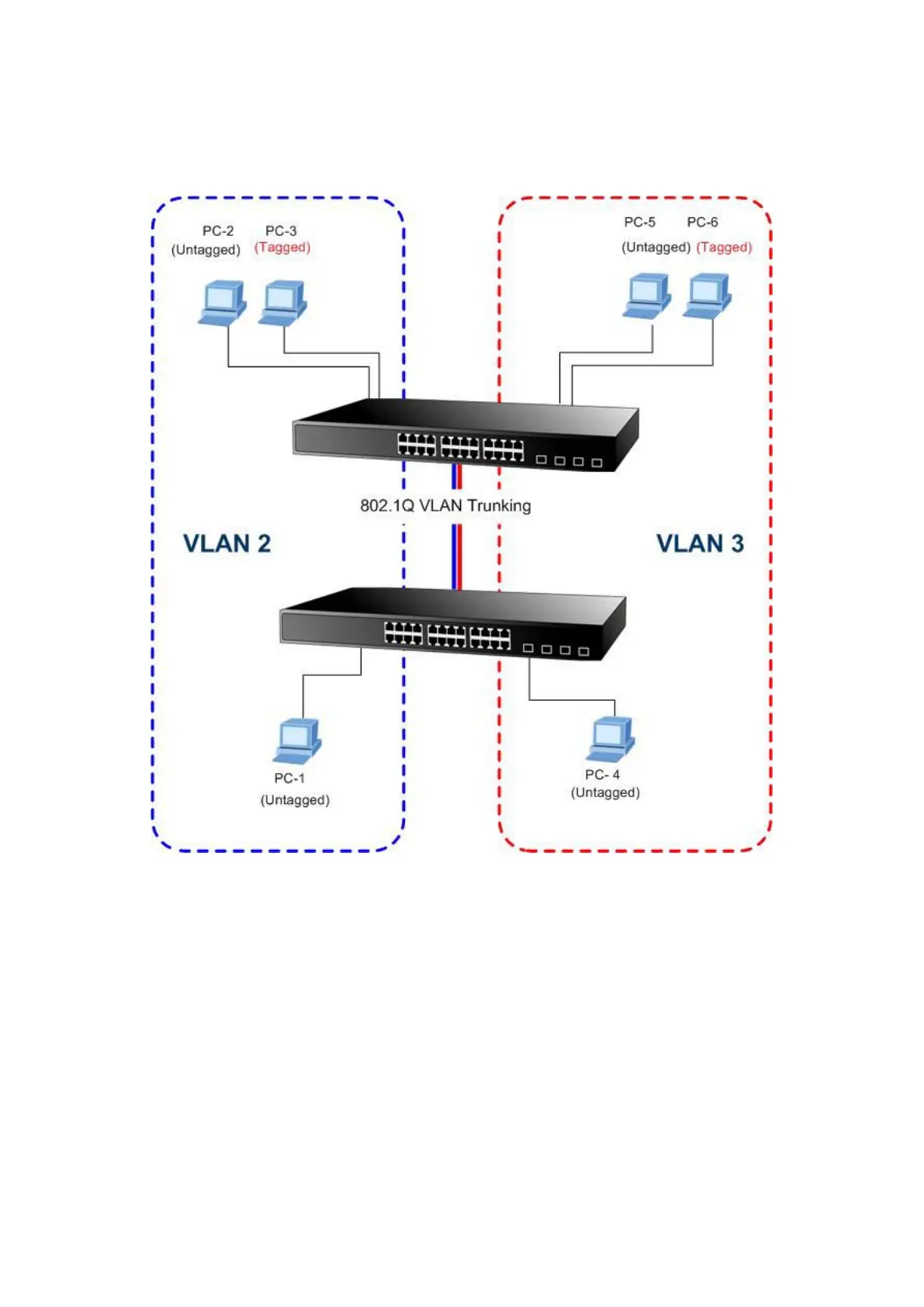

with other switches within the same VLAN group. The screen in Figure 4-6-11 appears.
Setup steps
1. Create VLAN Group
Set VLAN Group 1 = Default-VLAN with VID (VLAN ID) =1
Add two VLANs – VLAN 2 and VLAN 3
VLAN Group 2 with VID=2
VLAN Group 3 with VID=3
2. Assign VLAN Member :
VLAN 2 : Port-1,Port-2 and Port-3
VLAN 3 : Port-4, Port-5 and Port-6
VLAN 1 : All other ports – Port-7~Port-24
