Object Description
• Profile
Set the schedule profile mode. Possible porifles are:
Profile1
Profile2
Profile3
Profile4
• Week Day
Show the PoE schedule mode usage of week day.
Buttons
: click to add new rule.
: Click to save changes.
: Check to delete the entry.
4.16.6 LLDP Neighbor Power Over Ethernet
This page provides a status overview for all LLDP PoE neighbors. The displayed table contains a row for each port on which an
LLDP PoE neighbor is detected. The columns hold the following information: The screen in Figure 4-16-5 appears.

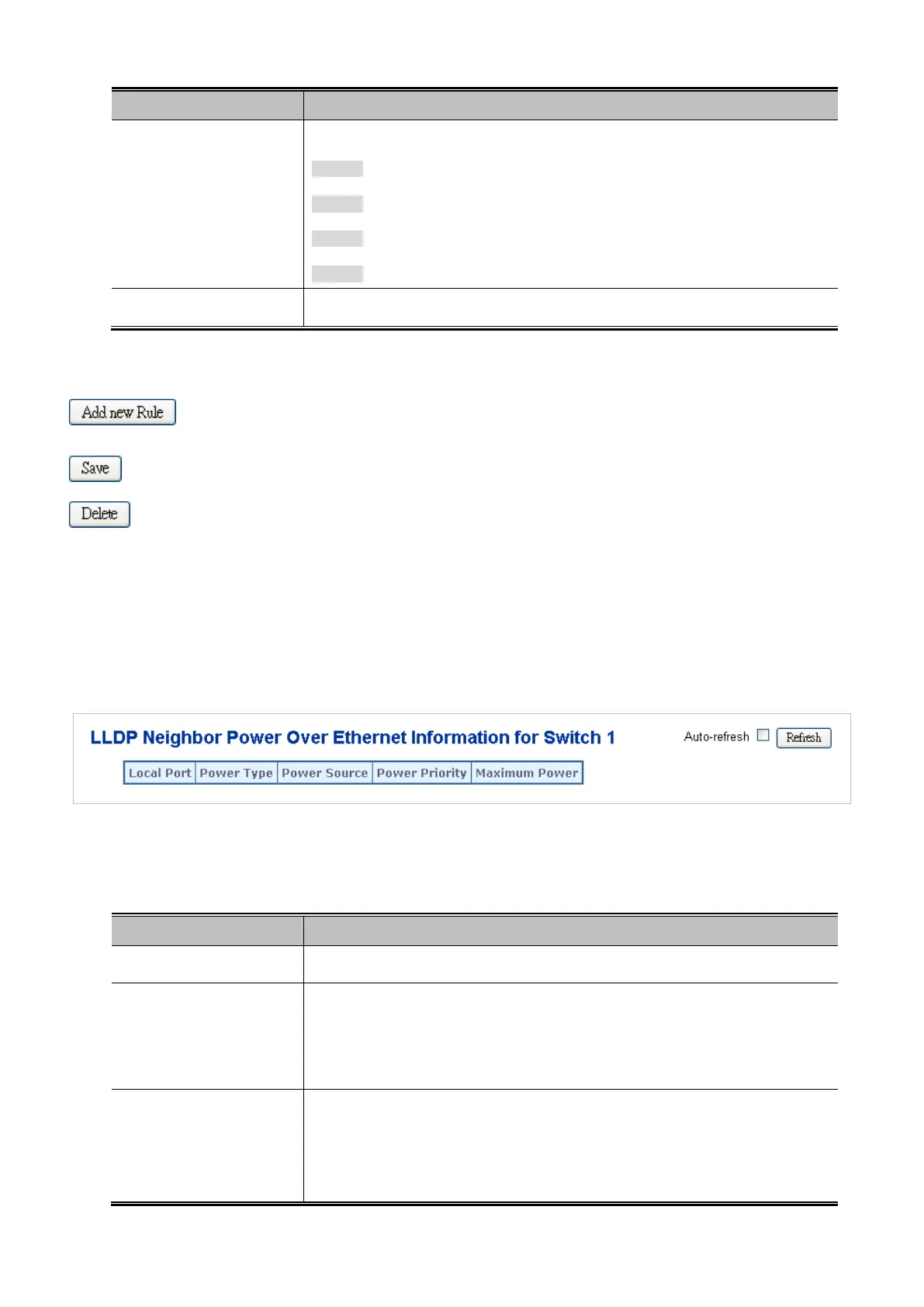

Figure 4-16-6 LLDP Neighbor Power Over Ethernet screenshot
The page includes the following fields:
Object Description
• Local Port
The port for this switch on which the LLDP frame was received.
• Type
The Type represents whether the device is a Power Sourcing Entity (PSE) or Power
Device (PD).
If the Type is unknown it is represented as "Resevered".
• Source
The Source represents the power source being utilized by a PSE or PD device.
If the device is a PSE device it can either run on its Primary Power Source or its
Backup Power Source. If it is unknown whether the PSE device is using its Primary
Power Source or its Backup Power Source it is indicated as "Unknown"
