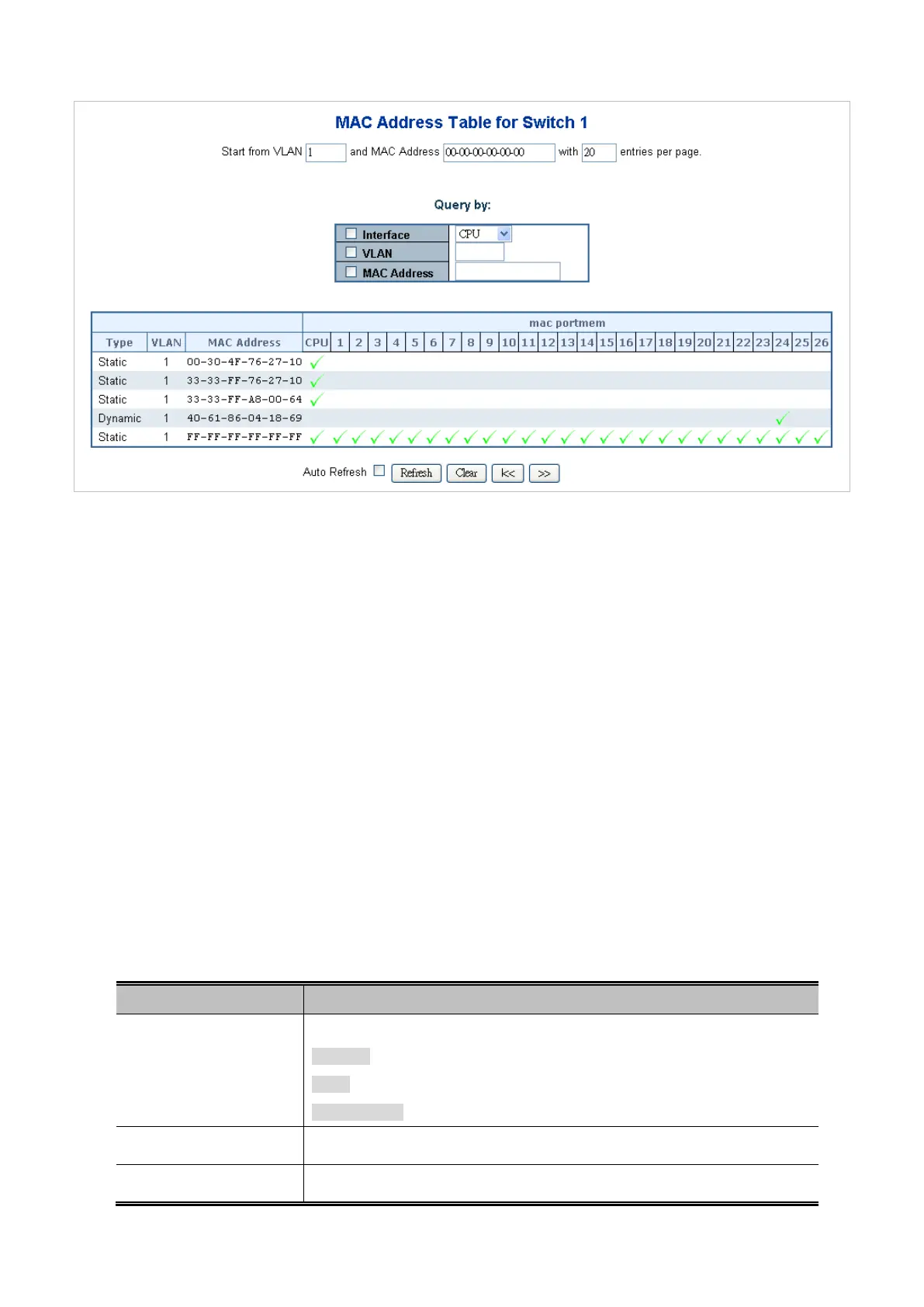

Figure 4-13-3 MAC Address Table Status
Navigating the MAC Table
Each page shows up to 999 entries from the MAC table, default being 20, selected through the "entries per page" input
field. When first visited, the web page will show the first 20 entries from the beginning of the MAC Table. The first displayed
will be the one with the lowest VLAN ID and the lowest MAC address found in the MAC Table.
The "Start from MAC address" and "VLAN" input fields allow the user to select the starting point in the MAC Table.
Clicking the “Refresh” button will update the displayed table starting from that or the closest next MAC Table match.
In addition, the two input fields will - upon a “Refresh” button click - assume the value of the first displayed entry, allowing
for continuous refresh with the same start address.
The “>>” will use the last entry of the currently displayed VLAN/MAC address pairs as a basis for the next lookup. When the
end is reached the text "no more entries" is shown in the displayed table. Use the “|<<” button to start over.
The page includes the following fields:
Object Description
• Query by:
The query of the MAC addresses entry. The following query types are supported:
Interface: Query of the MAC addresses entry by interface.
VLAN: Query of the MAC addresses entry by VLAN.
MAC Address: Query of the MAC addresses entry by MAC address.
• Type
Indicates whether the entry is a static or dynamic entry.
• VLAN
The VLAN ID of the entry.
