21. Thoroughly clean the stator cover.

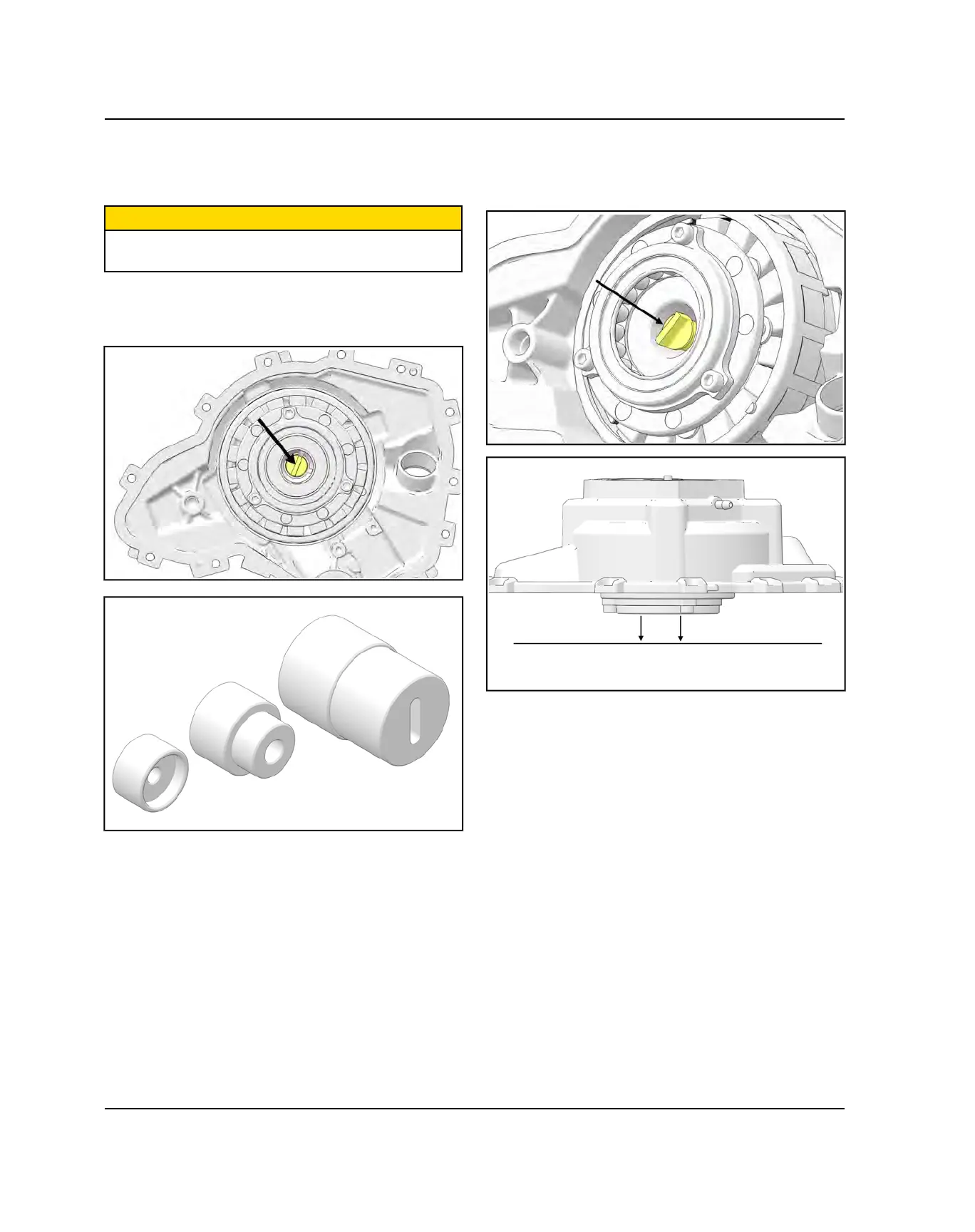

22. Press in a new water pump drive shaft bearing
a
until it is fully seated in the cover.
CAUTION
Be sure bearing is fully seated in cover or severe
engine damage may result.
23. Clean and de-grease the water pump drive shaft (H).
24. Press in the water pump drive shaft into the bearing
using PU-50869 Item #1.
25. Install the water pump drive shaft holding tool in kit
PU-50869. Hold the tool in position and flip the
assembly up-side-down so the special tool PU-
50869 is supporting the assembly.
26. Lubricate the new water pump oil seal with clean
engine oil.
