3.86
9928485 R01 - 2017-2018 RANGER 500 / 570 Service Manual
© Copyright Polaris Industries Inc.

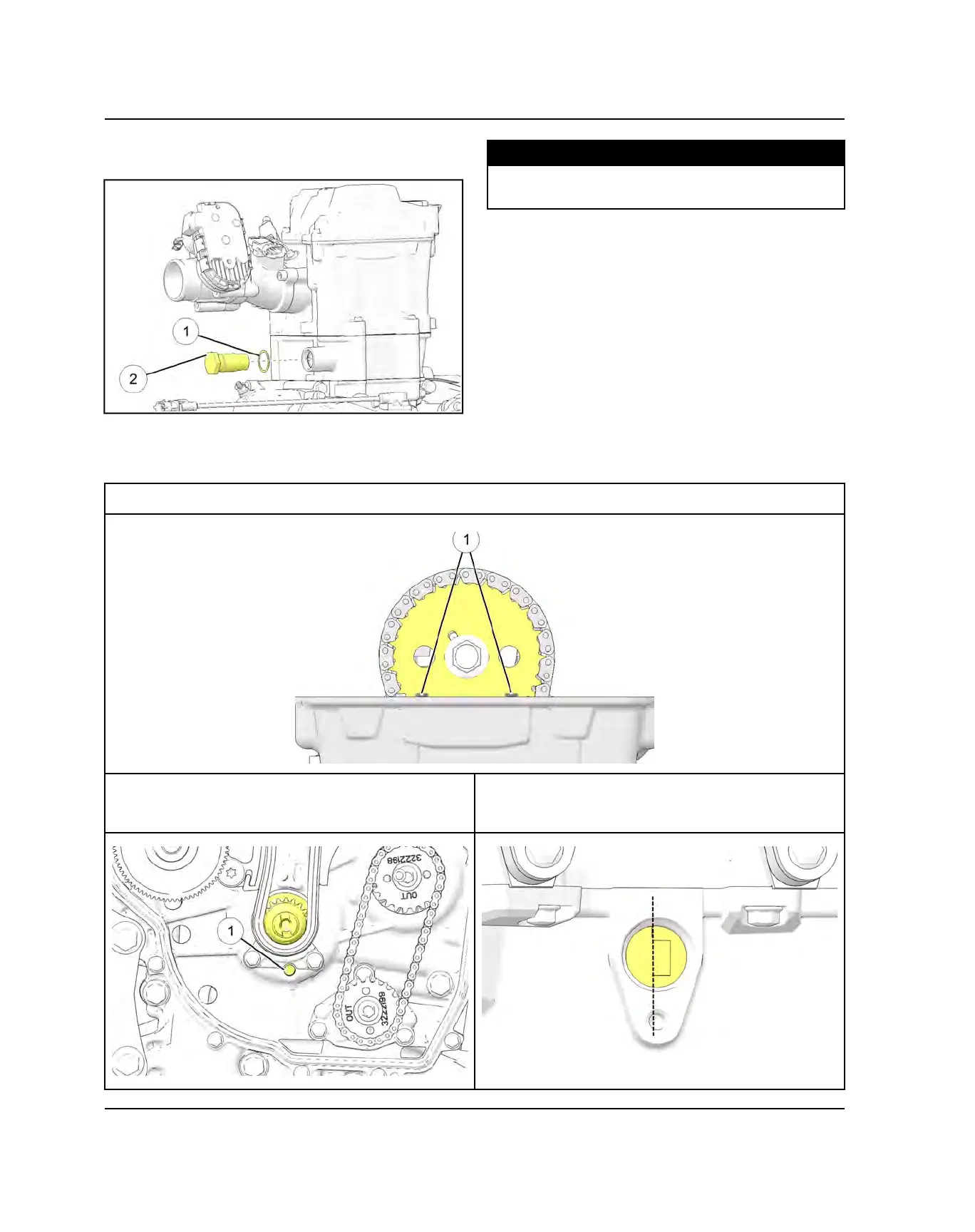

14.Install the hydraulic cam chain tensioner
w
into the
cylinder and torque to specification.
TORQUE
Cam Chain Tensioner:
37 ft-lbs (50 Nm)
15.Rotate crankshaft through two revolutions and verify
camshaft timing is correct.
CAMSHAFT TIMING - QUICK REFERENCE
The camshaft sprocket should have notch marks
q
aligned with gasket surface.
Stator Cover/Flywheel Removed. Flywheel Key faces
down and insert a 1/4” drive socket extension through
the crankcase and into the crankshaft locating hole
q
.
Stator Cover/Flywheel Installed. “V” marked on the
flywheel is aligned with the CPS mounting hole.
ENGINE / COOLING SYSTEM
