STARTER ONE-WAY CLUTCH INSPECTION

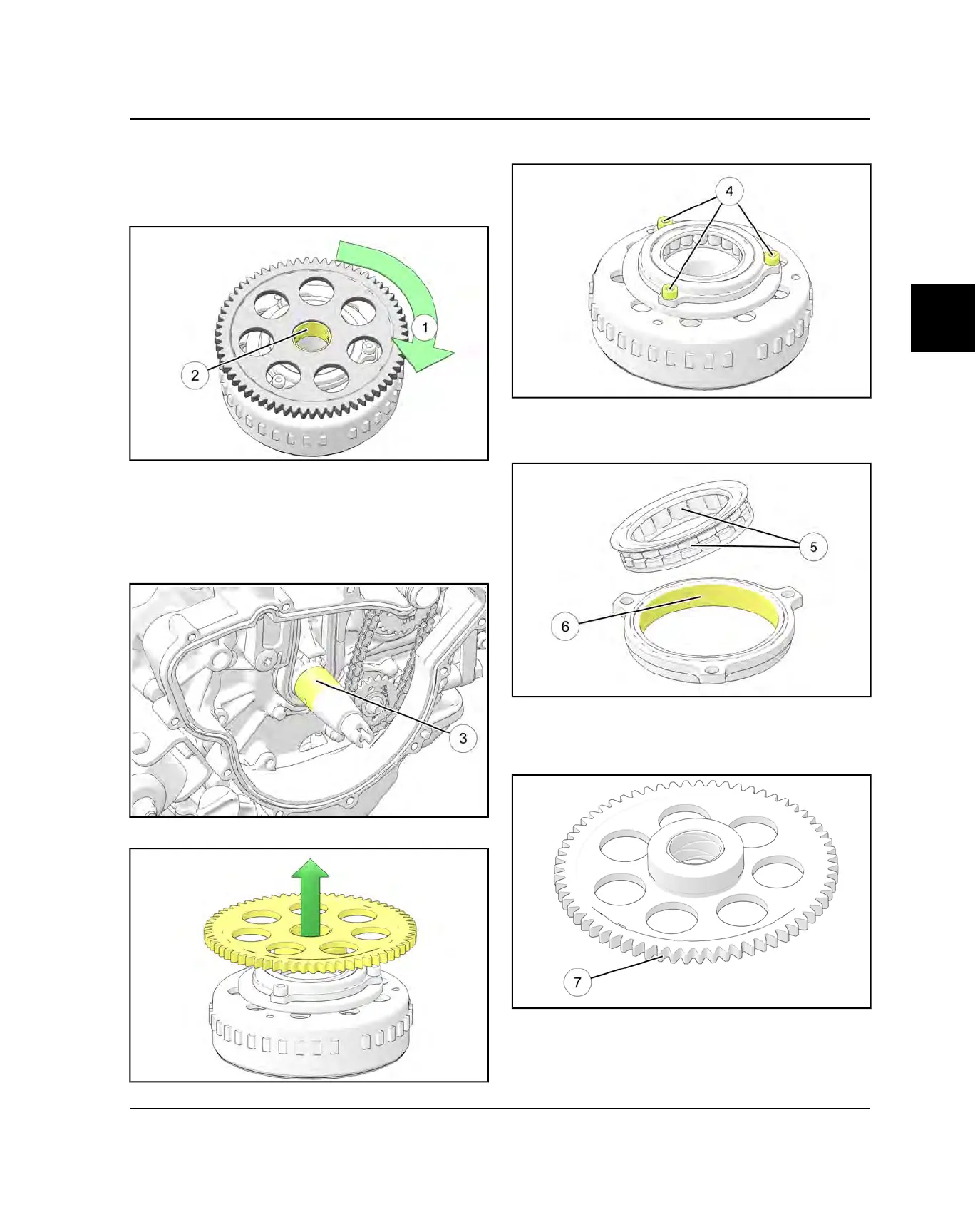

1. Remove flywheel as outlined in this chapter.
2. Place flywheel on work bench. Grasp gear and rotate
clockwise
q
. It should turn smoothly without binding.
3. Rotate gear counterclockwise. The gear should
immediately lock in position and not slip.
4. Inspect inside of hub
w
for wear, galling, or uneven
surface.
5. Inspect crankshaft bearing surface
e
for abnormal
wear.
6. Remove starter gear from the flywheel assembly.
7. Remove the one-way clutch retaining bolts
r
.
8. Remove clutch and inspect both sides of drive rollers
t
and roller contact surface
y
inside hub for wear,
damage, or uneven surface.
9. Inspect drive surface of starter gear
u
for wear,
damage, or uneven surface. If any starter clutch
component is worn or damaged, replace clutch,
clutch hub, and starter gear.
