Polaris RANGER 570 2017 - Drive Clutch Assembly View; Drive Clutch Service

5.14
9928485 R01 - 2017-2018 RANGER 500 / 570 Service Manual
© Copyright Polaris Industries Inc.
DRIVE CLUTCH SERVICE

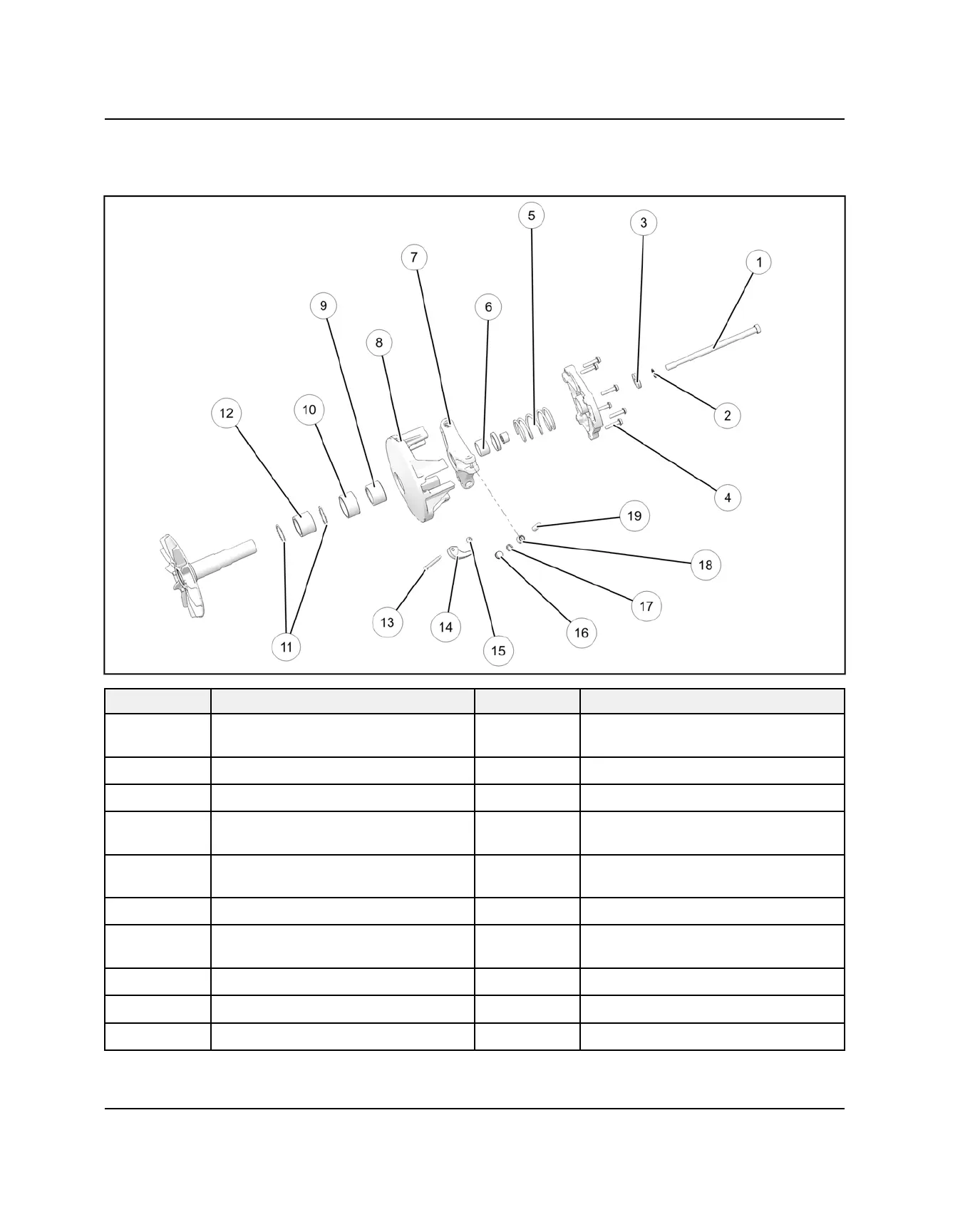

DRIVE CLUTCH ASSEMBLY VIEW
REF DESCRIPTION REF DESCRIPTION
q
Clutch Bolt (Replace if removed)
47 ft-lbs (63.5 Nm)
s
Washers
w
Lock Washer
d
One-Way Bearing (EBS)
e
Flat Washer
f
Bolt
r
Cover Screws
100 in-lbs (12 Nm)
g
Shift Weight
t
Spring
h
Nut
25 in-lbs (2.8 Nm)
y
Limiter Spacer
j
Button
u
Spider
210 ft-lbs (284 Nm)
k
Washer
i
Sheave Bushing
l
Roller
o
Bushing
1(
Pin
a
Spacer
PVT SYSTEM
