TRANSMISSION GEARS
Please refer to the Polaris Parts Catalog for gear tooth
counts and part numbers.
To access the Polaris Parts catalog please visit:
http://parts.polarisind.com/browse/browse.asp
LUBRICATION
FLUID CAPACITY
Recommended Transmission Lubricant:
AGL (PN 2878068) (Quart)
Capacity: 41 oz. (1200 ml)

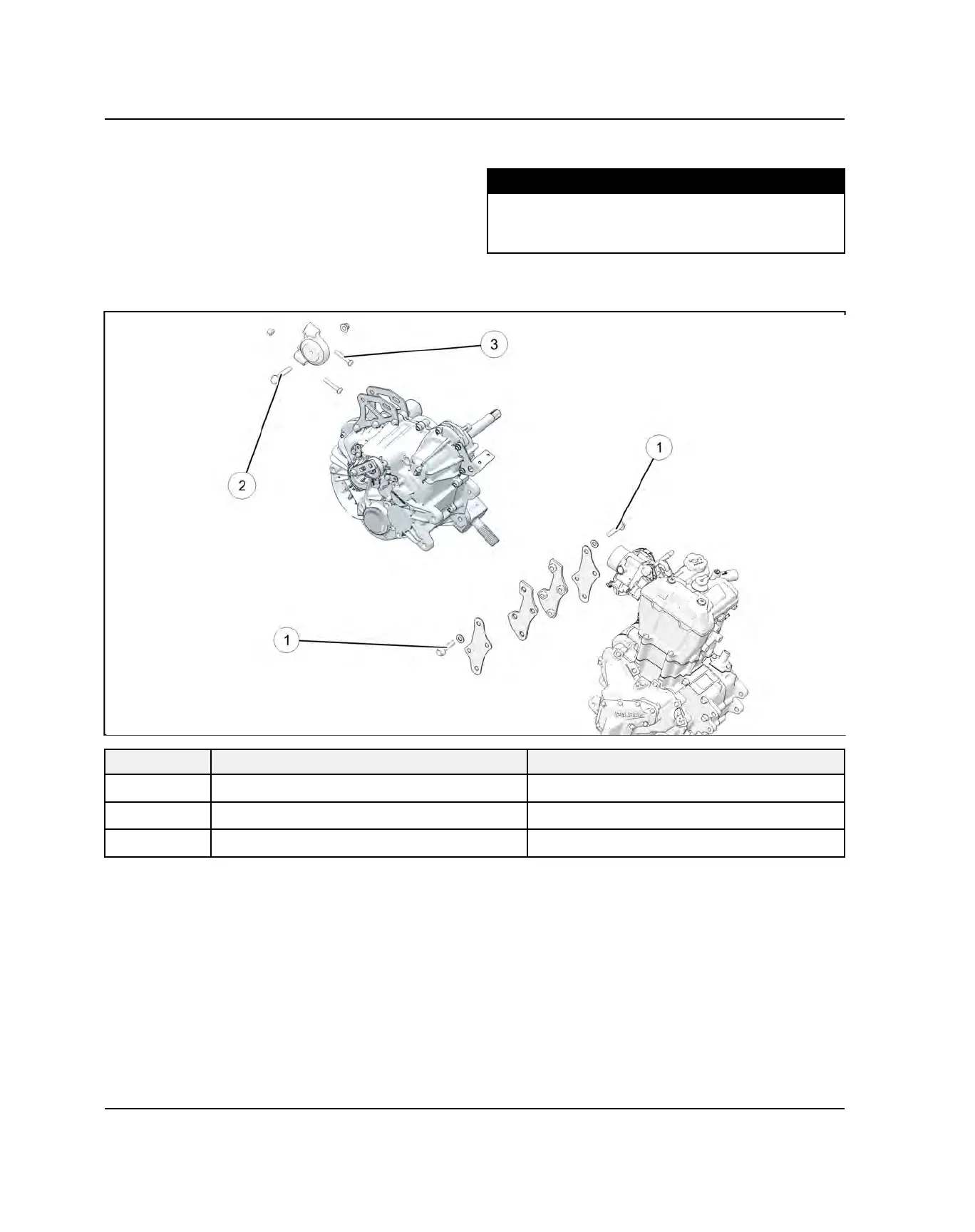

TRANSMISSION MOUNTING AND TORQUE VALUES
REF.
DESCRIPTION NOTES
q
Bolt
Torque to 55 ft-lbs (75 Nm)
w
Bolt
Torque to 40 ft-lbs (54 Nm)
e
Bolt
Torque to 25 ft-lbs (34 Nm)
TRANSMISSION
