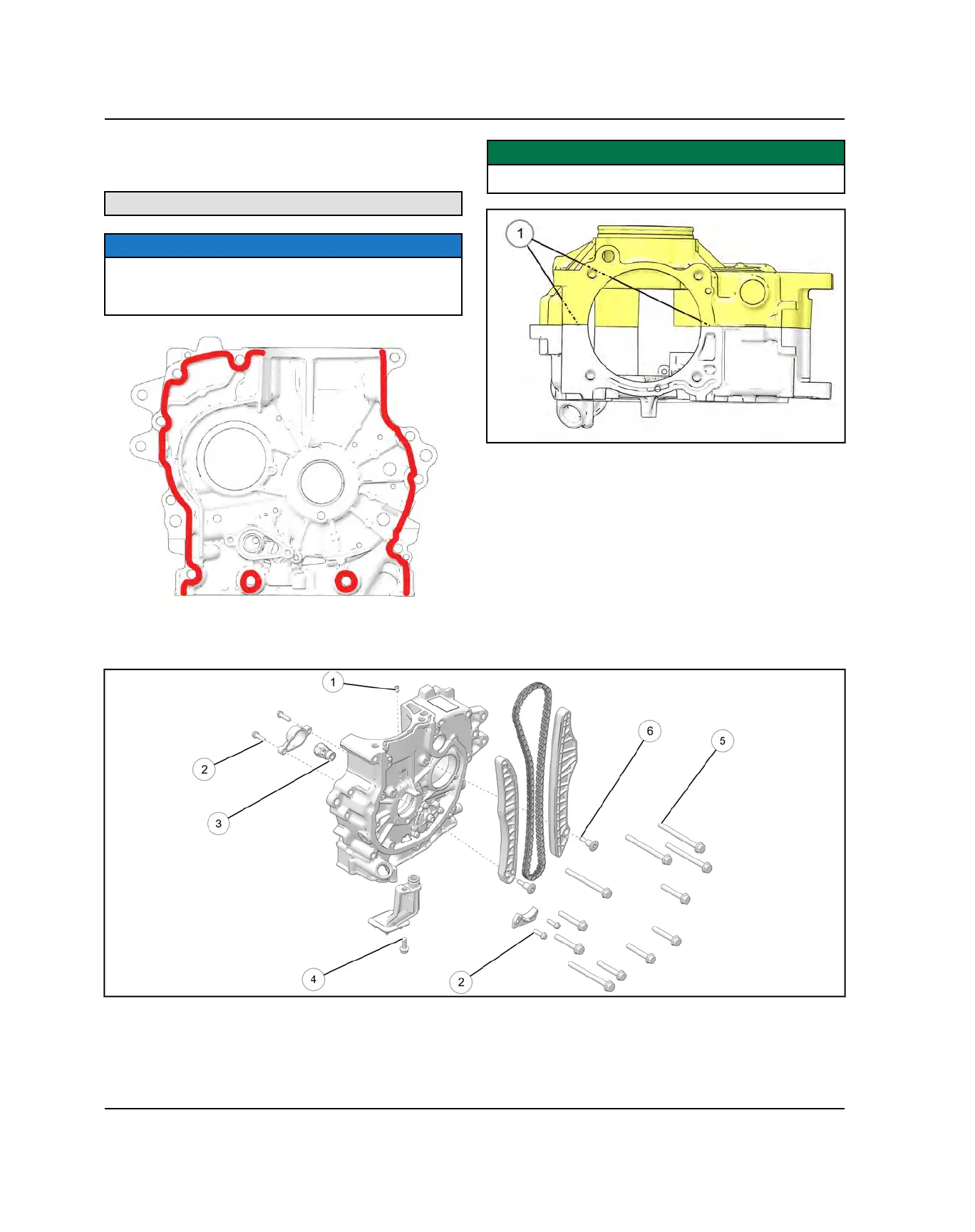

CRANKCASE SEALANT PATH
Apply sealant as shown.
Crankcase Sealant: 2871557
NOTE
Clean the case halves with ISOPROPYL ALCOHOL to
remove all sealant before applying new sealant.
Alignment Pins MUST be installed prior to assembly
IMPORTANT
Clean the case deck
q
of all sealant after assembly.
CRANKCASE / TIMING CHAIN GUIDES / OIL PICKUP / REGULATOR VALVE
