MASTER CYLINDER
REMOVAL

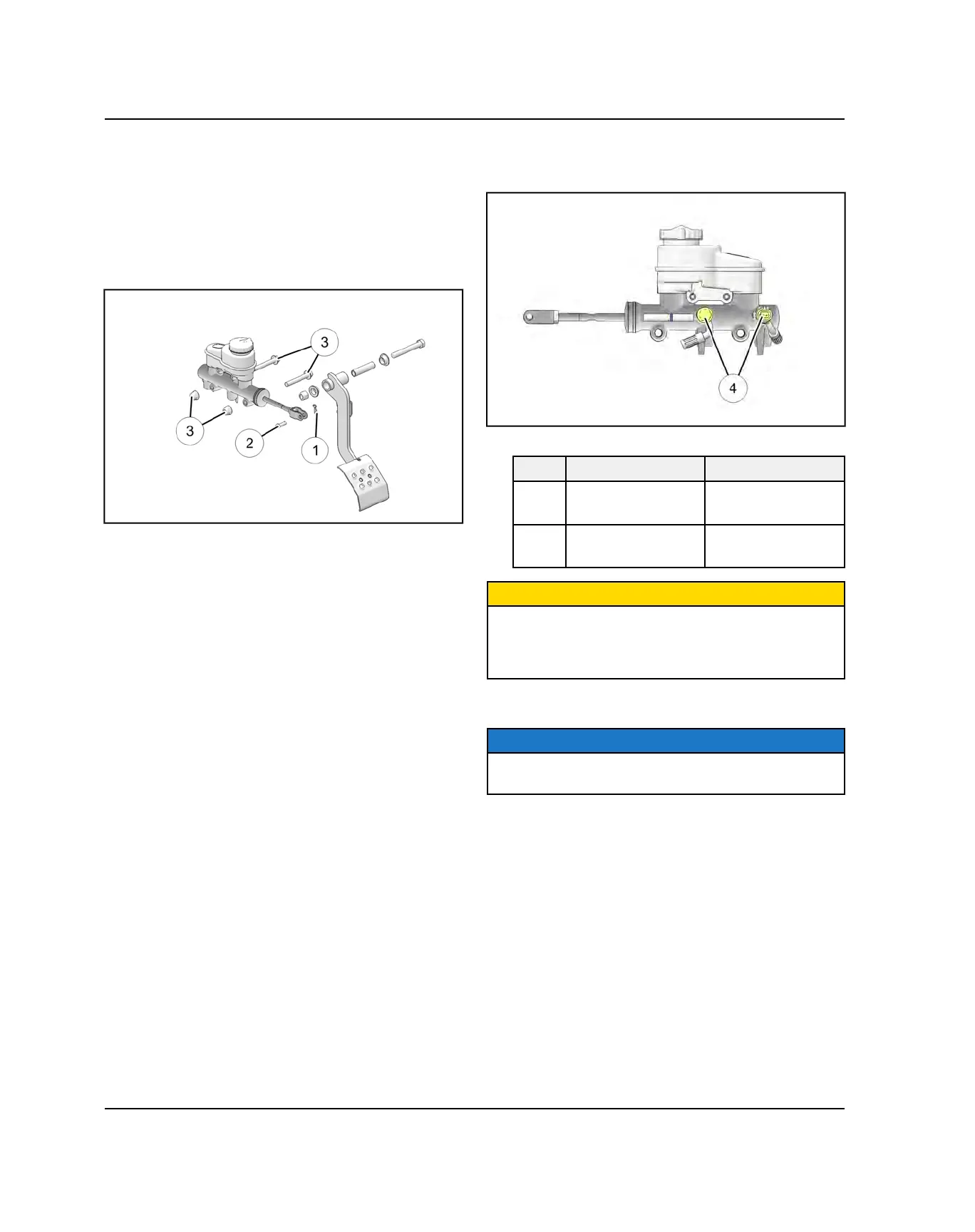

1. Remove the retaining clip
q
from the clevis pin
w
that attaches the master cylinder to the brake pedal
lever.
2. Remove LH wheel well panel to access master
cylinder.
3. Remove the two mounting bolts
e
that secure the
master cylinder to the frame.
4. Remove master cylinder and place a fluid catch
container under the master cylinder brake line banjo
bolt
r
.
REF.
DESCRIPTION NOTES
e
Mounting Bolts
Torque to 15 ft-lbs
(20 Nm)
r
Banjo Bolts
Torque to 15 ft-lbs
(20 Nm)
CAUTION
Brake fluid will damage finished surfaces.
Do not allow brake fluid to come in contact with finished
surfaces.
5. Loosen the brake line banjo bolts
r
and allow the
fluid to drain.
NOTE
Make note of front and rear brake line orientation on the
master cylinder.
6. Dispose of brake fluid properly and do not re-use.
INSTALLATION
Reverse Steps 1-5 for master cylinder installation. Refer
to the torque specifications in the illustration.
