6.20
9928485 R01 - 2017-2018 RANGER 500 / 570 Service Manual
© Copyright Polaris Industries Inc.

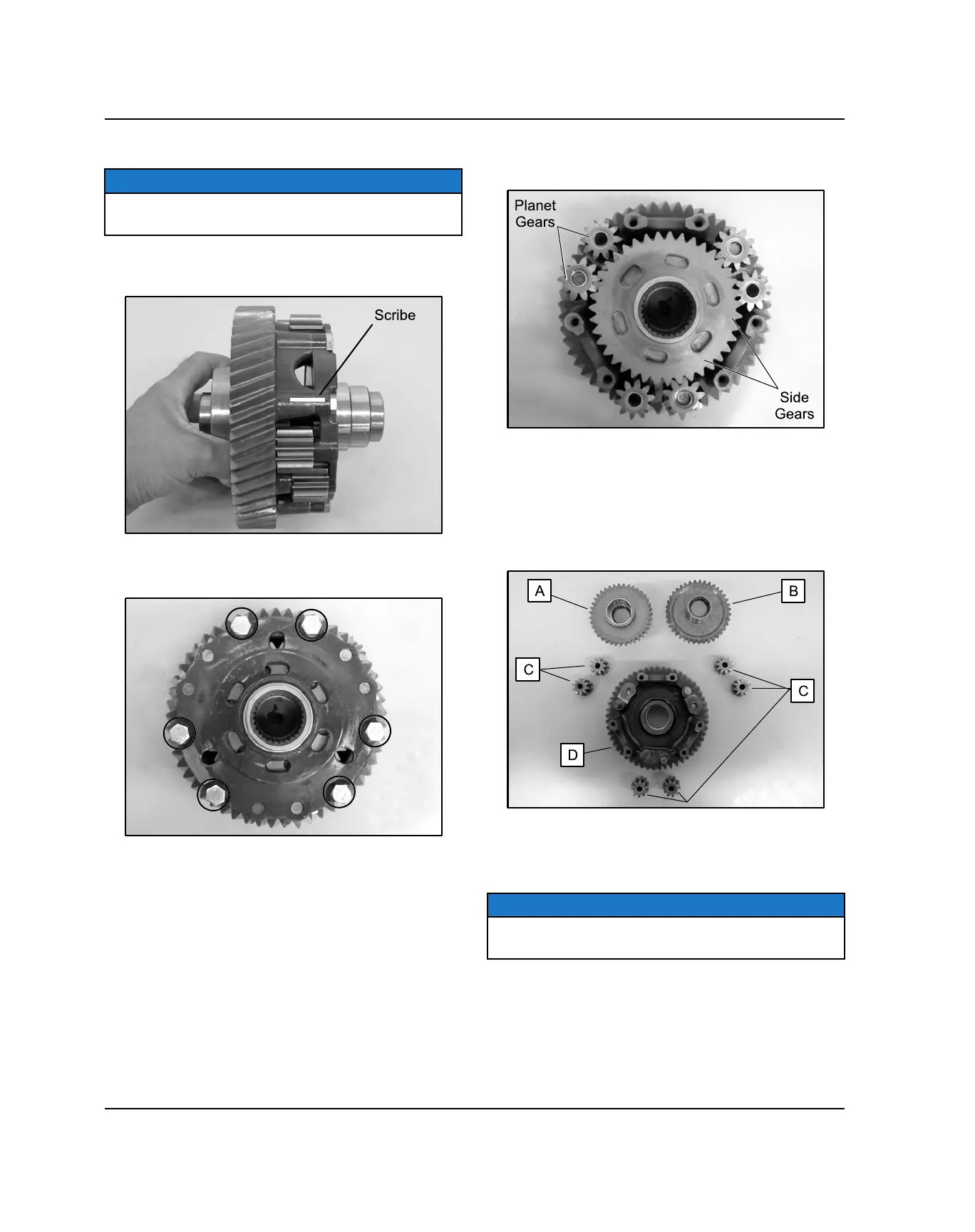

PLANETARY DIFFERENTIAL DISASSEMBLY
NOTE
If the gearcase is completely assembled, perform the
“Gearcase Disassembly and Inspection” procedure.
1. Use a scribe to mark the differential cover and ring
gear prior to disassembly.
2. Remove the (6) screws retaining the differential
cover and remove the cover.
3. Remove the (6) planet gears and each side gear
assembly from the ring gear.
4. Inspect the female side gear (A), male side gear (B),
planet gears (C) and ring gear (D). Replace
components or bushings as needed. Bushing
replacement can be performed on all necessary
differential components. If bushing replacement is
required, proceed to Planetary Differential Bushing
Replacement”.
PLANETARY DIFFERENTIAL BUSHING
REPLACEMENT
NOTE
If the differential is completely assembled, perform the
“Planetary Differential Disassembly” procedure.
Ring Gear Bushing Replacement
1. Press the old bushing out of the ring gear.
2. Thoroughly clean the bore of the ring gear and check
for any unwanted burs.
TRANSMISSION
