FRONT STRUT

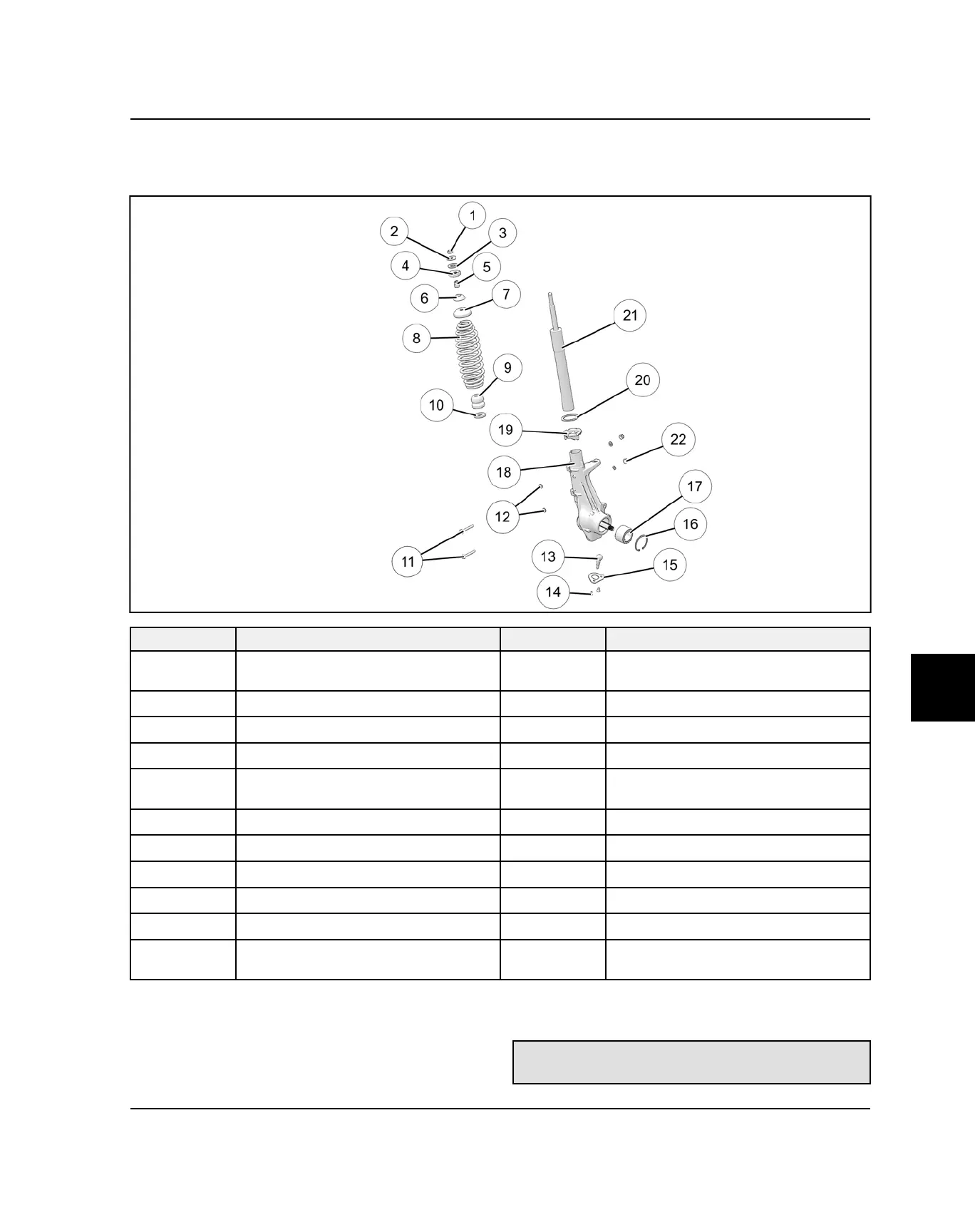

ASSEMBLY VIEW
REF DESCRIPTION REF DESCRIPTION
q
Nut
13–17 ft-lbs (18–23 Nm)
d
Washers
w
Washer
f
Ball Joint
e
Rubber Spacer
g
Screws
r
Upper Pivot Ball
h
Ball Joint Bracket
t
Spacer
15 ft-lbs ( 20 Nm)
j
Retaining Ring
y
Lower Pivot Ball
k
Wheel Bearing
u
Spring Retainer
l
Hubstrut
i
Spring
1(
Cam Adjuster
o
Bumper
2)
Washer
a
Spacer
2!
Front Strut
s
Bolts
2@
Nut
20 ft-lbs (27 Nm)
FRONT STRUT CARTRIDGE
REPLACEMENT
1. Hold strut rod and remove top nut.
2. Compress spring using strut spring compressor
tools.
Strut Spring Compressor Tools
(PN 2871573) and (PN 2871574)
