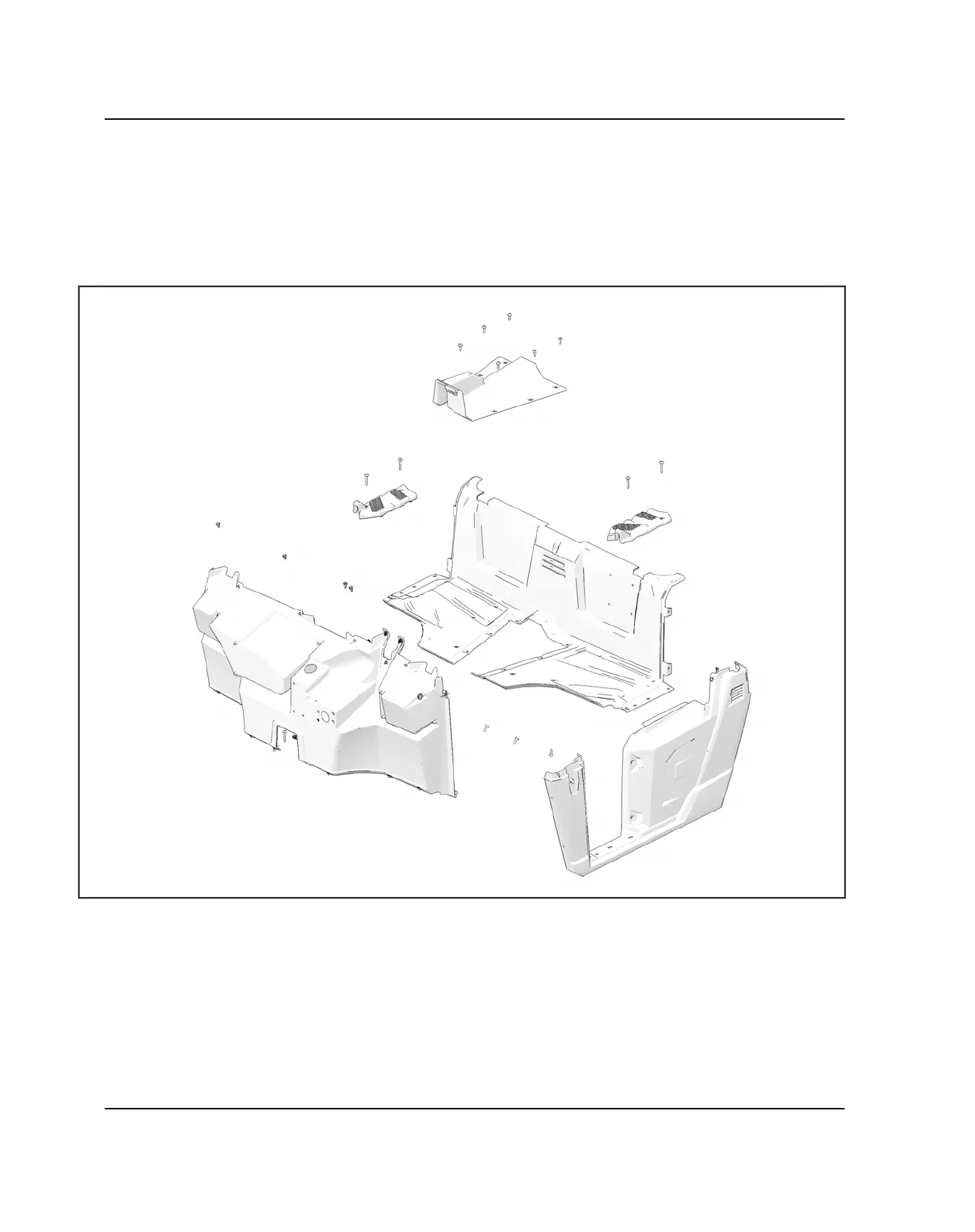

FLOORS
1. Remove the Foot pads.
2. Remove the rear fender push rivets.
3. Remove the seven Torx-head screws retaining the
center floor.
4. Remove the Torx-head screws retaining the front
floor cover.
5. Remove the Torx-head screws retaining the main
floor and remove the main floor from the vehicle.
6. Continue with ‘Hood / Dash Removal’ procedure.
7. Remove the accelerator and brake pedals for
adequate clearance to remove the front floor section.
