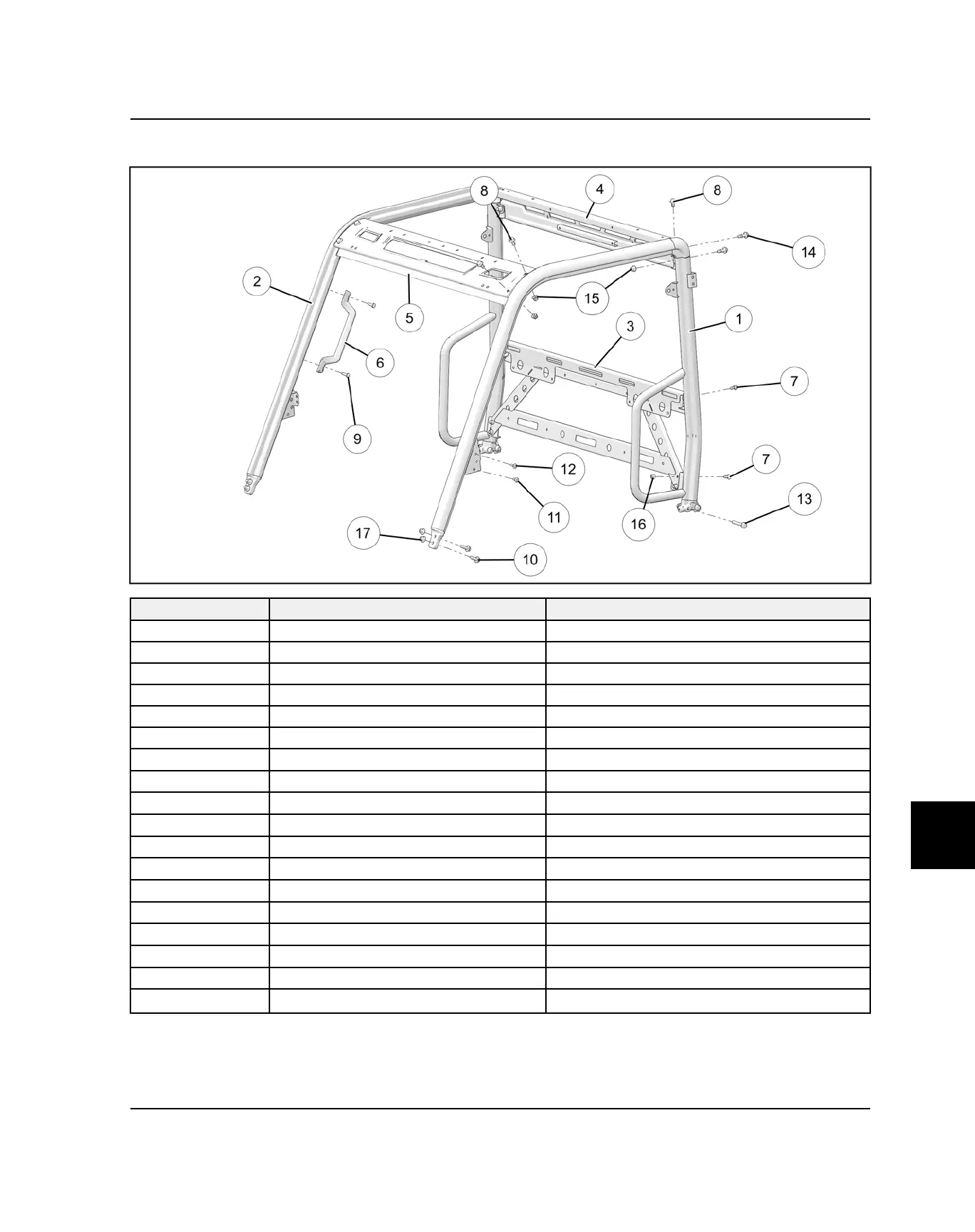

CAB FRAME ASSEMBLY VIEW
NUMBER
PART DESCRIPTION
TORQUE (IF APPLICABLE)
q
Cab Frame, LH
-
w
Cab Frame, RH
-
e
Cab Frame, Lower / Rear
-
r
Cab Support, Rear
-
t
Windshield Mount, Upper
-
y
Grab Handle
-
u
Screw - M8 x 1.25 x 20 (QTY.8) 18 ft-lb (24 Nm)
i
Screw - M10 x 1.5 x 20 (QTY.6) 36 ft-lb (49 Nm)
o
Bolt - M8 x 1.25 x 20 (QTY.2) 10 ft-lbs (14 Nm)
a
Screw - M10 x 1.25 x 30 (QTY.4) 36 ft-lb (49 Nm)
s
Screw - M6 x 1.0 x 25 (QTY.2) 8 ft-lb (11 Nm)
d
Screw - M8 x 1.25 x 30 (QTY.4) 14 ft-lbs (19 Nm)
f
Screw - M10 x 1.5 x 75 (QTY.4) 36 ft-lb (49 Nm)
g
Screw - M10 x 1.5 x 30 (QTY.4) 36 ft-lb (49 Nm)
h
Nut - M10 1.5 (QTY.10)
-
j
Nut - M8 x 1.25 (QTY.8)
-
k
Nut - M10 x 1.25 (QTY.4)
-
Nut
Used with part
f
on 2017–2018 cab frames
