Polaris RANGER 570 2017 Service Manual

9.10
9928485 R01 - 2017-2018 RANGER 500 / 570 Service Manual
© Copyright Polaris Industries Inc.
BRAKE PEDAL

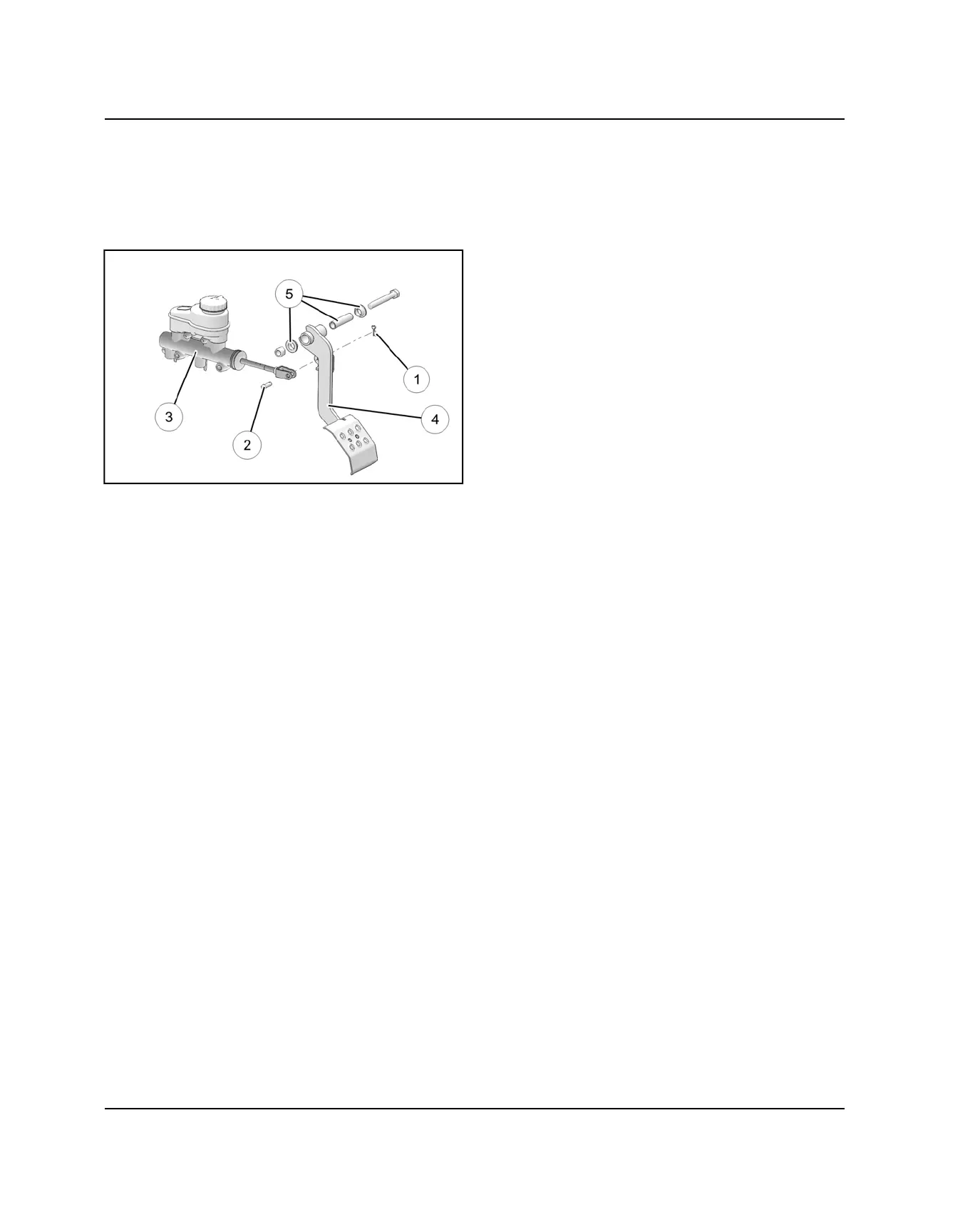

PEDAL REMOVAL
1. Remove the retaining clip
q
and clevis pin
w
from
the master cylinder
e
to free it from the brake pedal
r
.
2. Remove the brake pedal pivot fastener and bushings
t
off the mount bracket.
PEDAL INSTALLATION
1. Reverse steps for foot brake installation.
2. Tighten pivot bolt sufficiently. Refer to the general
torque specifications in Chapter 1.
BRAKE SYSTEM
