7.44
9928485 R01 - 2017-2018 RANGER 500 / 570 Service Manual
© Copyright Polaris Industries Inc.

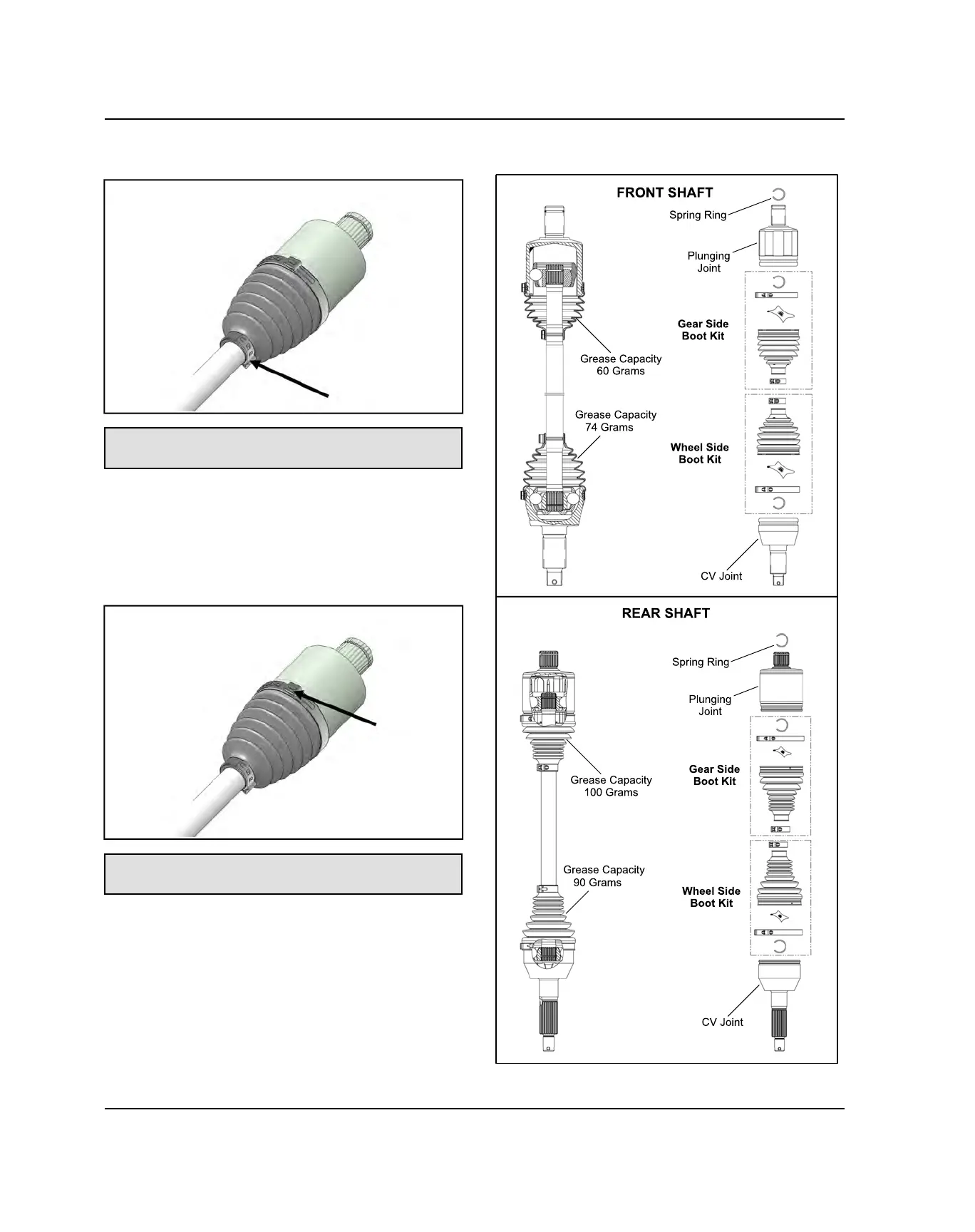

20. Install and tighten the small clamp using the Axle
Boot Clamp Tool (PU-48951 or 8700226).
Axle Boot Clamp Tool
PU-48951 or 8700226
21. Pull out on the drive shaft to center the joint in the
housing. Slide a straight O-ring pick or a small
slotted screw driver between the large end of the
boot and the joint housing and lift up to equalize the
air pressure in the boot.
22. Position the boot lip in its groove. Install and tighten
the large clamp using the Axle Boot Clamp Tool.
Axle Boot Clamp Tool
PU-48951 or 8700226
DRIVE SHAFT ASSEMBLY VIEW
FINAL DRIVE
To Next Page
