INFORMATION DISPLAY AREA

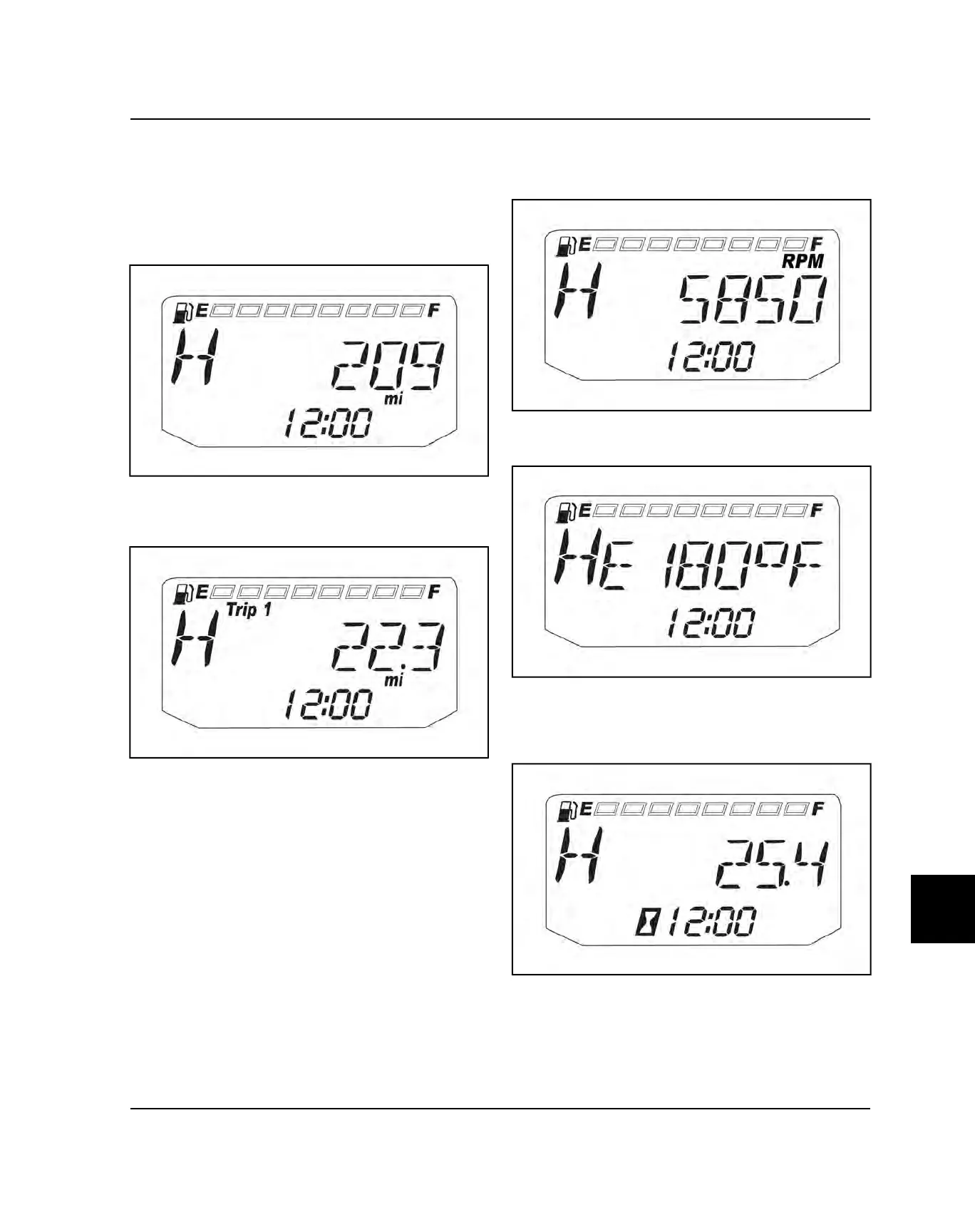

The LCD portion of the instrument cluster is the
information display area. Information displayed in this
area includes: odometer, trip meter, engine RPM, engine
hours, service interval, clock, engine Diagnostic Trouble
Codes (DTCs) and power steering DTCs.
Odometer
The odometer records and displays the total distance
traveled by the vehicle. The odometer can not be reset.
Trip Meter
The trip meter records the miles traveled by the vehicle
on each trip. To reset the trip meter:
1. Toggle the MODE button to TRIP 1.
2. To reset to 0, push and hold the MODE button until
the distance display changes to 0.
Tachometer (RPM)
Engine RPM can be displayed digitally.
Engine Temperature
Engine temperature can be displayed in ° F or °
C. Refer to “Units of Measurement” to change the
format.
Engine Hours
Engine hours are logged anytime the engine is
running. Total hours can not be reset.
