4
9928485 R01 - 2017-2018 RANGER 500 / 570 Service Manual
© Copyright Polaris Industries Inc.
4.9

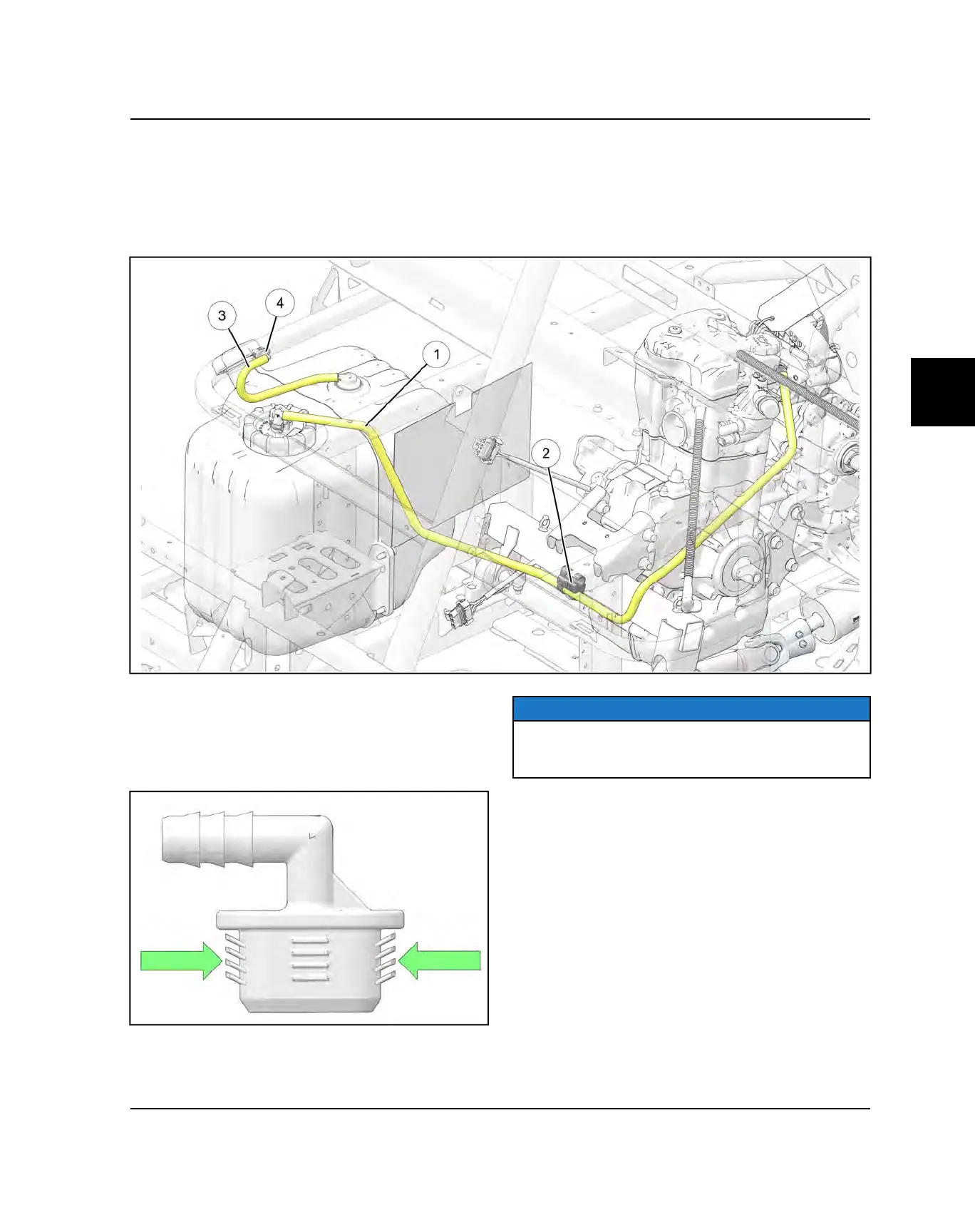

LINE / HOSE ROUTING
FUEL LINE ROUTING
• The fuel supply line
q
is routed as shown below and retained by a clip
w
at the front engine mount.
• The fuel vent line
e
is routed as shown below and terminates at the fuel vent connector
r
that is inserted in the
frame.
VENT LINE TERMINATION FITTING
This fitting should be inspected and tested using a Mity
Vac™ to ensure proper venting. Connect the Mity Vac to
the fitting and give it 5 pumps. The gauge should return
to 0 immediately or there is an obstruction.
NOTE
If the vent line fitting is removed from the frame, it must
be replaced. The ears on the clip (arrows) will not hold
properly once it is removed.
FUEL SYSTEM
