9928485 R01 - 2017-2018 RANGER 500 / 570 Service Manual
© Copyright Polaris Industries Inc.

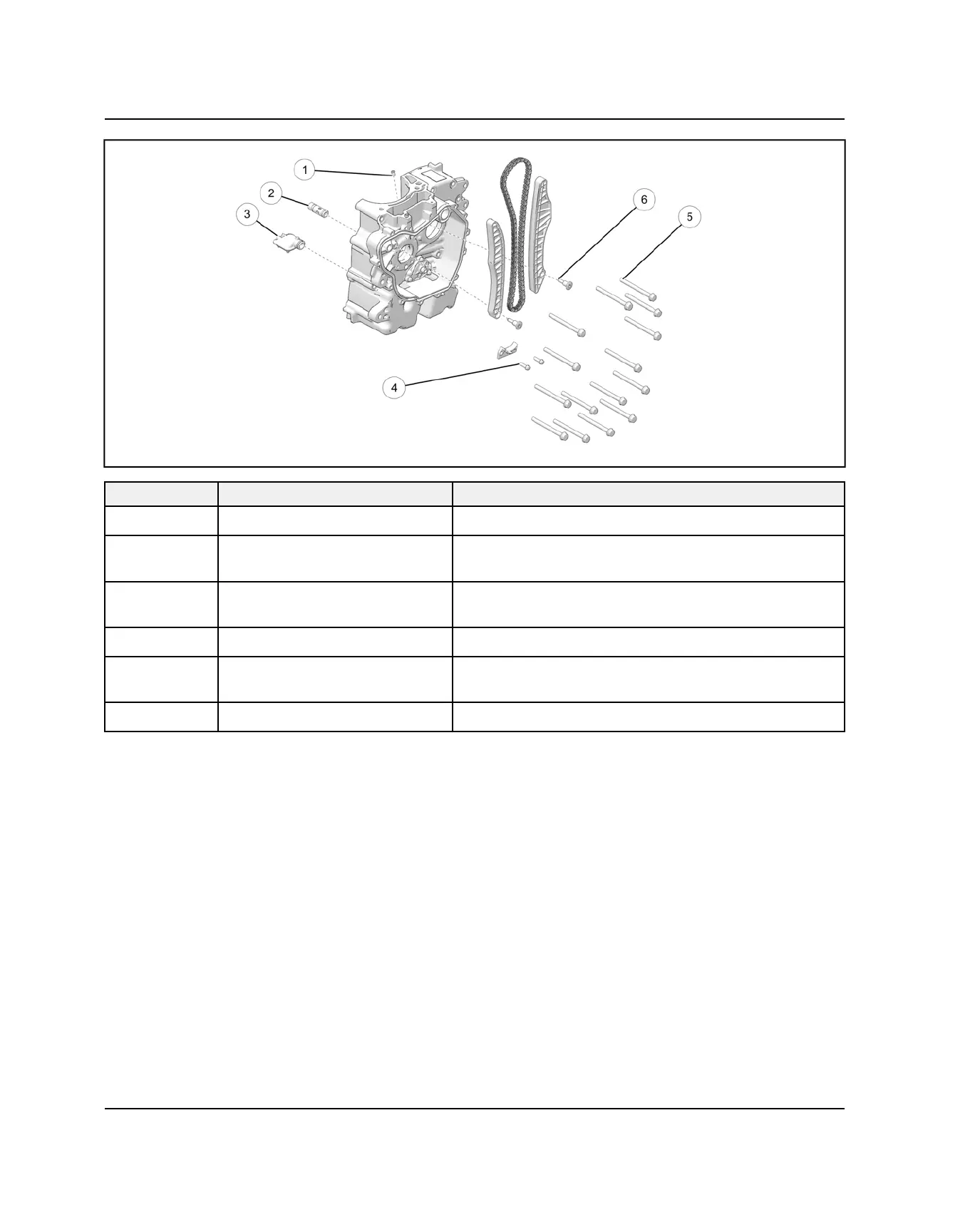

REF.
DESCRIPTION NOTES
q
Piston Oil Jet Torque: 35 in-lbs (4 Nm)
w
Oil Pressure Regulator Assembly Install until fully seated in bore/hole.
Engine oil may be used to aid installation.
e
Oil Pickup Install until fully seated in bore/hole.
Engine oil may be used to aid installation.
r
Screw Torque: 106 in-lbs (12 Nm)
t
Screw Torque: 22 ft-lbs (30 Nm)
Replace if loosened or removed.
y
Shoulder Bolt Torque: 88 in-lbs (10 Nm)
