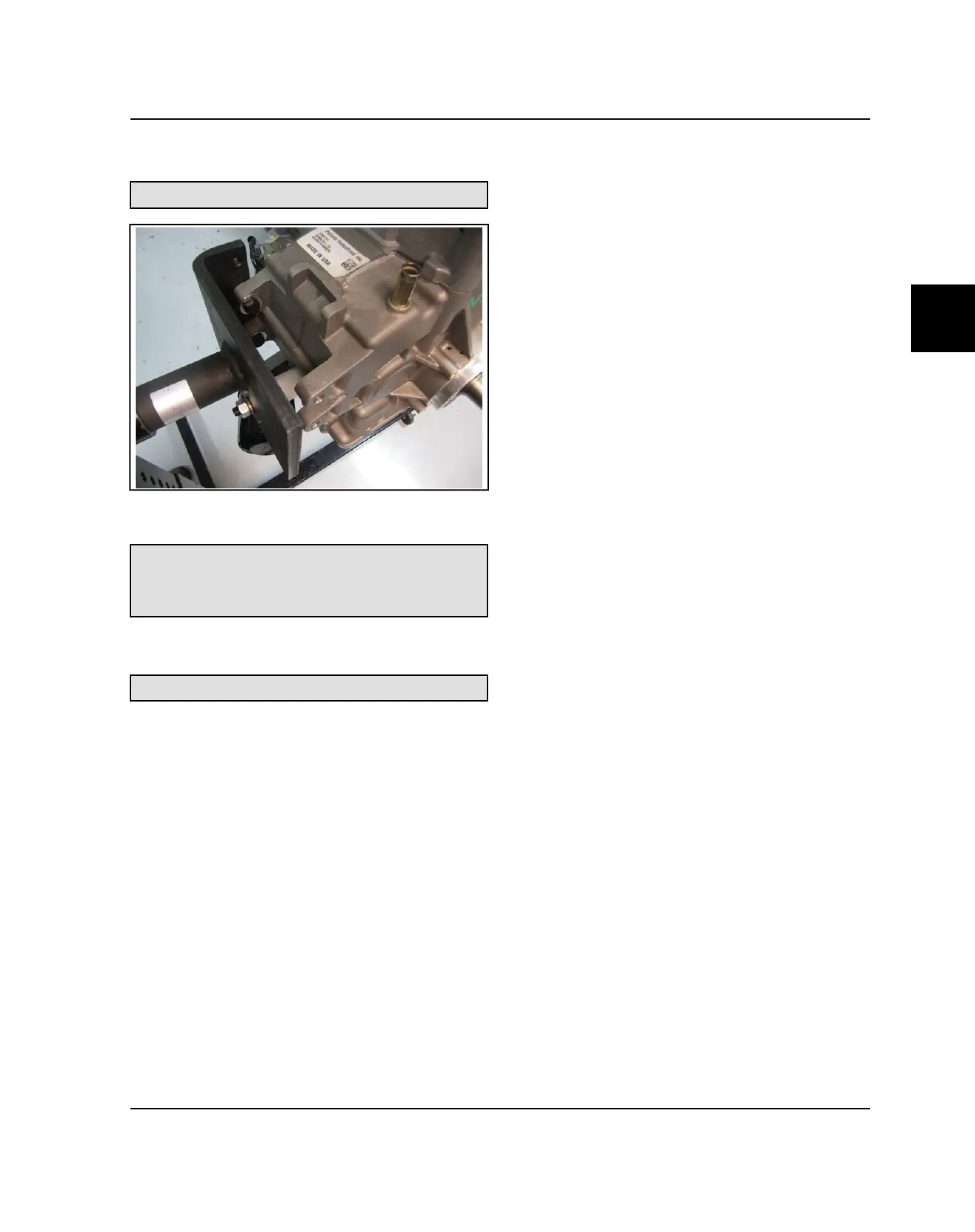

8. Install the engine stand adapter onto the engine PTO
side mounting ears as shown below.
Engine Stand Adapter: PU-50824-A
9. Select the proper engine stand sleeve adapter and
install it onto the engine stand adapter.
Engine Stand Sleeve Adapter (2” Bore Stand): PU-
50625
Engine Stand Sleeve Adapter (2.375” Bore Stand):
PW-47054
10.Place engine onto the engine stand for final assembly
of the engine.
Engine Stand: PU-50624-A
