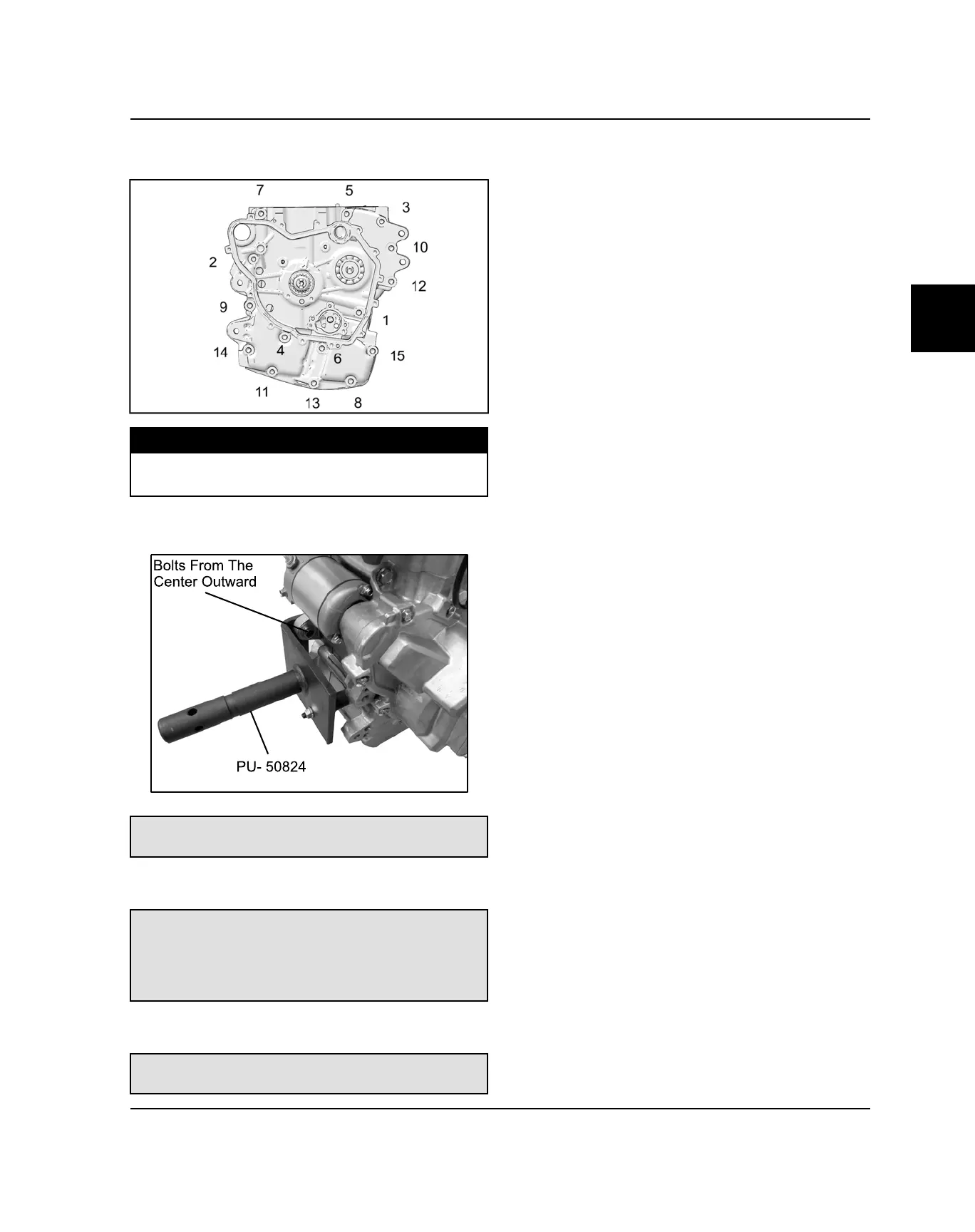

7. Torque the new crankcase bolts to in sequence to
specification.
TORQUE
Crankcase Bolts (In Sequence):
22 ft-lbs (30 Nm)
8. Install the engine stand adapter onto the engine ears
as shown below.
Engine Stand Adapter:
PU-50824-A
9. Select the proper engine stand sleeve adapter and
install it onto the engine stand adapter.
Sleeve adapter for a 2″ bore engine stand:
PU-50625
Sleeve adapter for a 2.375″ bore engine stand:
PW-47054
10. Place engine onto the engine stand for top end
engine assembly as outlined in this chapter.
Engine Stand:
PU-50624-A
