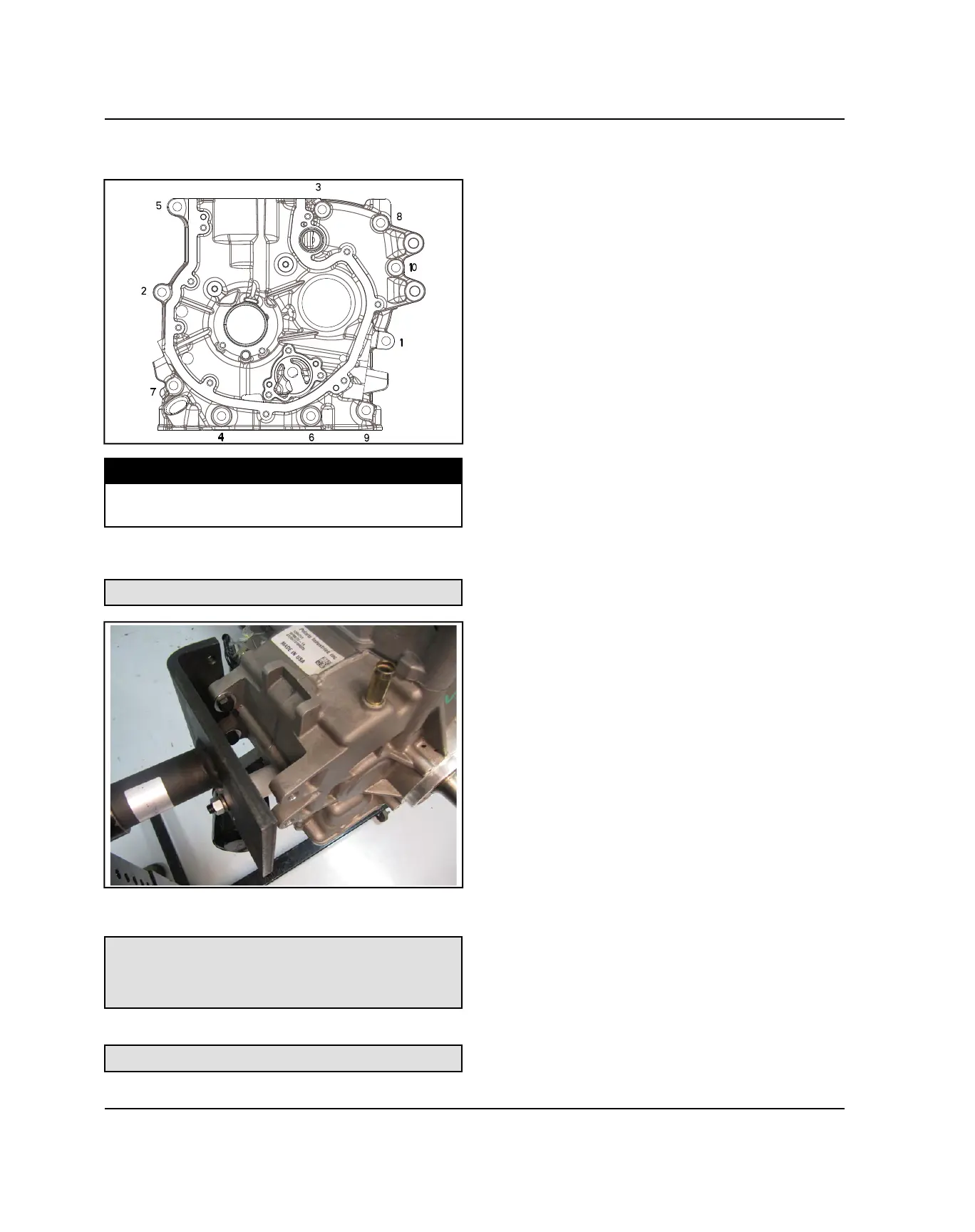

7. Torque the new crankcase bolts to in sequence to
specification.
TORQUE
Crankcase Bolts:
22 ft-lbs (30 Nm)Torque in Sequence Shown
8. Install the engine stand adapter onto the engine PTO
side mounting ears as shown below.
Engine Stand Adapter: PU-50824-A
9. Select the proper engine stand sleeve adapter and
install it onto the engine stand adapter.
Engine Stand Sleeve Adapter (2” Bore Stand): PU-
50625
Engine Stand Sleeve Adapter (2.375” Bore Stand):
PW-47054
10. Place engine onto the engine stand for service.
Engine Stand: PU-50624-A
