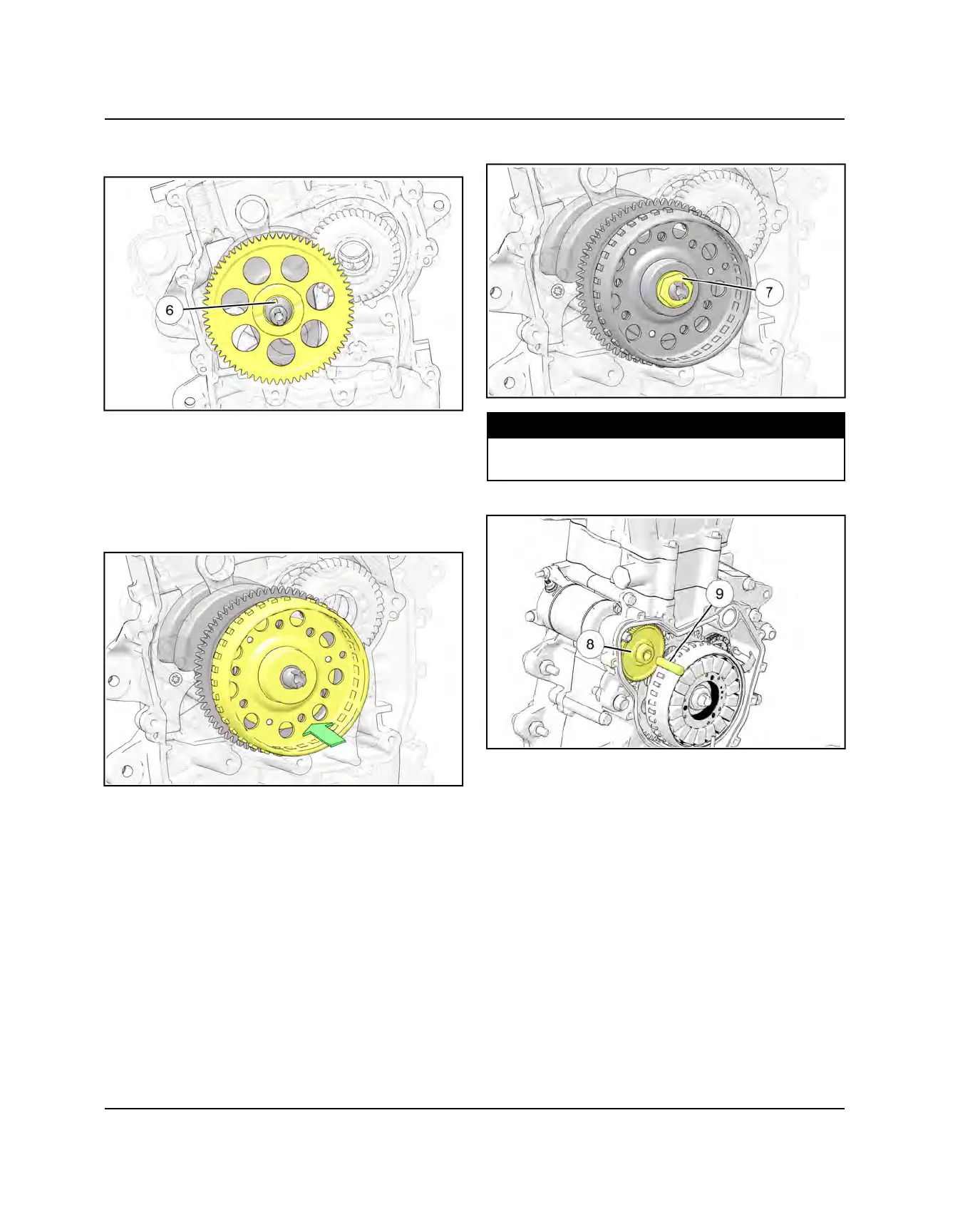

5. Fully install starter gear onto the crankshaft as
shown.
6. Align the flywheel keyway with flywheel key on the
crankshaft.
7. Thoroughly clean the crank taper with alcohol.
8. By hand, lightly press the flywheel inward while
rotating the starter gear counter clock-wise. Fully
install the flywheel until seated on the crankshaft
taper.
9. Install the flywheel washer.
10. Hold flywheel with commercially available strap
wrench.
11. Torque new flywheel nut
u
to specification.
TORQUE
Flywheel Retaining Nut:
133 ft-lbs (180 Nm)
12. Install starter idler gear
i
and shaft
o
.
