5
9928485 R01 - 2017-2018 RANGER 500 / 570 Service Manual
© Copyright Polaris Industries Inc.
5.23

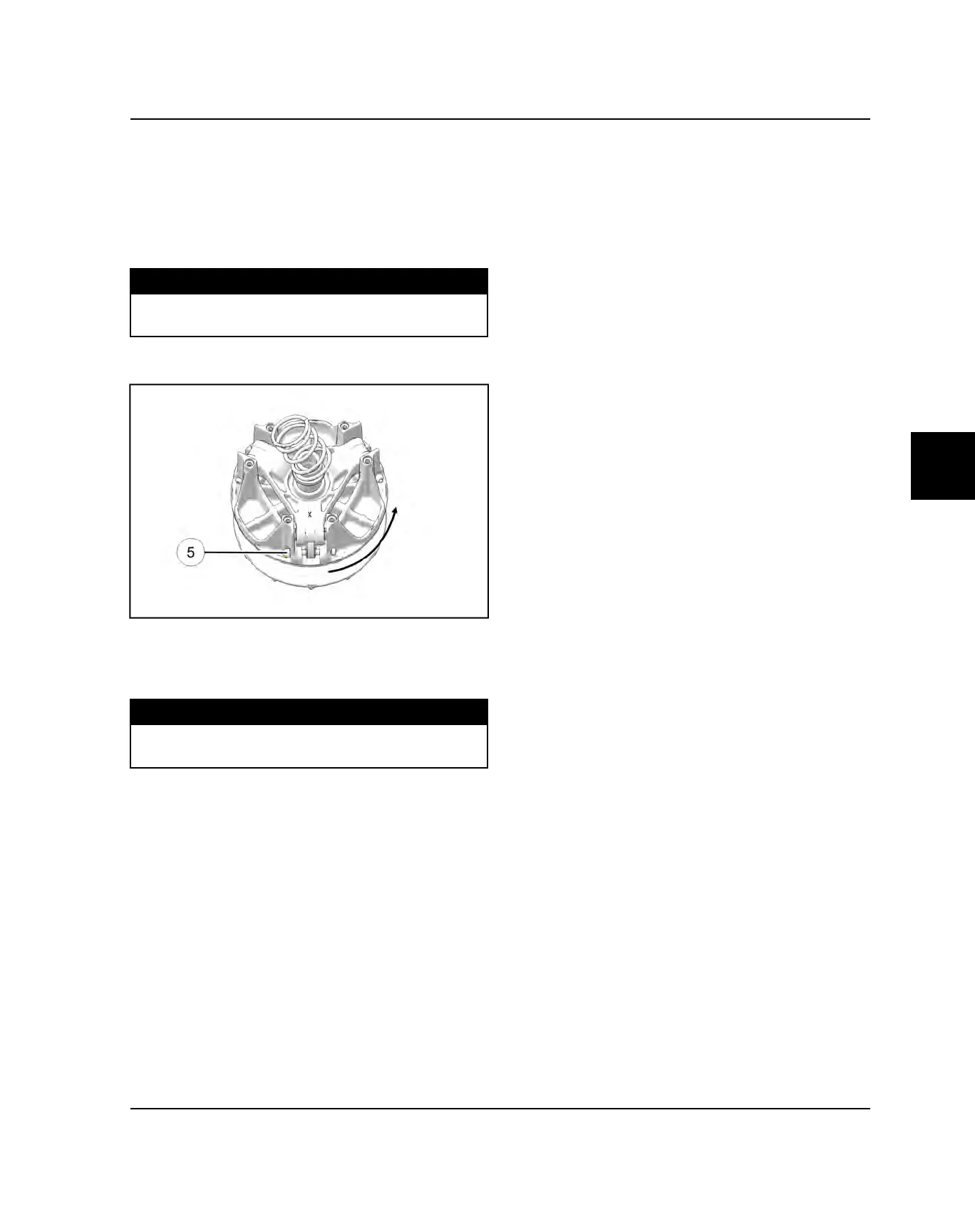

3. Compress spider buttons for each tower and install
spider
q
, making sure that “X”, or the marks that
were made earlier, on spider aligns with “X”, or the
marks that were made earlier, in moveable sheave.
4. Torque spider to specification using the holding
fixture and spider tool. Torque with smooth motion to
avoid damage to the stationary sheave.
TORQUE
Drive Clutch Spider:
290 ft-lbs (393 Nm)
5. Install shift weights using new lock nuts
t
on the
bolts.
6. Reinstall clutch spring.
7. Reinstall cover, aligning “X” mark with other marks.
8. Torque cover bolts evenly to specification.
TORQUE
Drive Clutch Cover Screw:
8 ft-lbs (10 Nm)
PVT SYSTEM
