6
9928485 R01 - 2017-2018 RANGER 500 / 570 Service Manual
© Copyright Polaris Industries Inc.
6.29

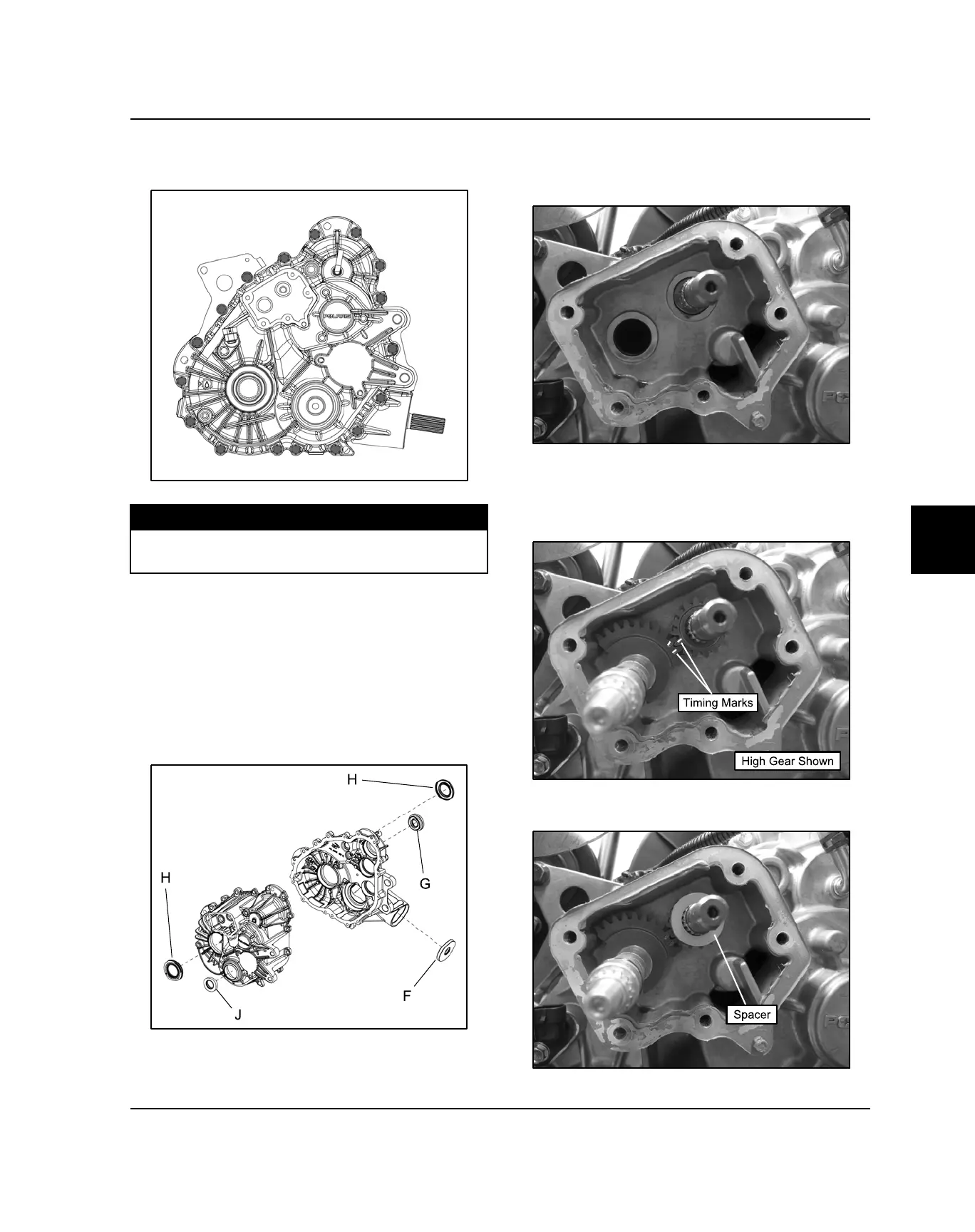

29. Install the transmission case cover and retaining
bolts. Torque bolts to specification.
TORQUE
Transmission Case Bolts:
18 ft-lbs (24 Nm)
30. Install new seals into the transmission case halves.
• The snorkel shaft seal (F), should be pressed in until it
seats against the housing counter-bore.
• The input shaft seal (G), should be pressed in until it
seats flush with the housing.
• The rear output shaft seals (H) and pinion shaft seal
(J) can be installed using a standard bushing
installation tool. Seals should be installed just past the
case lead-in chamfer (.070" or 1.8 mm from outer face
of bore).
31. Thoroughly clean the shift shaft housing. Be sure
the transmission is in High gear prior to
reassembly.
32. Install the sector gear (16T) onto the shift drum shaft.
Install the shift shaft assembly and sector gear (11T)
into the bushing pocket on the left side. Align the
timing marks on the gears as shown.
33. Install the spacer onto the shift drum shaft.
TRANSMISSION
