7.11

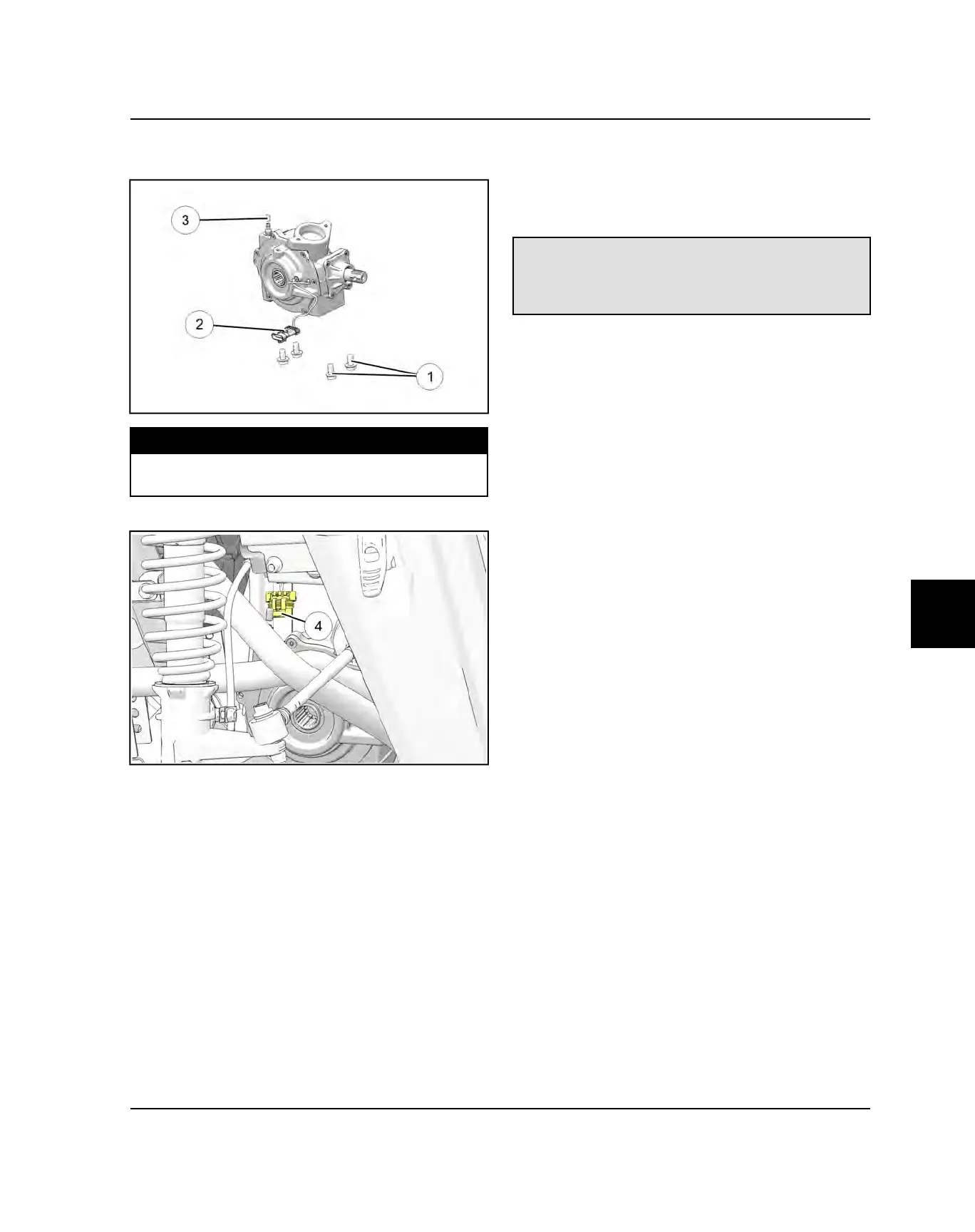

4. Install the vent line (Item 3) and attach wire harness
(Item 2) to the retaining dart.
TORQUE
Front Gearcase Mounting Bolts:
33 ft-lbs (56 Nm)
5. Connect the AWD wire harness (Item 4).
6. Refer to “FRONT DRIVE SHAFT - Drive Shaft
Installation” and install both front drive shafts into the
gearcase.
7. Add the proper lubricant to the front gearcase. Refer
to Chapter 2 for fluid fill and change information.
Polaris Demand Drive
(PN 2877922)
Front Housing Capacity
6.7–7.6 fl. oz. (200–225 ml)
FINAL DRIVE
To Next Page
