7.30
9928485 R01 - 2017-2018 RANGER 500 / 570 Service Manual
© Copyright Polaris Industries Inc.

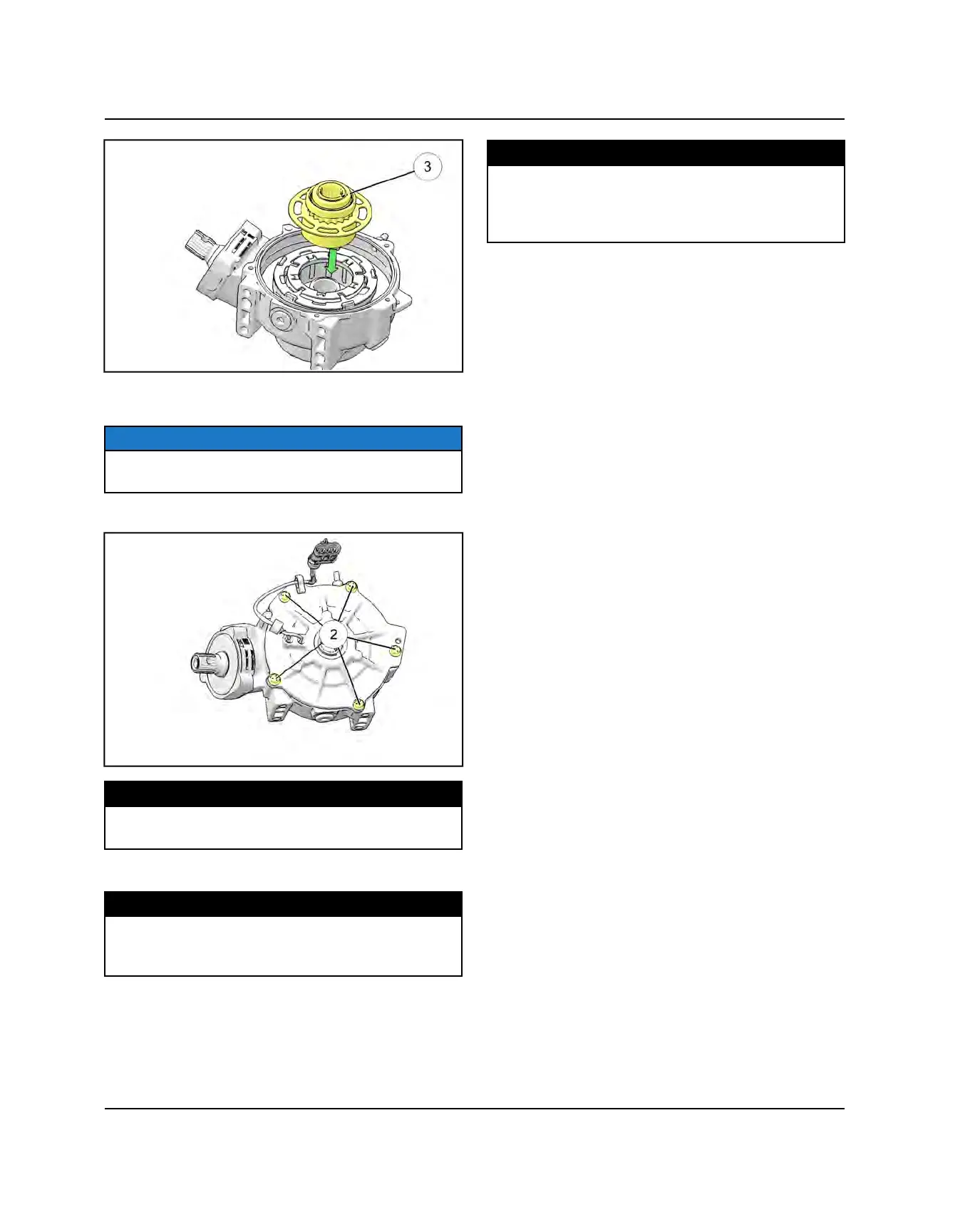

14.Install the cover plate assembly with a new o-ring
onto the gearcase.
NOTE
Verify the square O-ring is placed flat on the cover
surface. If the O-ring is twisted, fluid leaks may occur.
15.Torque the cover plate bolts
w
to specification.
TORQUE
AWD Cover Screws:
8 ft-lbs (11 Nm)
16.Fill the gearcase with fluid.
FLUID CAPACITY
Demand Drive
Hub Fluid
8.97 oz. (265 ml)
17.Install the drain plug. Torque to specification.
TORQUE
Fill Plug:
8-10 ft-lbs (11-14 Nm)
Drain Plug:
11 ft-lbs (15 Nm)
FINAL DRIVE
