Polaris RZR 170 2009 - Service Panel (Seat Shield) Removal; Console Cover Removal

5.6
BODY / SUSPENSION / STEERING

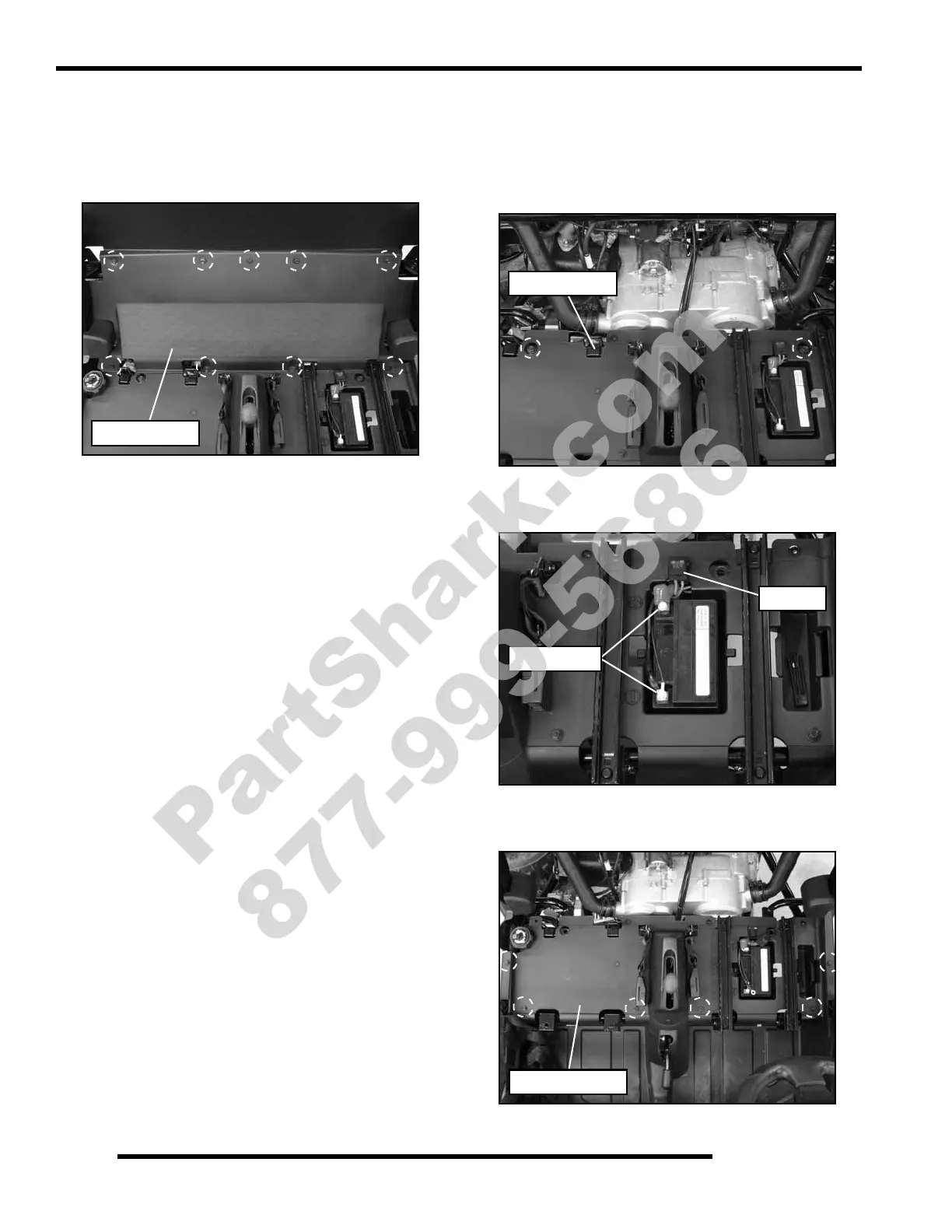

Service Panel (Seat Shield) Removal
1. Remove the seats (see “Seat Removal”).
2. Remove the (7) bolts and (2) push rivets retaining the
service panel.
3. Disengage the service panel from the sides of the rear cab
and remove the panel from the vehicle.
Console Cover Removal
1. Remove the seats (see “Seat Removal”).
2. Remove the service panel (see “Service Panel Removal”).
3. Remove the (2) bolts retaining the seat support to the frame.
4. Disconnect the battery leads and unhook the fuse holder
from the console cover.
5. Remove the (4) bolts and (3) push rivets retaining the
console cover.
Service Panel
Seat Support
Disconnect
Unhook
Console Cover
