CVT / TRANSMISSION
SPECIFICATIONS / TOOLS
Torque Specifications

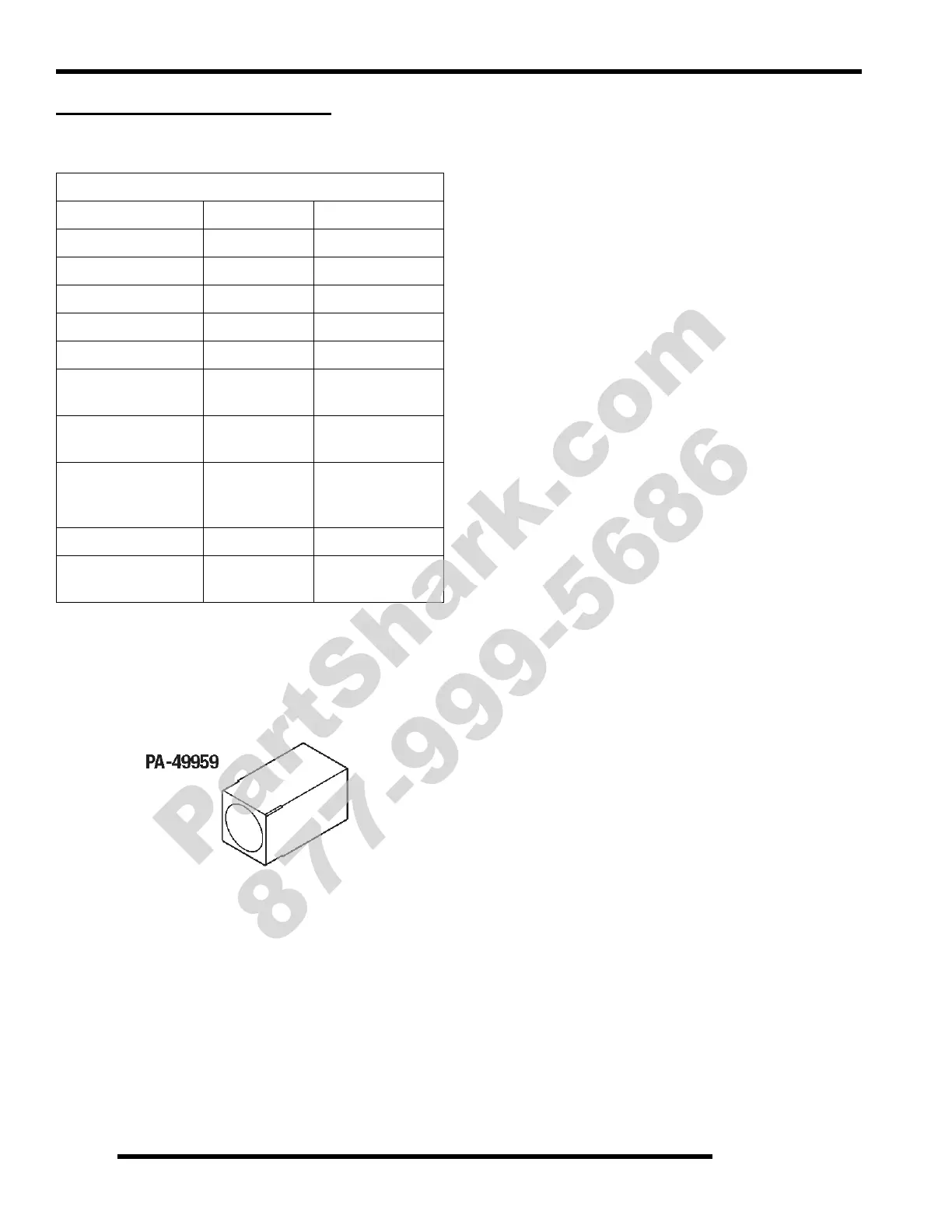

Special Tools
Output Shaft Collar Nut Socket
TRANSMISSION TORQUE SPECIFICATIONS
Fastener Thread Size Ft. Lbs. (Nm)
CVT Cover Bolts 6mm 6-8 (8-11 Nm)
CVT Drain Plug 6mm 6-8 (8-11 Nm)
Drive Clutch Nut 7/16 - 20 29 (39 Nm)
Driven Clutch Nut 7/16 - 20 40 (55 Nm)
Output Shaft Cover 6mm 6-8 (8-11 Nm)
Output Shaft
Housing Screws
8mm 12 (16 Nm)
Oil Drain Bolt
(Crankcase)
14mm 18 (18-23 Nm)
Output Shaft Collar
Nut
-
72 (98 Nm)
Shimming
Required
Shift Detent Bolt 10mm 14 (19 Nm)
Transmission
Cover Bolts
6mm 6-8 (8-11 Nm)
