3.36
ENGINE

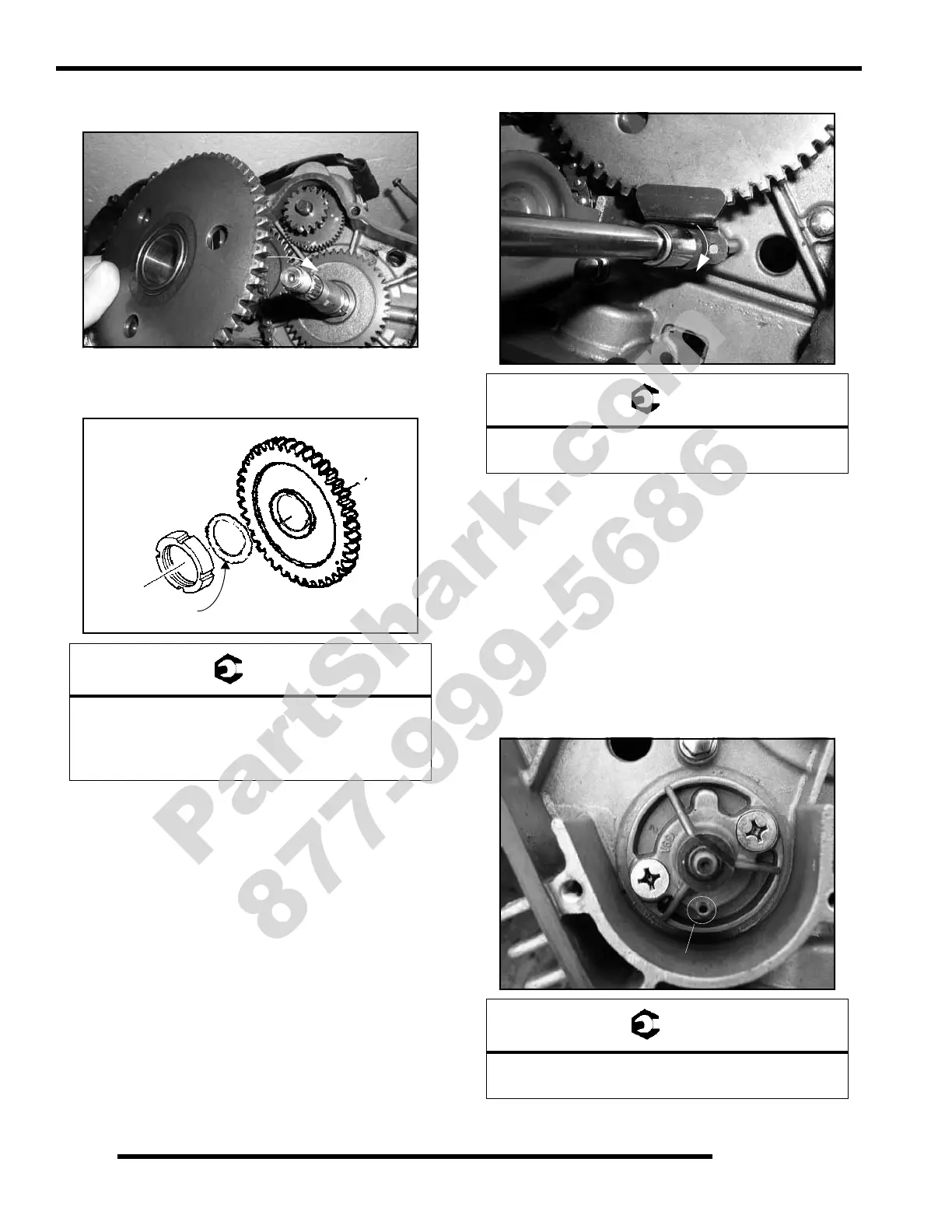

5. Install the Starter Drive one-way gear assembly, washer
and slotted nut.
6. Using Slotted Nut Socket PA-49935, tighten the crank shaft
nut to the specified torque. NOTE: Slotted nut is left hand
threaded.
7. Install the baffle plate and torque to specification.
Oil Pump and Chain Installation
NOTE: Oil pump is not a serviceable assembly. Do
not disassemble pump. Replace entire component.
1. Inspect the oil pump sealing surface on the crankcase.
Apply a liberal amount of engine oil to the surfaces and
pump.
NOTE: Do not use gasket sealer on the pump
mating surfaces.
2. Install oil pump as shown. Install and torque screws to
specification.
Crankshaft Slotted Nut Torque:
43 ft. lbs. (59 Nm)
Special Tool:
PA-49935
Baffle Plate Screw Torque:
5-7 ft. lbs. (7-9 Nm)
Oil Pump Cover Screw Torque:
4-5 ft. lbs. (5-7 Nm)
Install with the oil galley pointing down
