5.10
BODY / SUSPENSION / STEERING
CAB FRAME

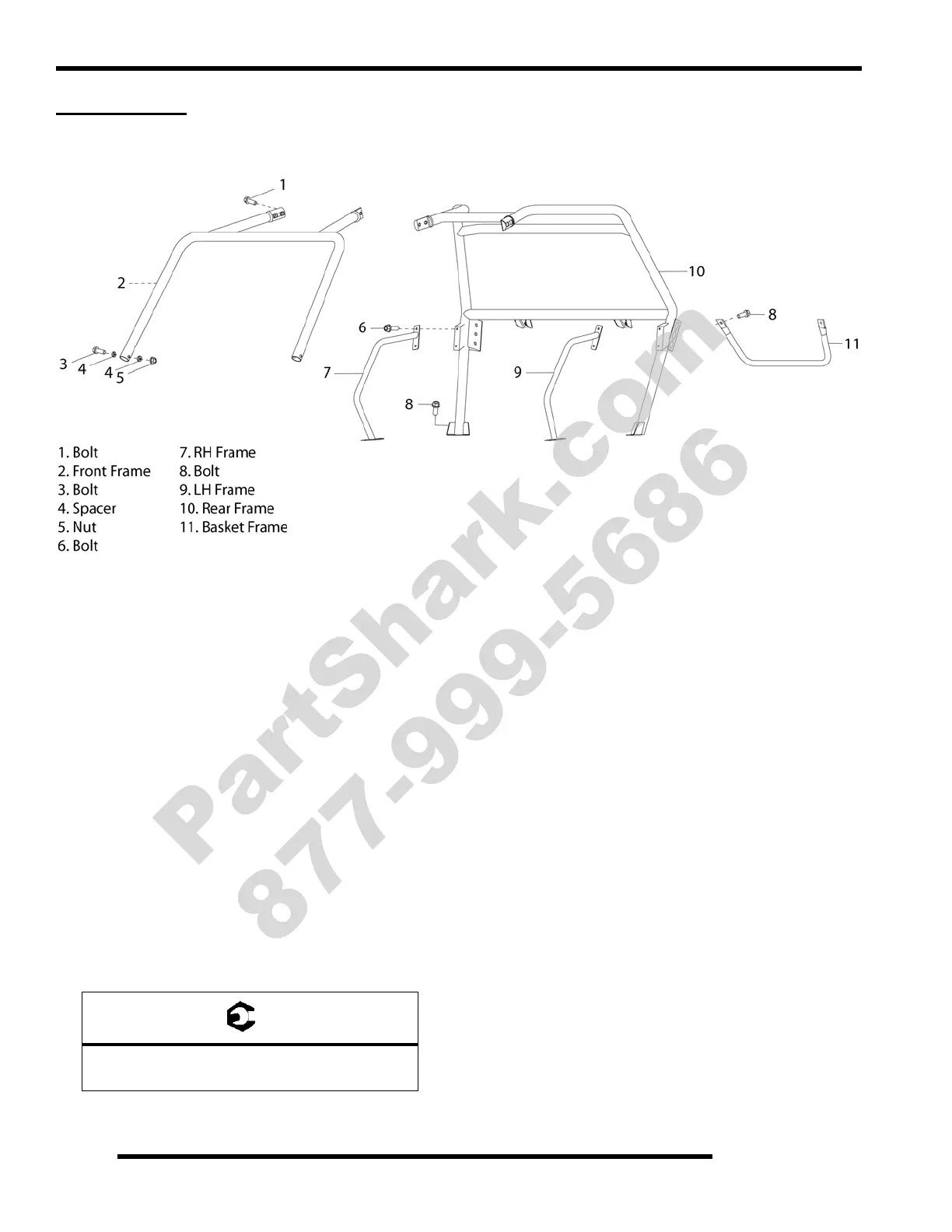

Exploded View
Cab Frame Assembly
1. Install the rear cab frame to the mounting brackets at each
side of the vehicle. Loosely install the four bolts and
washers.
2. Position the front cab frame onto the front cab mounting
posts. Align the two frames at the top joints and install the
Allen bolts using a 6 mm Allen wrench.
3. Install the front cab frame mounting hardware with the bolt
and cam to the outside of the frame and the nut and washer
to the inside.
4. Install the side bars (LH or RH frame) to the mounting
brackets at the rear frame and hip bars. Install the side nets
according to the procedure listed in the Owner’s Manual.
5. Attach the basket frame to the rear frame if removed.
6. Torque all cab frame fasteners to specification.
7. Refer to the Owner’s Manual for the “Cab Nets and Storage
Bag” installation procedure.
Cab Frame Fasteners:
20 ft. lbs. (27 Nm)
