Polaris RZR 170 2009 - Crankshaft One Way Gear; Drive Sprocket Removal and Inspection

3.28

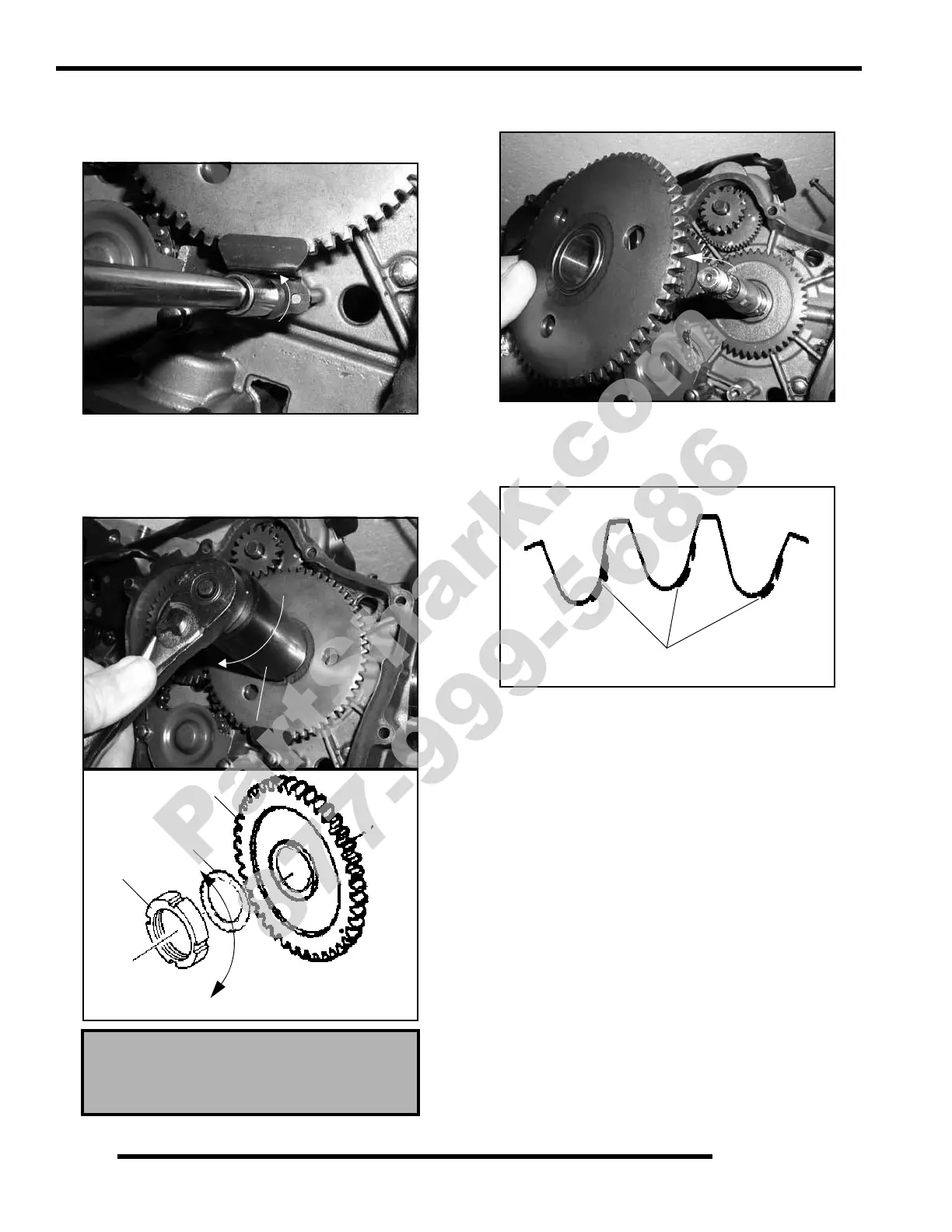

ENGINE
Crankshaft One Way Gear / Drive Sprocket
Removal and Inspection
1. Remove the baffle plate.
2. Using the Slotted Nut Socket PA-49935, remove the
crankshaft slotted nut (C) and washer (B) from the starter
drive one-way gear assembly (A).
NOTE: Slotted nut is left-hand thread.
3. Remove the starter drive one-way gear assembly (A) from
the crankshaft.
4. Remove drive sprocket (D) and woodruff key from the
crankshaft.
5. Inspect sprocket teeth of both gears for wear or damage.
6. Inspect woodruff key for wear. Replace if damaged.
7. Replace any worn or damaged parts.
Slotted Nut Socket Tool
PA-49935
Removal
PA-49935
A
B
Remove
Install
C
PA-49959
A
D
Inspect for Areas of
Tooth Wear or Damage
