7.7
CVT / TRANSMISSION
7

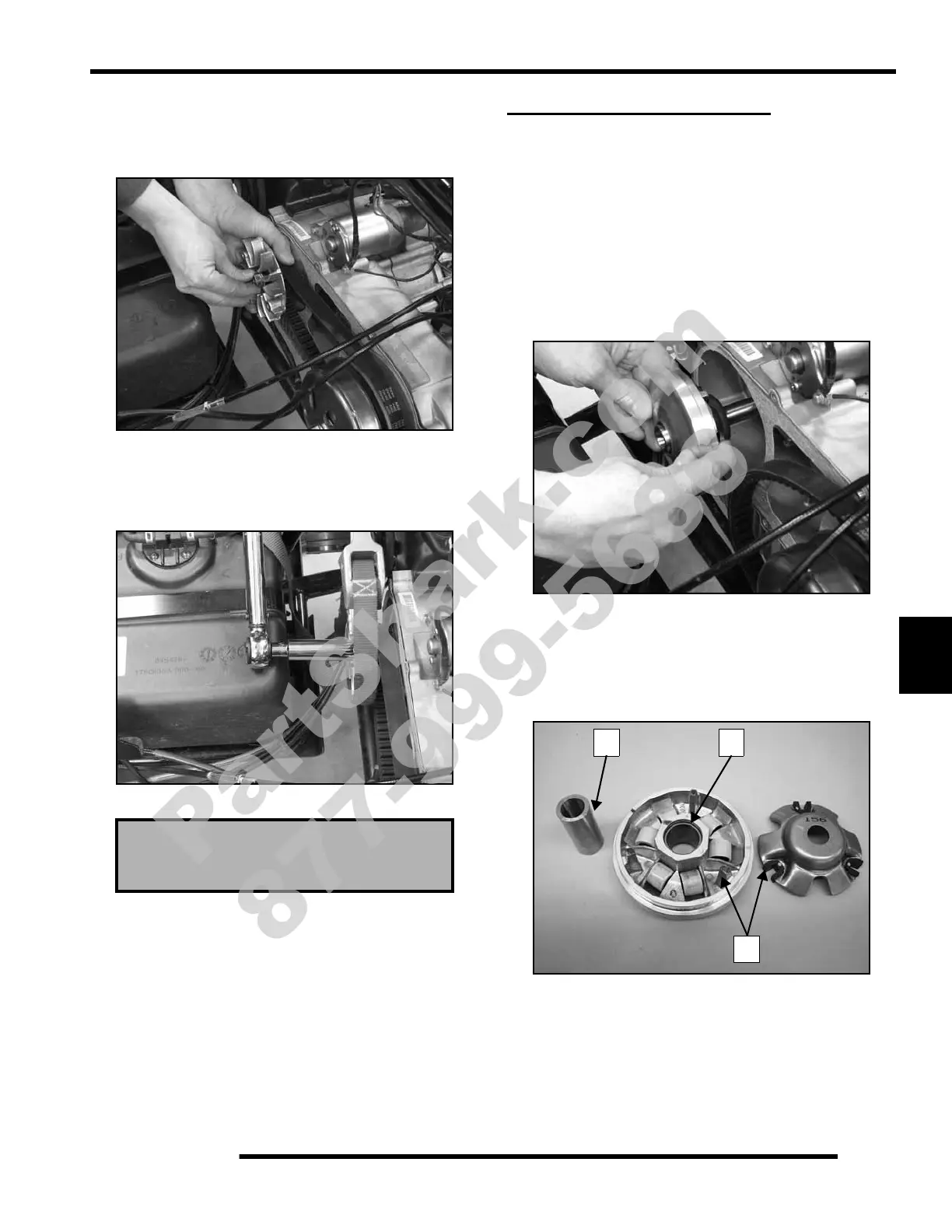

5. Hold belt as high as possible on sheaves. Install stationary
sheave over shaft splines. Start nut and tighten finger tight
while moving belt and sheave to ensure FULL engagement
of stationary sheave splines with shaft splines.
6. Hold stationary sheave with a strap wrench.
7. Tighten nut to specification.
DRIVE CLUTCH SERVICE
Drive Clutch Removal, Disassembly and
Inspection
1. Remove drive belt. See “Drive Belt Removal” on page 7.6.
2. Remove stationary sheave from splines of shaft, holding
moveable sheave and spacer inward.
3. Hold moveable sheave, spacer sleeve, and cam plate
together. Slide off crankshaft as an assembly to prevent
rollers from falling out of cam plate.
4. Inspect surface of sleeve (A) and bushing (B) for wear,
pitting, or damage.
5. Inspect cam plate guides and both sides of guide posts on
moveable sheave for wear. Replace guides as a set.
Drive Clutch Nut Torque
29 ft. lbs. (39 Nm)
