Starter Drive One-way Clutch
Removal and Inspection
1. The cooling shroud, stator housing and flywheel must be
removed prior to accessing the one-way starter drive.
2. Pull the starter drive assembly from the crankshaft. Inspect
the bearing surfaces and drive teeth for signs of wear or
gouging. Replace the one-way clutch as an assembly if it
is not working properly. Assembly should turn in one
direction only.
NOTE: One-way clutch components are not
serviceable. Replace the component as an
assembly.
3. Do not add specialized lubricants or greases to the bearing
or one-way components, as this may cause undesirable
operation.
Balance Shaft Sprocket
Removal and Inspection
1. The cooling shroud, stator housing and flywheel and
starter drive one-way gear must be removed prior to
accessing the balance shaft gear and oil pump gear
2. Using Slotted Nut Socket PA-47344, remove the balance
shaft slotted nut and washer.
NOTE: Slotted nut is right-hand thread.

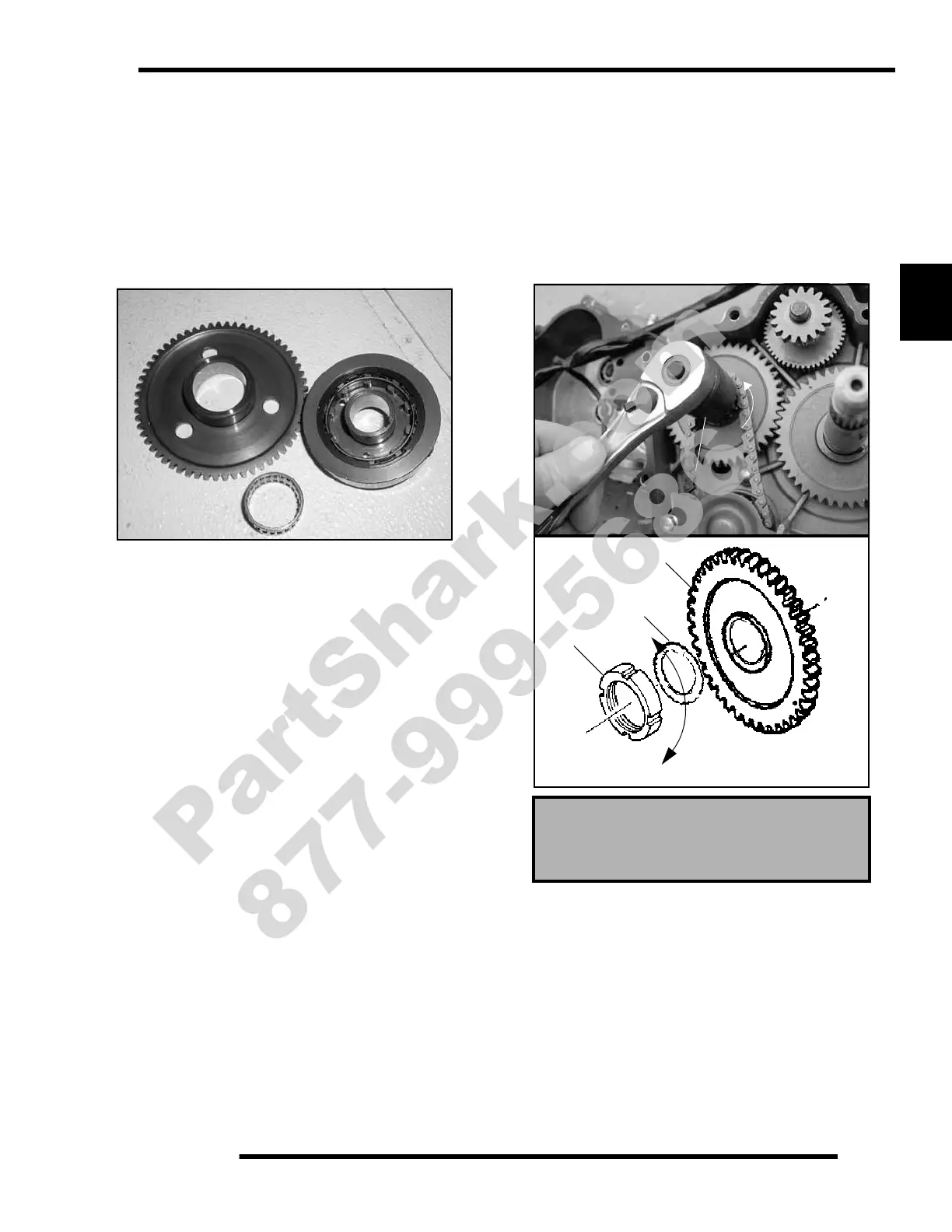

Drive Gear
One-way Assembly
Bearing
Slotted Nut Socket
PA - 47344
