Polaris RZR 170 2009 - Stator Installation; Stator Housing Installation

3.47
ENGINE
3

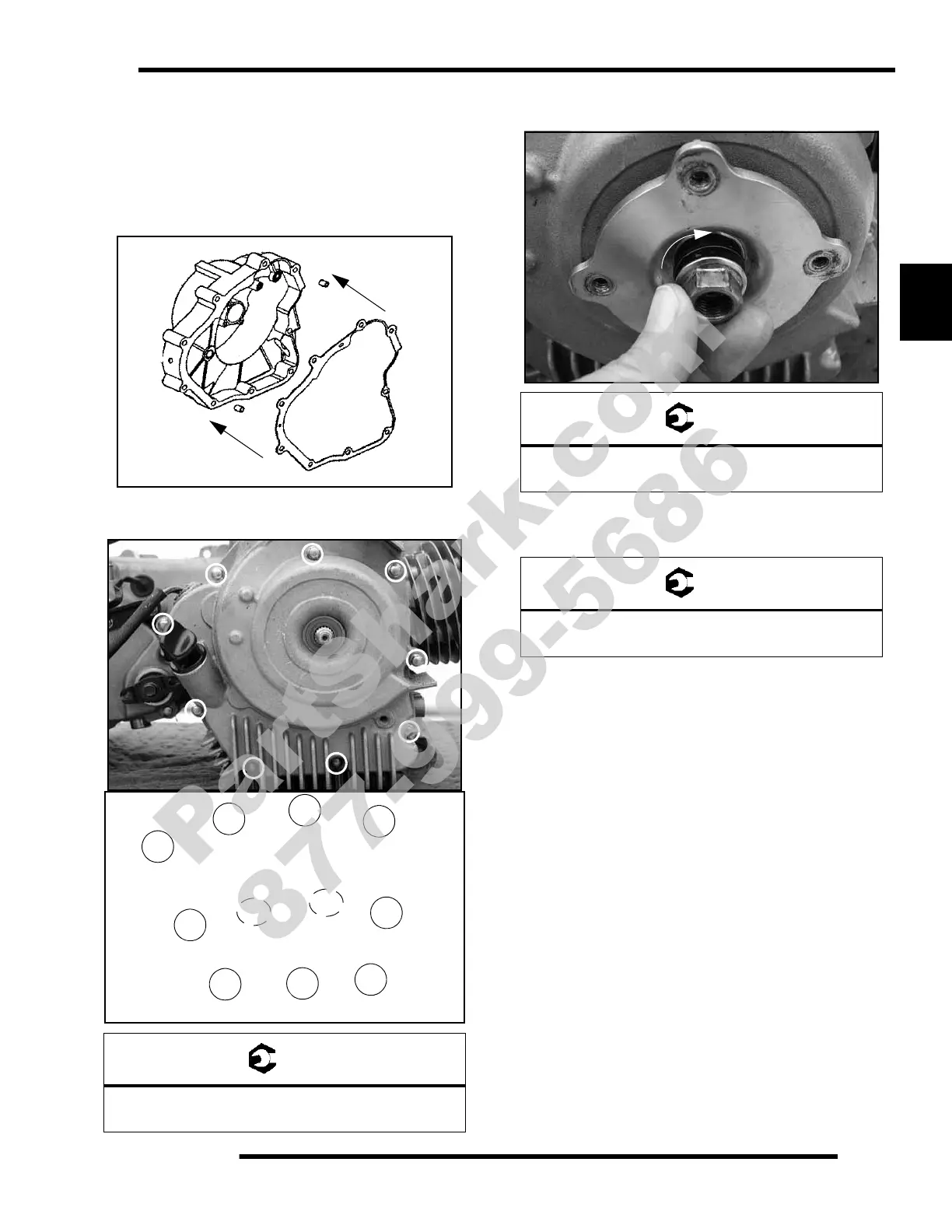

Stator Housing Installation
NOTE: The stator, flywheel, starter drive, and stator
can be serviced with the engine in the frame.
1. Apply a small amount of Crankcase Sealant (PN 2871557)
to the mounting surface and install a new gasket. Install the
dowel pins if removed.
2. Install the housing. Torque bolts in sequence to
specification.
3. Install the fan hub, washer, and flywheel nut. Torque the
flywheel nut to specification.
4. Install the fan and fan bolts. Tighten bolts evenly to
specification.
5. Install the cooling shroud and tighten the fasteners
sufficiently. Use care not to over-tighten.
= T
Stator Housing Bolt Torque:
7-8 ft. lbs. (9-11 Nm)
3
4
5
6
7
8
9
10
11
RH Crankcase - Stator Cover
(#1, #2 RH case bolts)
= T
Flywheel Nut Torque:
43 ft. lbs. (58 Nm)
= T
Fan Bolt Torque:
4-5 ft. lbs. (5-7 Nm)
