6.19
BRAKES
6

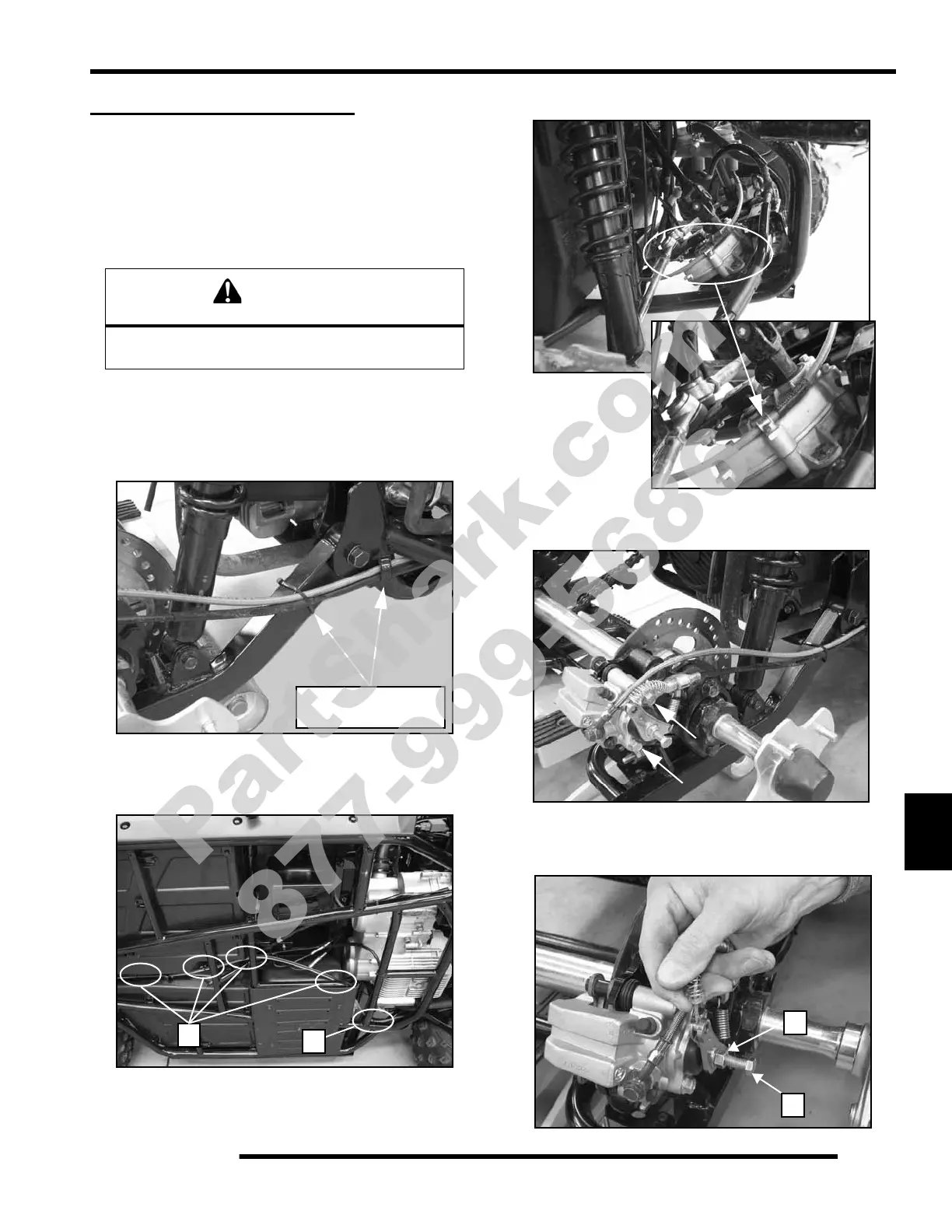

REAR CALIPER SERVICE
Rear Caliper Removal
NOTE: The caliper is not serviceable. The caliper
must be replaced as an assembly.
1. Elevate and safely support rear of vehicle.
2. Remove right wheel.
3. Clean caliper, brake line, and banjo bolt before removal,
and note how rear brake line fitting is oriented on caliper.
If brake line is being replaced, note how brake line is routed
and secured.
4. Tie straps - secure brake line with throttle cable in areas (A).
Secure with parking brake cable to frame in area (B).
5. Front routing and clamp shown below.
6. Remove two bolts and separate parking brake lever arm
assembly from caliper or see NOTE below.
NOTE: The parking brake cable can be
disconnected by loosening jam nut (C) and backing
out adjuster bolt (D) a few turns.
Use care when supporting vehicle so that it does not
tip or fall. Severe injury may occur.
Brake line with park
brake cable.
