Polaris RZR 170 2009 - Page 87

3.43
ENGINE
3

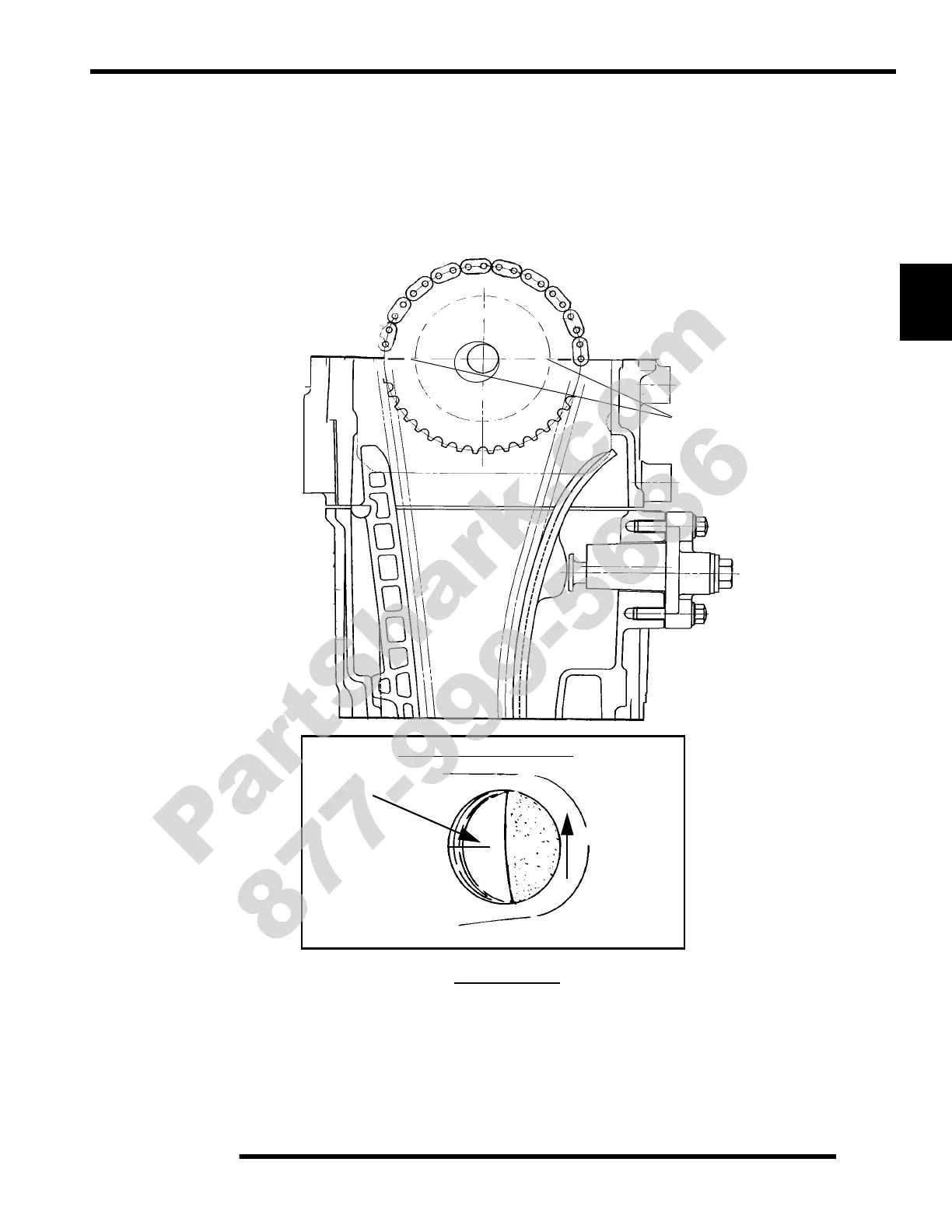

Method 2 - Camshaft Timing Using Flywheel TDC Mark
Sprocket marks aligned
with gasket surface at
TDC on compression stroke
(cam lobes facing downward)
Single TDC Mark Aligned
TDC Mark
Rotation
Cam Timing
(View through timing inspection hole)
Position crankshaft at TDC
