B11

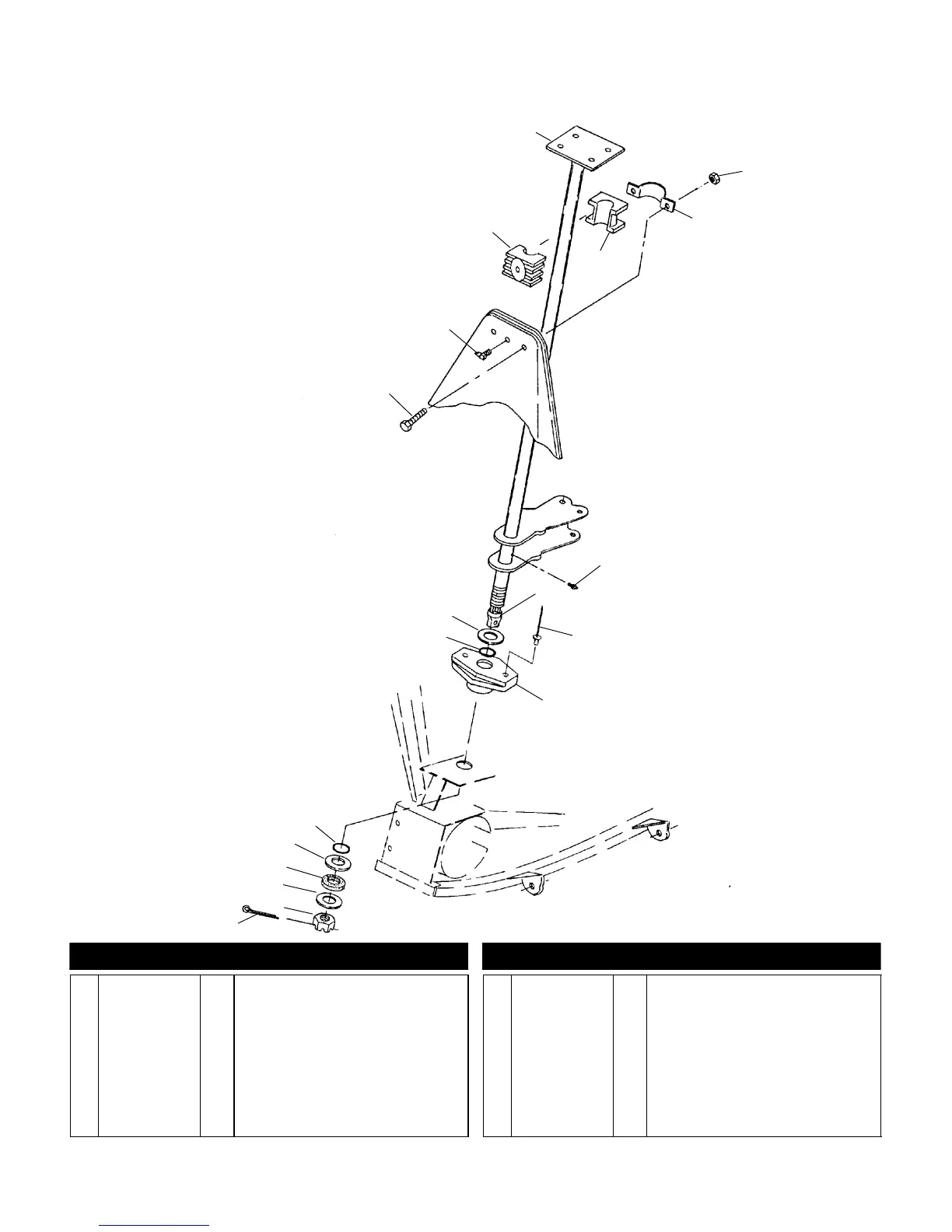

STEERING POST
Scrambler 500 A00BG50AA
1
16
15
14
2
3
4
13
9
12
5
6
10
5
5
8
11
6
7
Ref. Part No . Qty. Description Ref. Part No. Qty. Description
1 1843051 1 Asm., Steering Post (Incl. 12,13)
2 5433415 1 Bushing, Steering Console
3 7080510 1 Fitting, Lubrication, 90 Degree
4 7515321 2 Bolt
5 7555878 3 Washer
6 5410772 2 O-Ring
7 5431571 1 Spacer, Steering Post
8 7543203 1 Nut
9 7661633 1 Pin, Cotter
10 5431570 1 Bushing, Steering, Lower
11 7661632 2 Rivet
12 5431574 1 Plug, Grease, Steering
13 7080433 1 Fitting, Lubrication
14 5433416 1 Bushing, Steering, Upper
15 5222999-067 1 Bracket, Steering Bushing, Upper
16 7542324 2 Nut, Nylok
9/99
