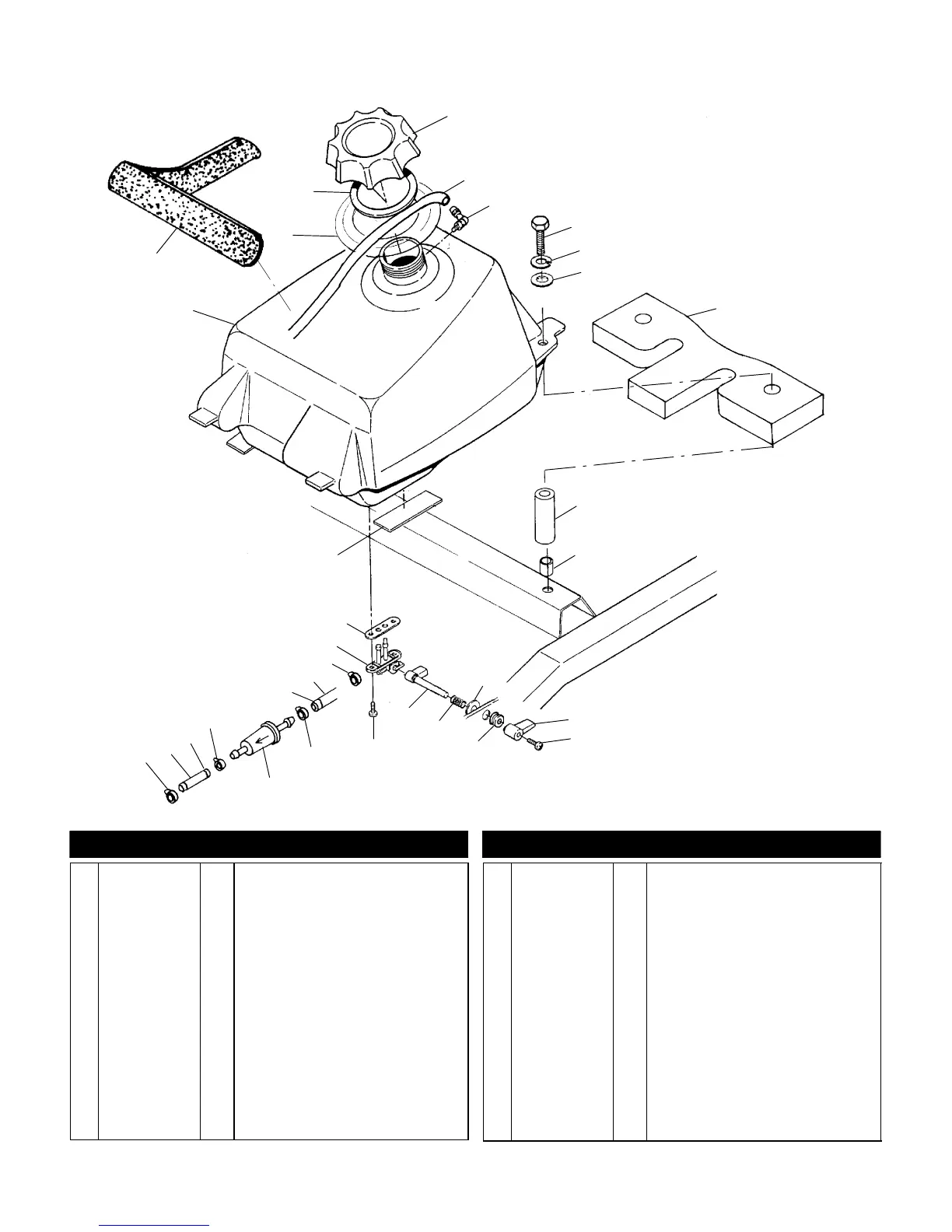

A14
FUEL TANK
Scrambler 500 A00BG50AA
12
6
7
8
11
15
16
20
18
14
19
25
26
27
1
4
5
9
10
21
24
22
17
21
23
23
3
13
24
2
21
21
Ref. Part No . Qty. Description Ref. Part No. Qty. Description
1 2511342
5432879
1
1
Asm., Fuel Tank (Incl. 7,20,25,26)
Tank, Fuel
2 5811527 1 Seal, Foam
3 5410842 1 Grommet, Fuel Tank
4 5810144 1 Gasket, Fuel Cap
5 5430725 1 Cap, Gas Tank
6 8360009-600 AR Line, Fuel
7 5431053 1 Vent, Tank
8 7512249 2 Screw
9 7552801 2 Washer, Spring Lock
10 7555859 2 Washer, Flat
11 5811526 1 Seal, Foam
12 5332457 2 Spacer
13 7542143 2 Insert
14 7555726 1 Washer, Flat
15 5431021 1 Lever, Fuel
16 7511840 1 Screw
17 5432291 1 Grommet
18 7041209 1 Spring, Lever, Compression
19 5431391 1 Extension, Fuel Lever
20 7515136 2 Screw
21 7080003 6 Clamp, Hose, Red
22 2530009 1 Filter
23 8450080-27 1 Sheath, Foil, Laminated
24 8450040-600 1 Line, Fuel
25 7052190 1 Valve, Fuel
26 5810859 1 Gasket, Fuel Valve
27 8360026 2 Foam, Tape, Black
5/99
