Polaris SCRAMBLER 500 2000 - Swing Arm;Shock Mounting

C10

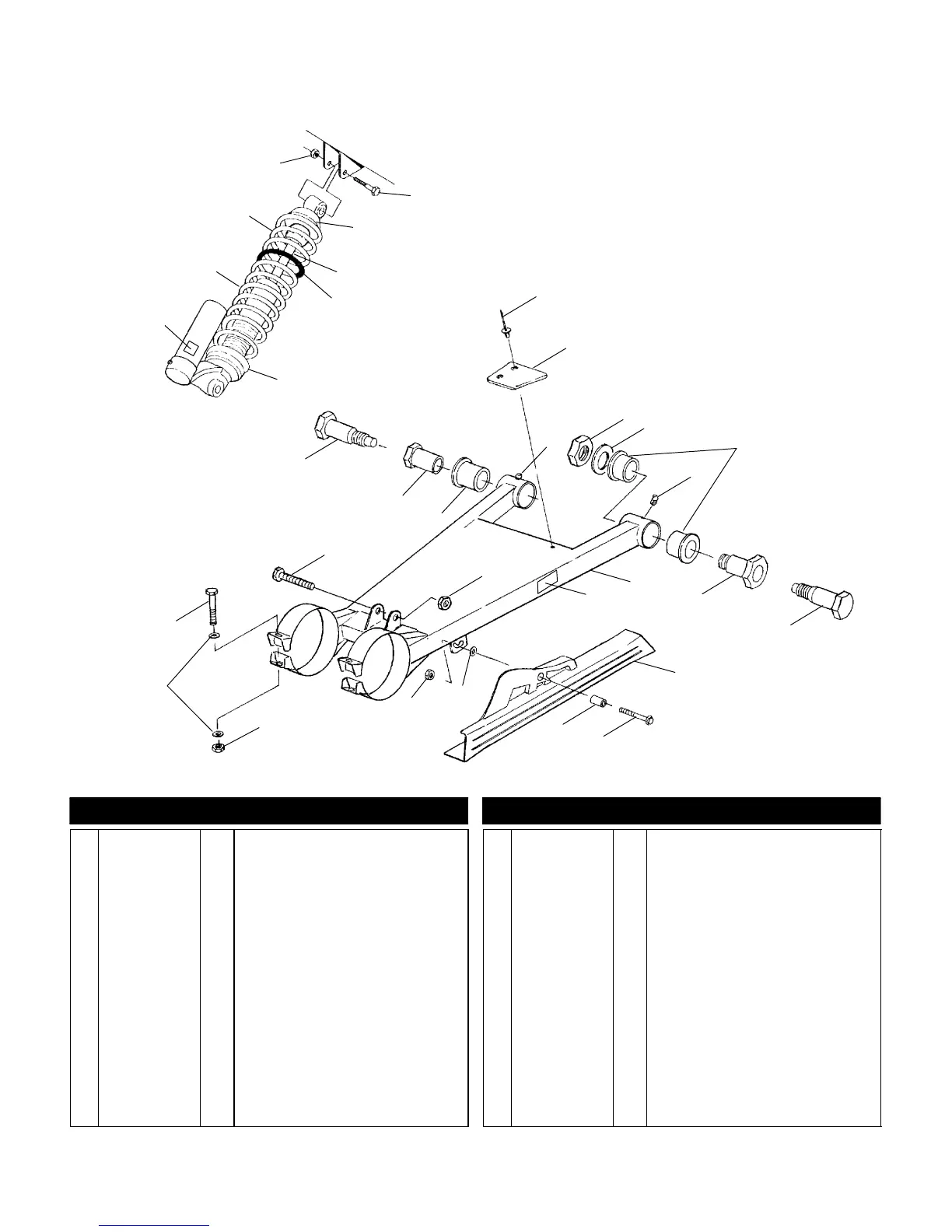

SWING ARM/SHOCK MOUNTING
Scrambler 500 A00BG50AA
9
8
2
7
4
6
3
1
28
10
11
15
12
18
29
16
30
17
13
14
24
23
22
21
20
27
26
25
12
16
1
19
5
Ref. Part No . Qty. Description Ref. Part No. Qty. Description
1 7542439 2 Nut, Nylok
2 7041865-067 1 Spring, Compression, Small
3 7041864-067 1 Spring, Compression
4 7075343 1 Decal - Warning, Fox Shock
5 1500278 1 Ring, Spring Preload
6 5433550 1 Spacer, Spring
7 7041867 1 Shock, Gas
8 5631045 1 Retainer, Spring
9 7515415 1 Screw
10 7661046 2 Rivet
11 5432727 1 Guide, Pad, Chain
12 7080510 2 Fitting, Lubrication
13 7547082 1 Nut
14 7556035 1 Washer, Flat
15 5433412 2 Bushing, Swing Arm, RH
16 5131697 2 Bolt, Pivot, Swing Arm
17 5131696 1 Bushing, Pivot, RH
18 1541395 1 Asm., Swing Arm (Incl. 12,15,29)
19 7078572 1 Decal - “Chain Free Play”
20 5432854 1 Guard, Chain
21 7515304 1 Screw
22 5332828 1 Bushing
23 7558402 1 Washer
24 7542321 1 Nut
25 7542503 2 Nut
26 7555883 4 Washer
27 7512576 2 Bolt
28 7517761 1 Screw
29 5433411 1 Bushing, Swing Arm, LH
30 5131695 1 Bushing, Pivot, LH
