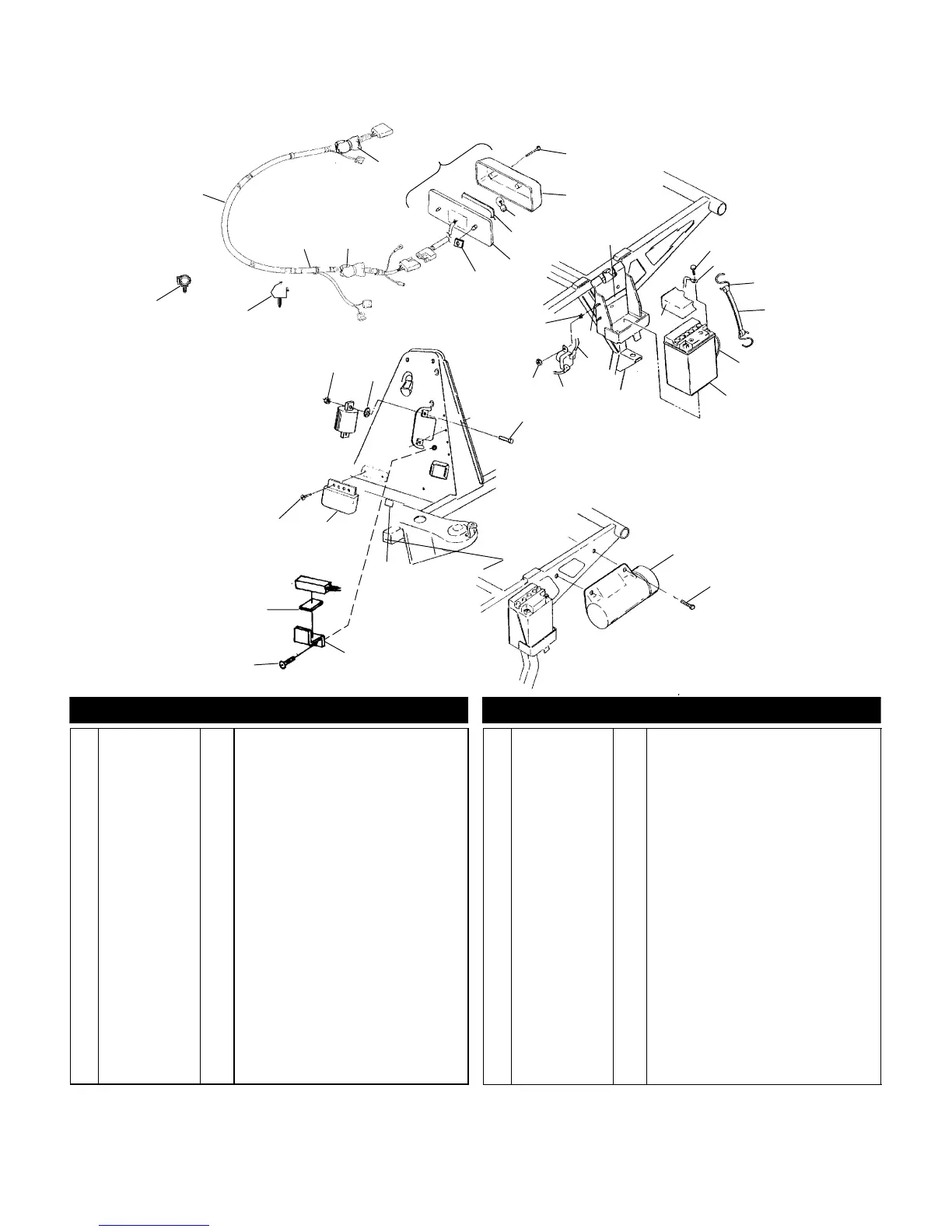

C9
ELECTRICAL/TAILLIGHT
Scrambler 500 A00BG50AA
1
2
3
5
7
10
9
6
11
8
12
24
25
26
28
29
33
34
23
24
22
12
14
15
16
17
18
19
20
21
13
28
31
30
32
27
4
Ref. Part No . Qty. Description Ref. Part No. Qty. Description
1 2460787 1 Harness, Main
2 7080138 3 Cable Tie
3 2434012 1 Breaker, Circuit, 20 AMP
4 2201795 1 Kit - Circuit Breaker, 10 AMP
5 2432038 1 Light, Tail/Brake (Incl. 6-10)
6 7512088 2 Screw
7 4032085 1 Lens
8 4030043 1 Bulb
9 4032086 1 Gasket
10 4032087 1 Backing
11 7670093 2 Clip
12 7571602 4 Washer
13 7512027 2 Screw
14 5810290 3 Pad, Battery
15 5431769 1 Cover, Battery
16 2200361 2 Kit - Battery Bolt
17 4010095 1 Cable, Battery/Engine, Black
18 7010032 2 Hook, Battery Strap
19 5410424 1 Strap, Battery Holddown
20 5432077 1 Tube, Vent
21 4140006 1 Battery
22 4010094 1 Cable, Battery/Solenoid, Red
23 4010093 1 Cable, Solenoid/Starter
24 7541925 4 Nut, Nylok
25 7512007 2 Bolt
26 7670109 2 Clip, Routing
27 4020149 4 Clip, Rosebud
28 7512024 3 Screw
29 4010195 1 Limiter, RPM, LR-83-3
30 5810317 1 Pad, Fuel Tank Bracket
31 5241416 1 Bracket, CDI
32 8360012 1 Trim, Edge
33 2620087
5431973
5811079
1
1
1
Asm., Tool Box
Cover, Tool Box Lid
Gasket
34 7512232 2 Screw
1/00
