D13

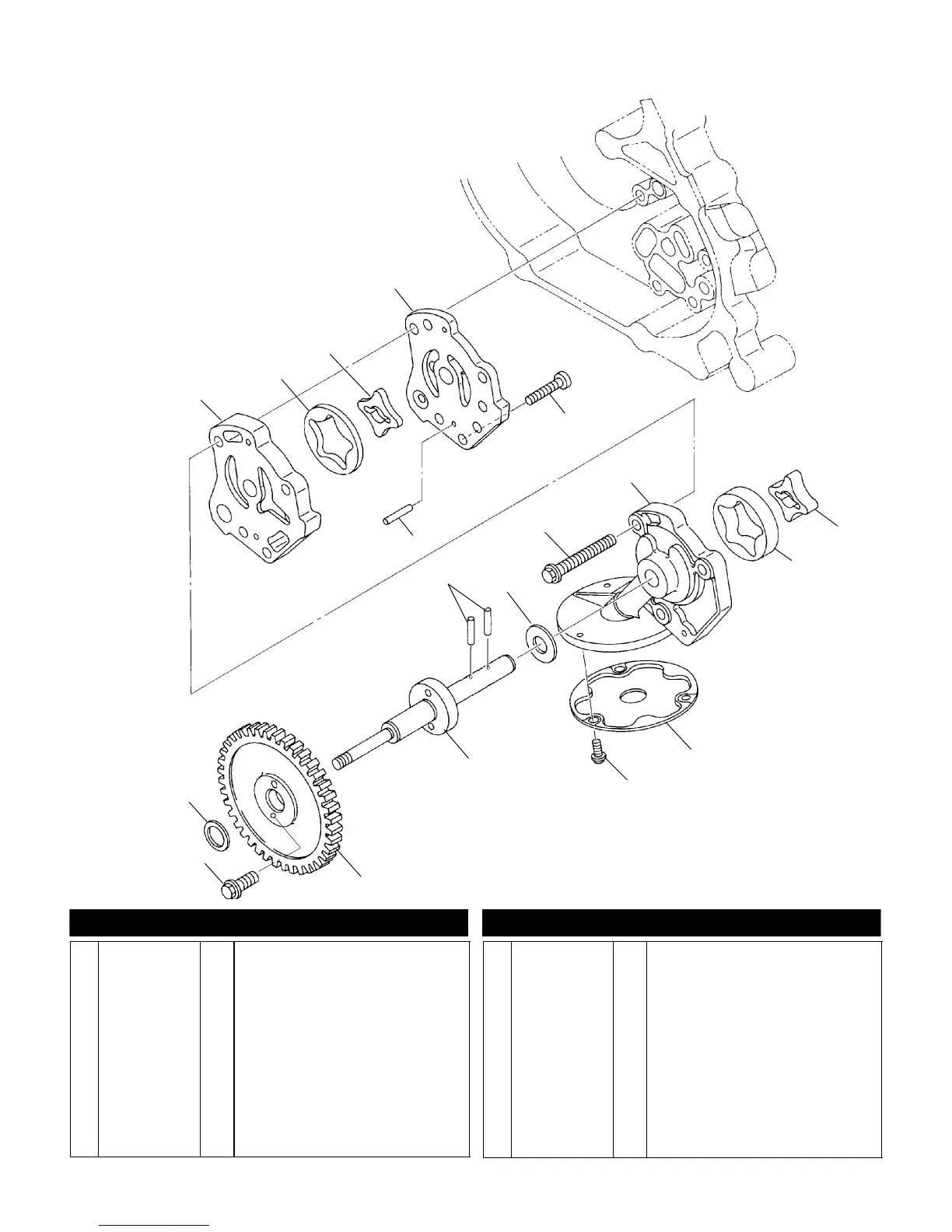

OIL PUMP
Scrambler 500 A00BG50AA
4
1
10
3
2
11
17
15
8
7
6
13
14
5
16
18
9
12
Ref. Part No . Qty. Description Ref. Part No. Qty. Description
1 3084946 1 Pump, Oil, Case 2
2 3084949 1 Rotor, Outer (Feed)
3 3084948 1 Rotor, Inner (Feed)
4 3085817
3084945
1
1
Asm., Oil Pump (Incl. 1-8,10-15)
Pump, Oil, Case 1
5 3085535 1 Screw
6 3084955 2 Pin, Dowel
7 3084954 2 Pin, Dowel
8 3084953 1 Washer
9 3084962 3 Bolt and Washer
10 3084947 1 Pump, Oil, Case 3
11 3084950 1 Rotor, Inner
12 3084951 1 Rotor, Outer
13 3084956 1 Unit, Oil Strainer
14 3084205 3 Screw and Washer
15 3085818 1 Shaft, Pump
16 3085859 1 Gear 2, Pump
17 3085820 2 Bolt, Flange
18 3084959
3084960
3084961
AR
AR
AR
Spacer (0.8)
Spacer (1.0)
Spacer (1.2)
5/99
