Polaris SCRAMBLER 500 2000 - Cooling System Components

A9

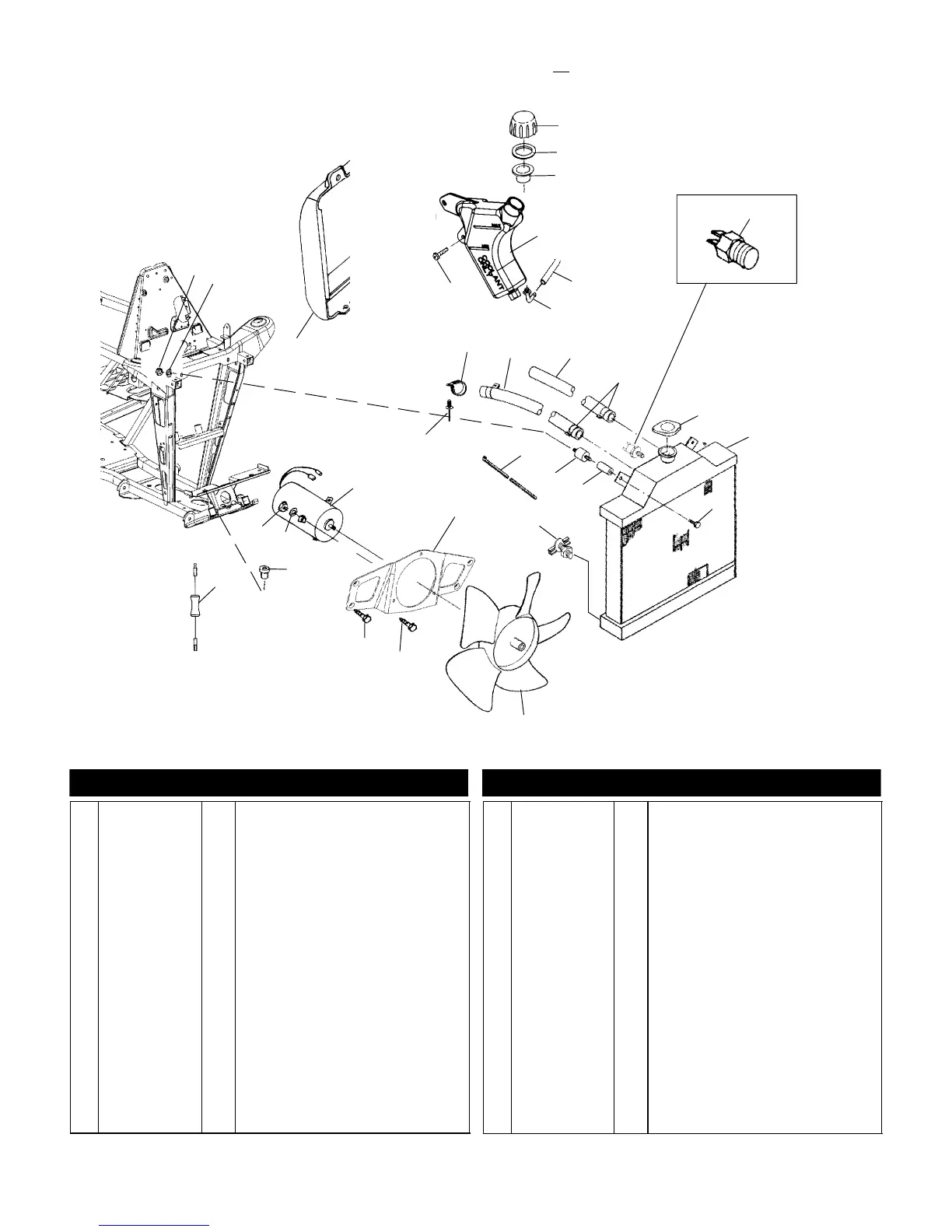

COOLING SYSTEM
Scrambler 500 A00BG50AA
14
12
15
27
16
13
1
2
21
20
18
17
29
31
30
25
24
26
28
19
3
6
8
9
10
4
5
7
22
11
23
32
Ref. Part No . Qty. Description Ref. Part No. Qty. Description
1 7542122 2 Nut, Nylok
2 7558301 2 Washer, Flat
3 5432593 1 Shroud, Fan, ATV
4 7512084 2 Screw
5 5430743 1 Cap, Overflow, Drilled
6 5810279 1 Gasket, Overflow Cap
7 5431895 1 Plug, Cap
8 2520165
5433410
1
1
Asm., Surge Tank w/Fitting
Tank, Surge
9 8450003-1525 1 Line, Fuel
10 7052065 1 Fitting, Barbed, 90 Degree
11 7080869 1 Clamp
12 8450050-63 1 Hose, Lower
13 5411108 1 Hose, Upper
14 7080614 2 Clamp, Hose
15 4010202 1 Switch, Thermal
16 2511189 1 Cap, Pressure
17 1240015 1 Radiator, U-Flow
18 7515133 2 Bolt
19 7052181 1 Valve, Drain Cock
20 5020937 2 Spacer, Mount, Radiator
21 3110032 2 Mount, Rubber, Radiator
22 7080492 1 Cable Tie
23 7670090 1 Clip, Dart
24 4170013 1 Motor, Fan
25 5241355-067 1 Br acket, Cooling Fan
26 5242550 1 Blade, Fan
27 7517475 3 Screw
28 7512232 4 Screw
29 5410584 2 Bushing, Mount, Lower Radiator
30 7558201 3 Washer, Flat
31 7547004 3 Nut, Nylok
32 4010369 1 Breaker, Circuit
3/00
