Polaris SCRAMBLER 500 2000 User Manual

D3

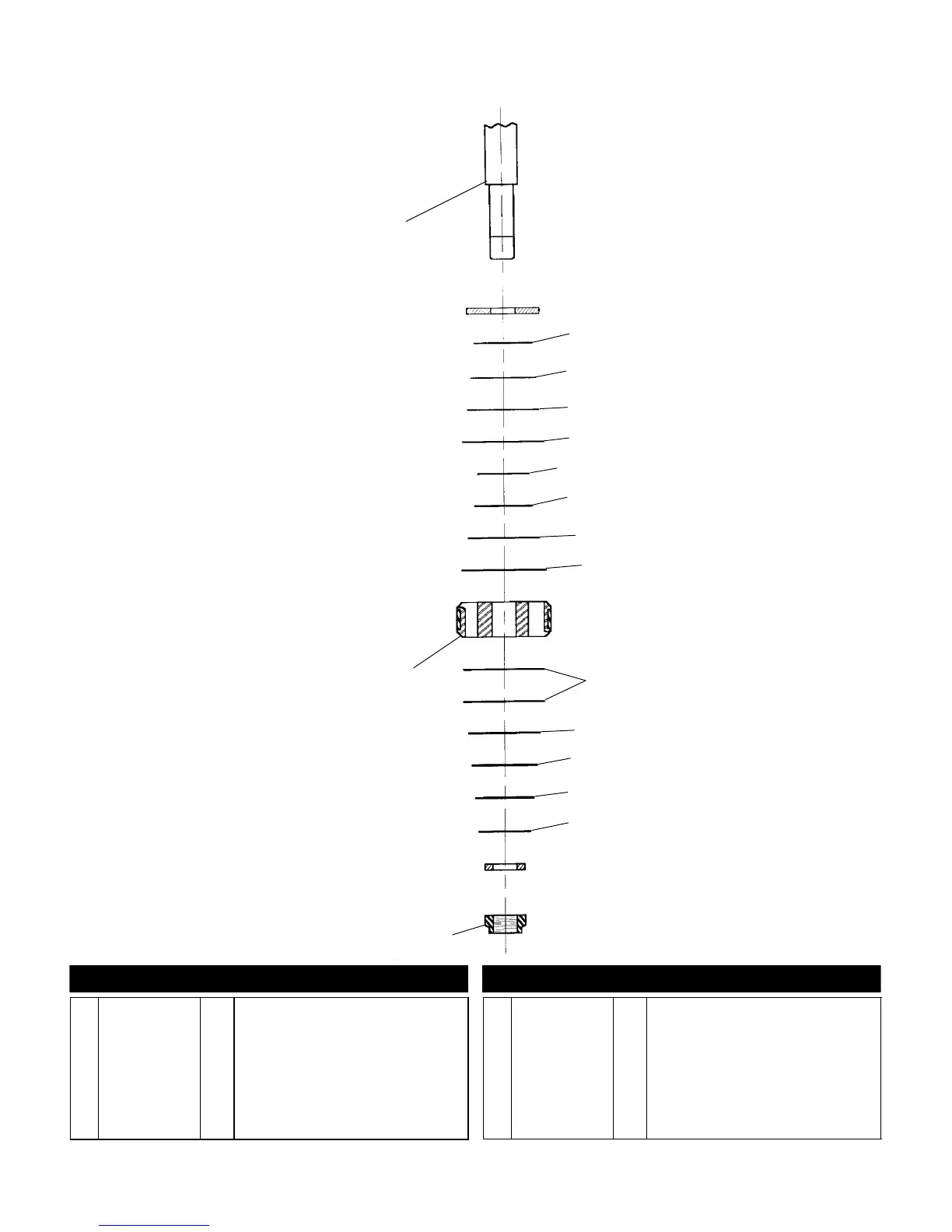

SHOCK VALVING
Scrambler 500 A00BG50AA
8
10
11
9
12
1
2
4
7
6
5
3
Shaft
Piston
Nut
13
Ref. Part No . Qty. Description Ref. Part No. Qty. Description
1 1500033 1 Valve, Shock (.90 x .377 x .008)
2 1500032 1 Valve, Shock (1.0 x .377 x .008)
3 1500031 1 Valve, Shock (1.1 x .377 x .008)
4 1500026 1 Valve, Shock (1.25 x .377 x .010)
5 1500047 1 Valve, Shock (.80 x .377 x .010)
6 1500046 1 Valve, Shock (.90 x .377 x .010)
7 1500049 1 Valve, Shock (1.1 x .377 x .006)
8 1500052 1 Valve, Shock (1.3 x .377 x .006)
9 1500095 2 Valve, Shock (1.25 x .377 x .012)
10 1500060 1 Valve, Shock (1.1 x .377 x .012)
11 1500096 1 Valve, Shock (1.0 x .377 x .015)
12 1500094 1 Valve, Shock (.90 x .377 x .015)
13 1500057 1 Valve, Shock (.80 x .377 x .012)
