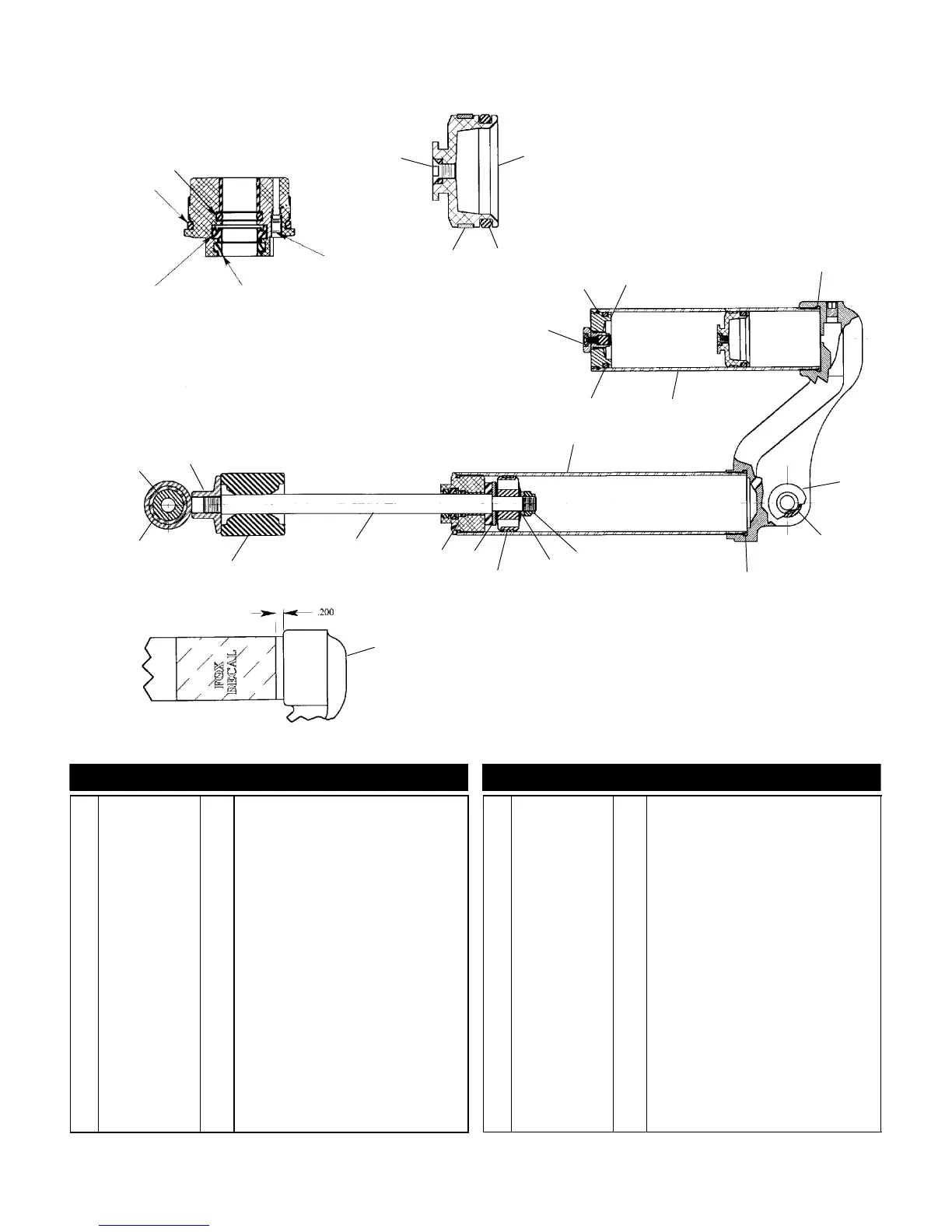

D2
FOX SHOCK, GAS, RESERVOIR
Scrambler 500 A00BG50AA
29
18
17
19
16
26
25
24
23
21
27
12
6
9
7
8
5
2
1
4
3
13
11
10
27
28
20
14
15
22
Ref. Part No. Qty. Description Ref. Part No. Qty. Description
7041867 1 Shock, Gas, Reservoir
1 1500021 1 O-Ring
2 1500020 1 O-Ring
3 1500025 1 Wiper, Inner
4 1500024 1 Wiper, Clear, Outer
5 1500287 1 Asm., Screw
6 1500018
1500023
1
1
Screw
O-Ring
7 1500006 1 Ring, Piston, Floating, Fox
8 1500003 1 O-Ring, Fox End Cap
9 1500011 1 Piston, IFP
10 1500099 1 Asm., Cap, Reservoir, ATV Fox Shock
(Incl. 11,12,13)
11 1500097 1 Retaining Ring, ATV Fox Shock
12 1500072
1500019
1500022
1
1
1
Asm., Air Valve
Screw
O-Ring
13 1500098 1 O-Ring, ATV Fox Shock
14 1500286 1 Asm., Reservoir
15 1500283 1 Body
16 1500013 1 Eyelet
17 1500102 1 Bushing
18 1500103 2 Bushing, Eyelet
19 5410987 1 Bumper, Compression
20 1500284 1 Shaft
21 1500282 1 Asm., Cap-Body, Fox ATV
22 1500285 1 Asm., Bearing
23 1500017 1 Plate, Top-Out
24 1500002 1 Ring, Piston, Fox
25 1500015 1 Bushing, Back-up
26 1500016 1 Nut, Lock
27 1500004 1 O-Ring, Fox
28 5020657 1 Sleeve
29 1500104 2 Bushing, Eyelet
5/99
