Polaris SCRAMBLER 500 2000 User Manual

C3

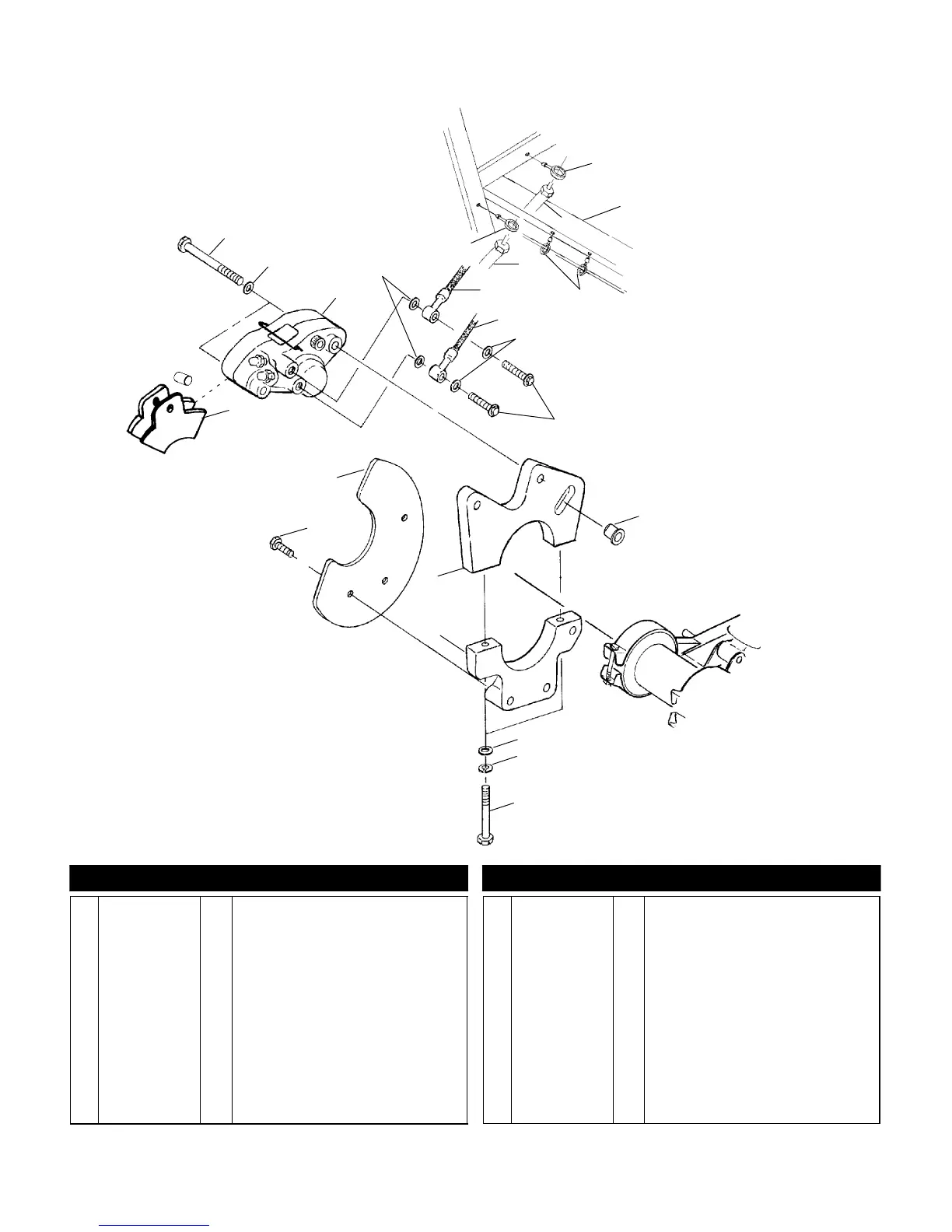

REAR CALIPER MOUNTING
Scrambler 500 A00BG50AA
10
14
15
17
16
13
12
11
1
9
4
3
5
4
18
Frame
8
7
7
5
6
6
2
Ref. Part No . Qty. Description Ref. Part No. Qty. Description
1 7517231 2 Screw
2 7555806 2 Washer, Flat
3 1910367
2201385
2201428
2201467
1
1
2
1
Caliper, Rear
Kit - Caliper Seal
Kit - Bleeder Replacement
Piston, Caliper, Rear
4 5410988 4 Seal
5 1930873 1 Line, Brake, Hand, Rear
6 1910381 1 Line, Brake, Foot, Rear
7 4020139 2 Clip, Rosebud
8 7670102 2 Clip, Silencer Box
9 1930674 3 Bolt, Banjo
10 5131759 1 Bushing, Caliper Mount
11 7558402 2 Washer, Flat
12 7552901 2 Washer, Spring Lock
13 7512312 2 Bolt
14 5131786 1 Mount, Caliper, Lower
15 5131787 1 Mount, Caliper, Upper
16 7512325 3 Bolt
17 5242291-067 1 Guard, Brake Disc
18 2201189
1910339
1930860
1
1
1
Kit - Brake Pad (Incl. Spacer and Pin)
Spacer
Pin
9/02
