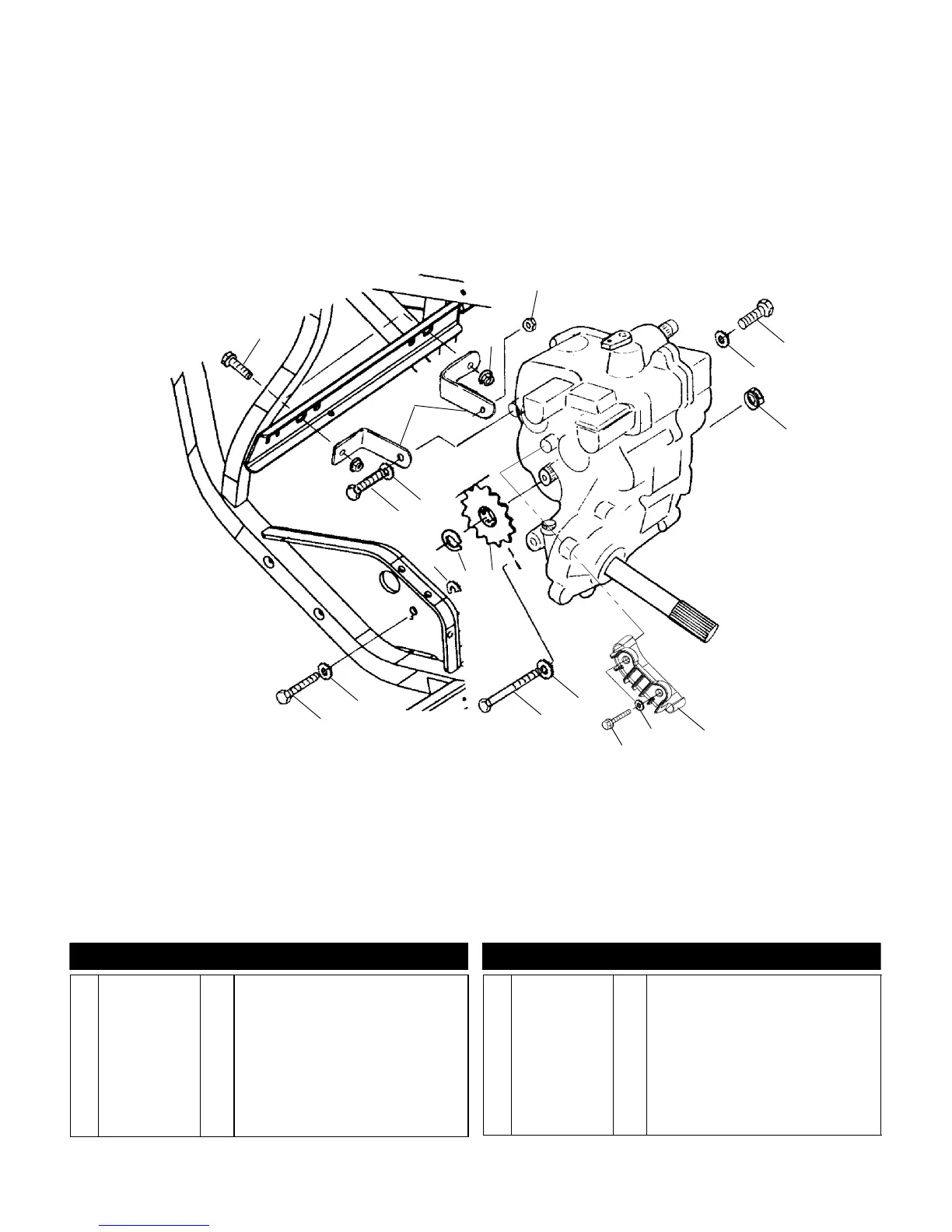

GEARCASE MOUNTING
Scrambler 500 A00BG50AA
1
2
9
11
10
4
3
4
3
13
3
8
8
12
5
7
8
8
6
Ref. Part No . Qty. Description Ref. Part No. Qty. Description
1 7517632 2 Screw
2 5242456-067 2 Br acket, Transmission
3 7542423 4 Nut, Flange
4 7512492 2 Screw
5 5433109 1 Guide, Chain, Transmission
6 7558301 2 Washer, Flat
7 7512276 2 Screw
8 7555806 4 Washer, Flat
9 7517646 1 Screw
10 3221041 1 Sprocket, 13T
11 7710434 1 Ring, Retaining
12 5211065
5210764
5211517
AR
AR
AR
Shim (.010”)
Shim (.020”)
Shim (.030”)
13 7517640 1 Screw
5/99
